DFC-10 rechargeable police security led flashlight camera/DVR flashlight
-
Model Number: DFC-10
Light Source: LED
LED Light Source: cree
Power Source: Rechargeable Battery
Lighting Period (h):8
Certification: CE
IP Rating: IP66
Lamp Body Material:Aluminum Alloy
Warranty(Year): 1
sensor: CMOS
View Angel: 100 degree
Camera pixel: 5million

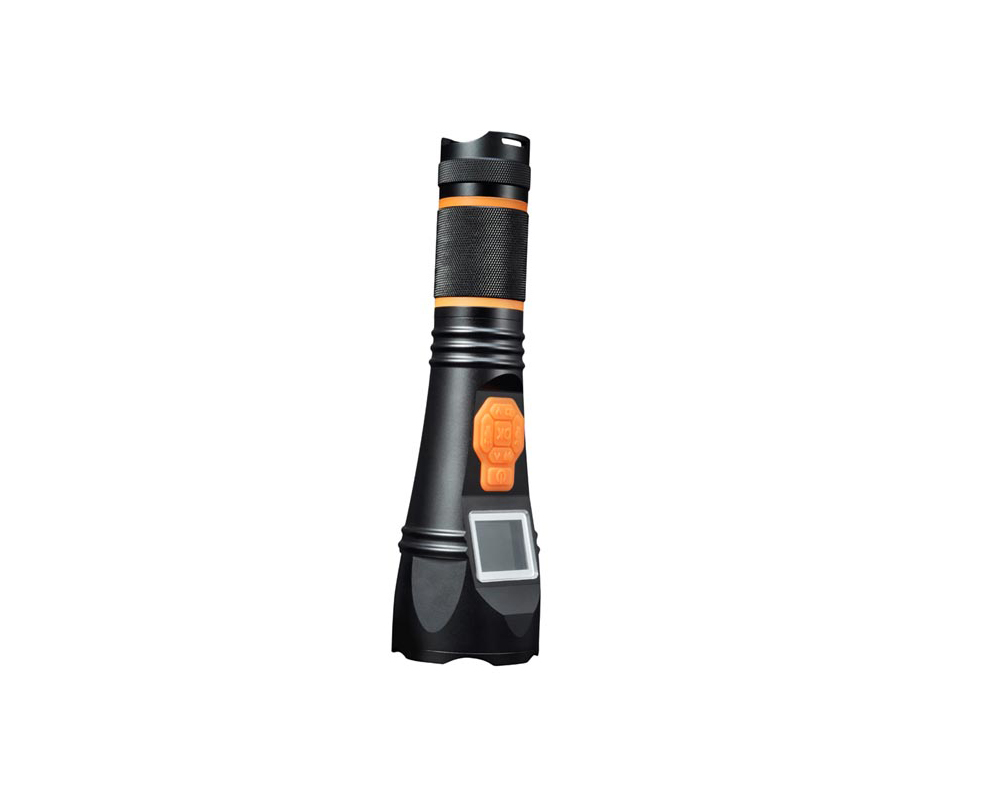

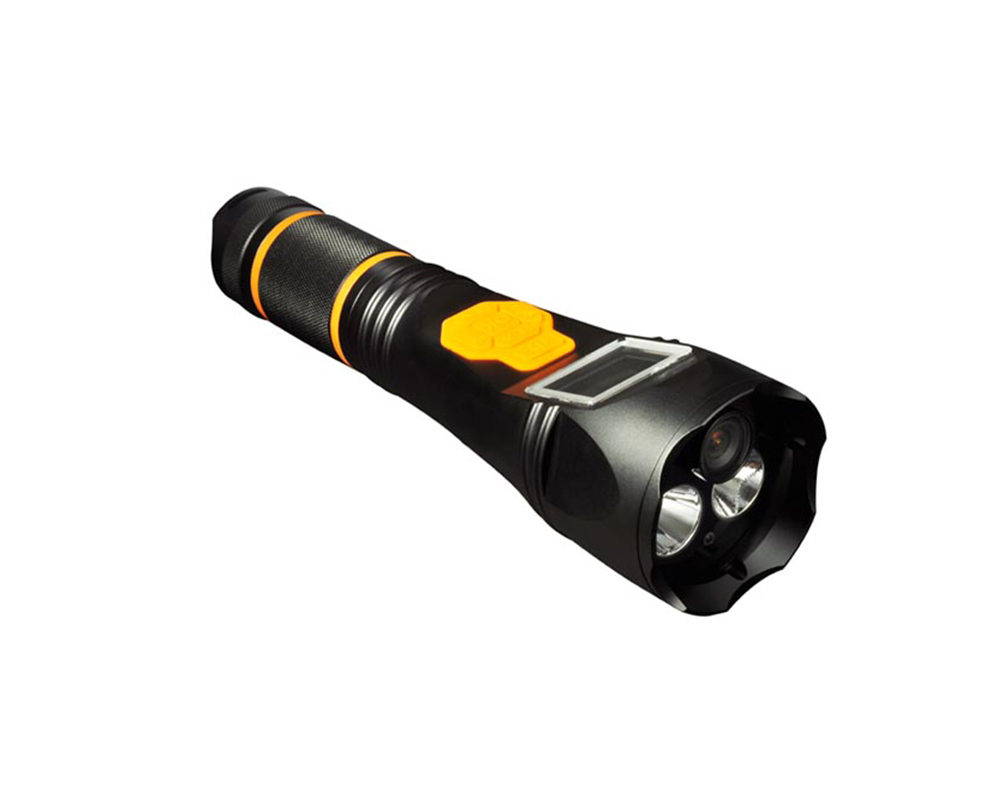

DFC-10 rechargeable police security led flashlight camera/DVR flashlight
Main Features of rechargeable police security led flashlight camera/DVR flashlight
Aircraft grade aluminum body with hard anodized finish,
water resistant and shock resistant
Li-ion battery, self-protection from over
charge and over discharge
Integrated CMOS video camera
DVR flashlight with display screen
Spotlight and floodlight for lighting, or
lighting conditions for high quality pictures and video
Independent video, taking photos and lighting
On/Off switch
Big storage capacity for video and photos
Downloads directly to your computer via USB
cable (included) or copy it from TF card directly
Specification of rechargeable police security led flashlight camera/DVR flashlight
|
No. |
item |
parameter |
unit |
|
|
1 |
Rated voltage |
3.7 |
V |
|
|
2 |
Reted capacity |
2.2 |
Ah |
|
|
3
|
Light source (LED) |
Rated power |
2 / 1 |
W |
|
Lifetime |
100.000 |
h |
||
|
Color temp |
5500 |
K |
||
|
4 |
LED Continuous working time |
≥6.5 |
h |
|
|
5 |
Charging time |
≤7 |
||
|
6 |
camera working time |
With strong light |
≥2.5 |
|
|
No turn on light |
≥4 |
|||
|
7 |
View Angel |
87 |
degree |
|
|
8 |
Camera pixel |
5 |
million |
|
|
9 |
Photo resolution |
4000×3000(1200W)/3200×2400(800W)/ 2592×1944(500W)/2048×1536(300W)(Four choices) |
||
|
10 |
video resolution |
1920x1080, 1280x720, 840 x 480 (alternative) |
||
|
11 |
Storage Medium |
4/ 8/ 16/ 32 |
G |
|
|
12 |
Audio/video size |
35-100 |
MB/ minute |
|
|
13 |
Video format |
MP4 |
||
|
14 |
Battery circular life |
1000 |
circle |
|
|
15 |
Product Dimension |
Φ65×230 |
mm |
|
|
16 |
Weight(About) |
490 |
g |
|
|
17 |
Operating Temperature |
-10~+40 |
degree |
|
|
18 |
OperationHumidity |
15~85% |
RH |
|
|
19 |
IP Grade |
IP66
|
||
Application of rechargeable police security led flashlight camera/DVR flashlight
This flashlight is widely used for fire, exploration,
police, electrical power grid, oil,
petrochemical, chemical industry, railway,
tourism, etc. It can be used as flashlight, and can
also take pictures or video image real-time
voice on different occasions.
Detail features of rechargeable police security led flashlight camera/DVR flashlight
Use Environment :
1). Temperature of Environment: -10℃~+40℃.
2). Relative humidity: 15~85%RH.
Battery:
1) Charge method:
1. twist the end cover.
2. The USB interface of the USB cable is
connected with the electric connection, end is connected with an USB interface
adapter, adapter is connected to an external power supply. Charge about 6 hours
can be full, pull off the adapter, and then screw off the electric tail cover.
2) Battery installation:
1. screw start electric tail cover, through
the battery fixing plate.
2. the configuration of the lithium battery into
the handle (no positive or negative).
3. press, the battery is fixed, and can be
twisted to use the end cover.

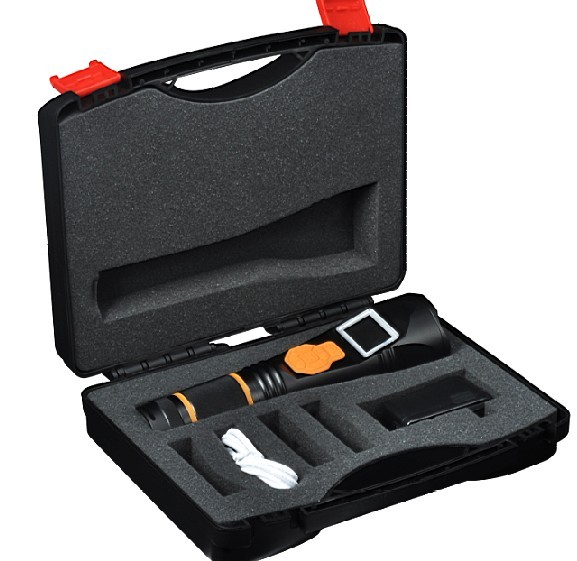

Packing list:
Multi-function camera flashlight
+Adapter+Li-ion battery+USB line+hang rope

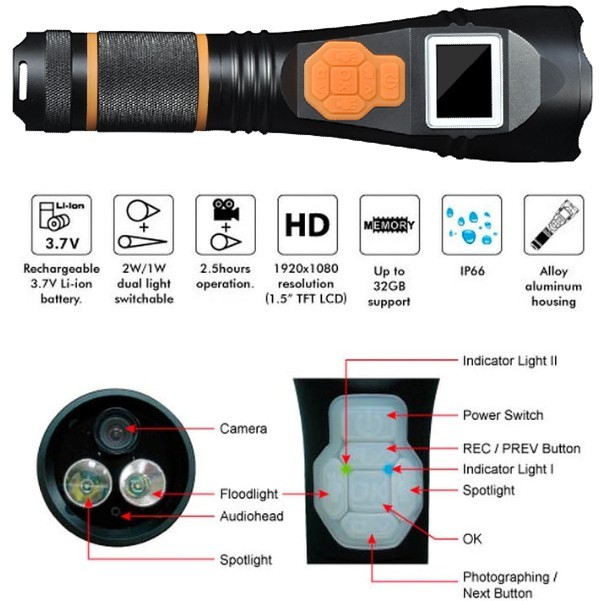

Operation instructions:
(1) Switch
Boot:Press 2 seconds after the start button to start,
enter the standby mode, display the boot screen, At this point the light 1
light (blue).
Shutdown: after starting, press the power
button for 2 seconds to make the system shut down.
(2) Usage Guide
Taking video:
If you want to take videos, pressing the power bottom for
2 seconds to switch on the power, then press the DV button.The indicator light
2 is flashing green when the camera is
working, please press it again if you want to
finish taking video.Then you can press it for 2 seconds to watch the video you
took.
Taking
photo:
If you want to take photos, pressing the
power bottom for 2 seconds to switch on the power, then press the photograph
button, the indicator light 1 is green which means the photo is took and saved.
Then you can press it for 2 seconds to see the photo you took.
Pixel settings:
Press the OK button for 2 seconds to enter
the menu mode, then you can set the photo and video pixels. Press it again to
exit the menu mode.
Flood light:
Floodlight control button, press this button
on the left side of the pan - light, and then press it off.
spotlight:
Press on the control button, press this key
to the right side of the spotlight, and then click the lamp off.
