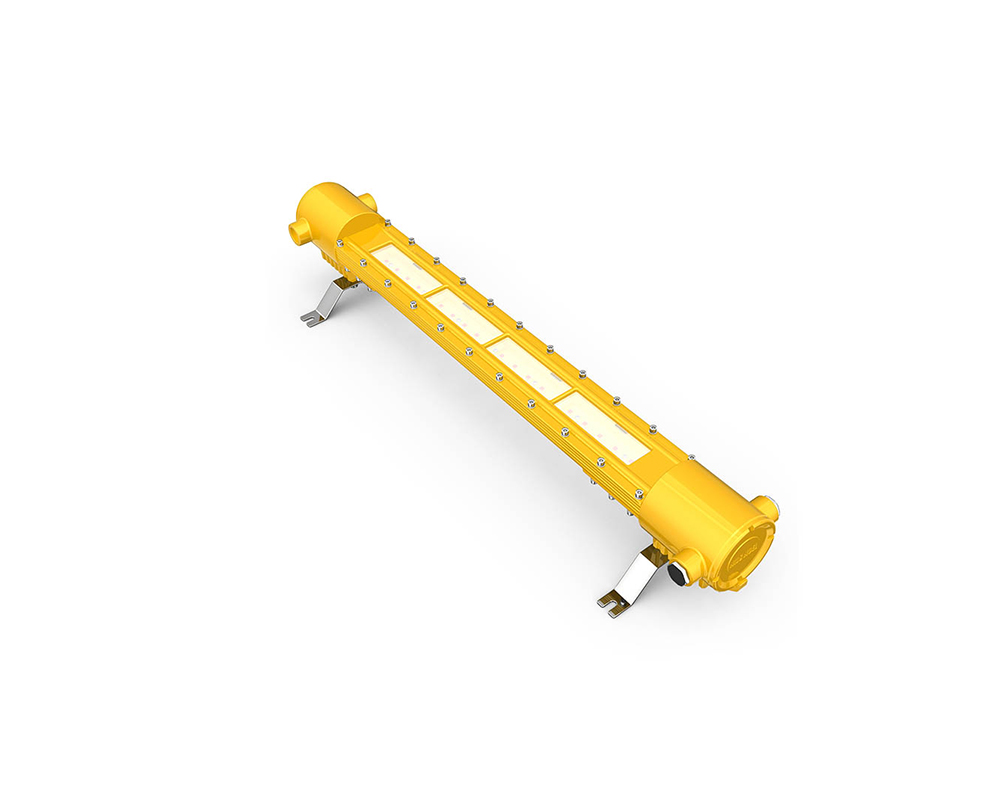

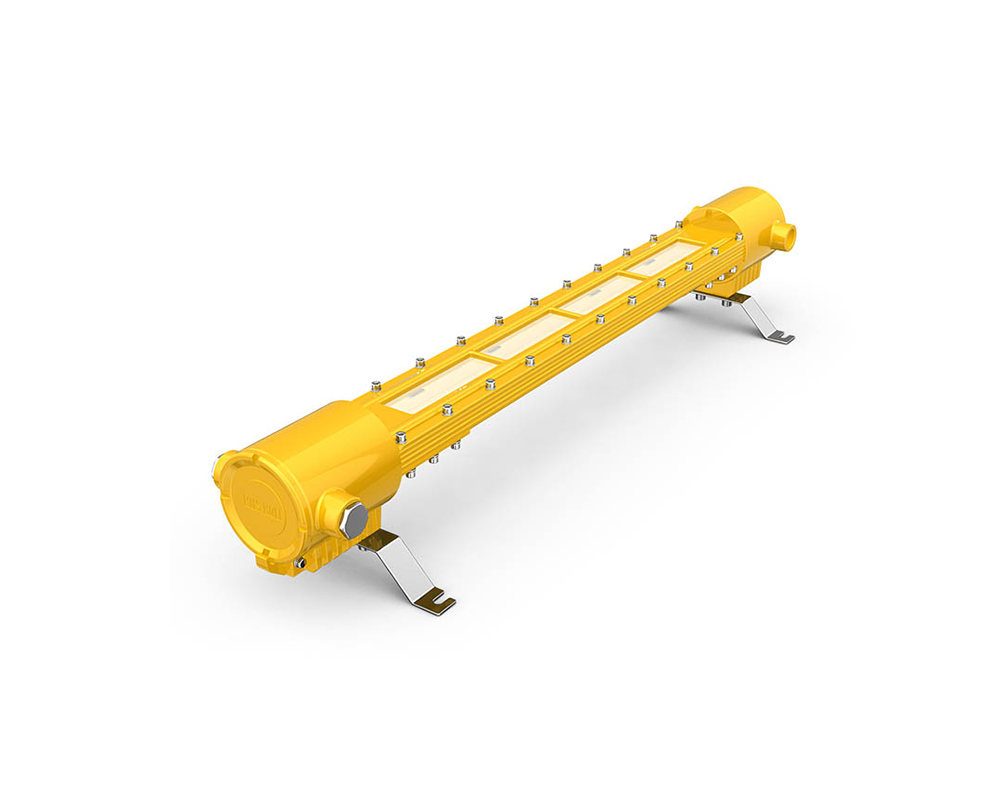

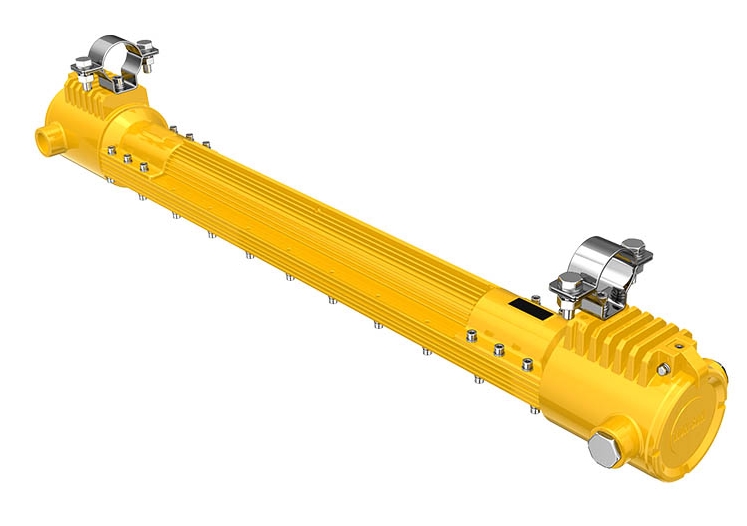

DL618A 40w led explosion proof lamp/gas station light/hazardous area lighting

DL618A 40w led explosion proof lamp/gas station light/hazardous area lighting

Model Number: DL618A
LED Light Source: CREE
Input Voltage(V): AC85-265V
Lamp Power(W): 40
Lamp Luminous Flux(lm): 5400
CRI (Ra>): 70
Working Temperature(℃):-30 - 50
Working Lifetime(Hour): 50000
IP Rating: IP66
Ex mark: Exd IIB+H2 T5 Gb
light source: Cree xm-L led
beam angle: 160
Housing: aluminium alloy
Certificatiion: ATEX,CE,ROHS

DL618A 40w led explosion proof lamp/gas station light/hazardous area lighting



40w explosion proof lamp is special designed to replace traditional fluorescent tube

DL618 LED Explosion Proof lamp is applicable for zone I and zone II , or gas area, restricted area or heavy industrial processing equipment area, drilling platform and other coastal or offshore dangerous areas, Such as port, ship, oil, petrochemical, oil depot, and it’s designed and manufactured according to requirements of EN60079-0: 2009, EN60079-1: 2007, EN60079-31: 2009, IEC60079-0: 2007, IEC60079-1: 2007, IEC60079 31: 2008. The Ex marking is Ex d B+H2 T5 Gb / Ex tD 21 T95



This explosion proof lamp is special designed to replace traditional fluorescent tube.It has longer lifetime,don\'t need to replace tube. It can not only save energy,but also save a lot of maintenance costs.More economic and environmental .

Models available:

DL618A: 40 watt

DL618B: 80 watt

DL618E: 40 watt with emergency function

Brief information:

1.product model:DL618A

2.power:40w

3. Initial Luminous Flux: 5400 lumens

4.housing material:die-cast alluminium alloy with toughened glass

5.lifetime:>50000h

6.Ex mark: Ex d II B + H2 T5 Gb

7.light source:cree LED

8. warranty:1year



Technical parameter

Items

Unit Value

Light

Source

LED

CREE XT-E/ CREE XM-L

Luminous Flux

5400 lumens

Color Temperature

5700-6000K

Color Rendering Index

Ra>70

power

40 watt

Input Voltage

AC 110-277V

Housing Material

Die cast aluminum housing with tempered glass

Dimension

ø90X800 mm

Weight

8 kg

Working Temperature

-30°C - 50°C

Beam angle

160°

Corrosion protection Classification

WF2

IP Classification

IP66

EX Mark

Ex d B+H2 T5 Gb / Ex tD 21 T95

Total harmonic current

<15%

Factor

>0.90

Mounting Angle

360°

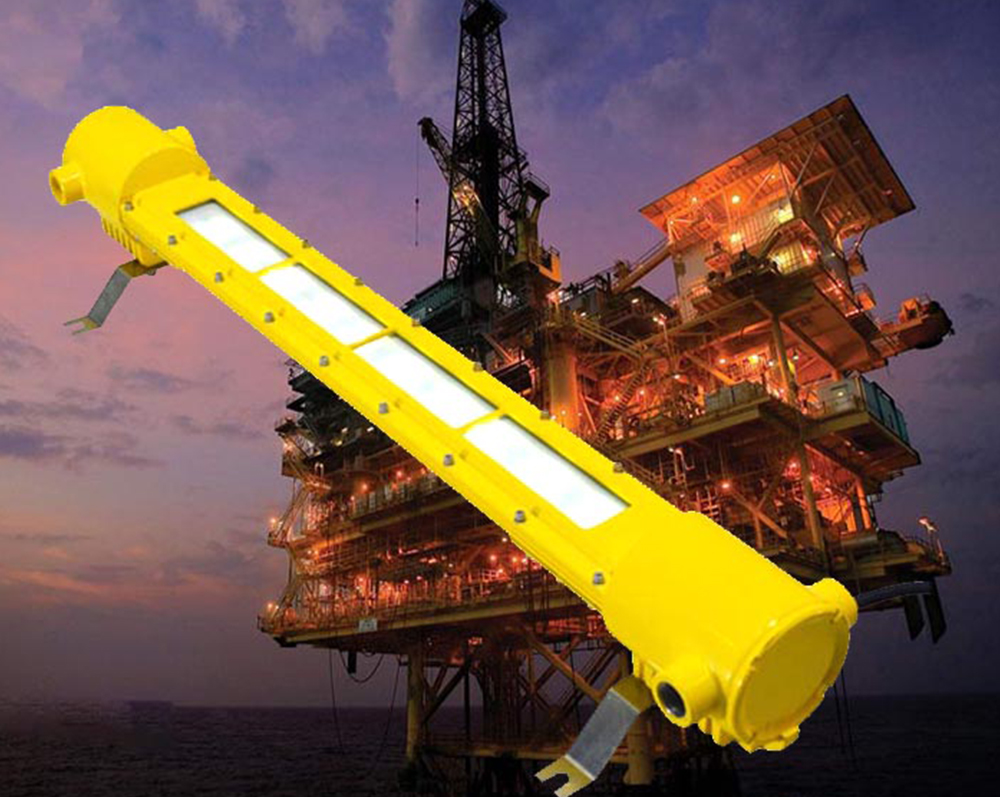

Application of 40w led explosion proof lamp/gas station light/hazardous area lighting

1. offshore platform, chemical plant,oil store,gas station,drilling rig area.

2. restricted district,heavy industry machining equipment area,offing area.

3. refinery,dangerous seacoast,fammable and explosion zone II.

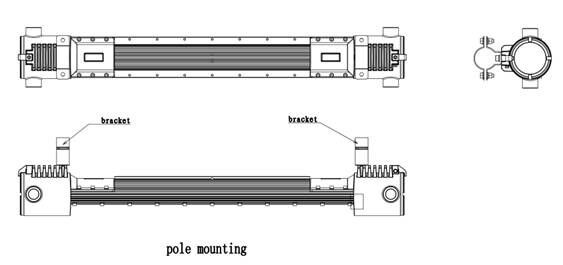

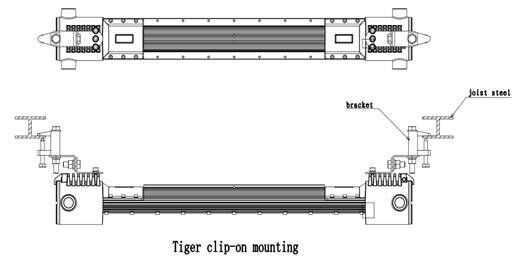

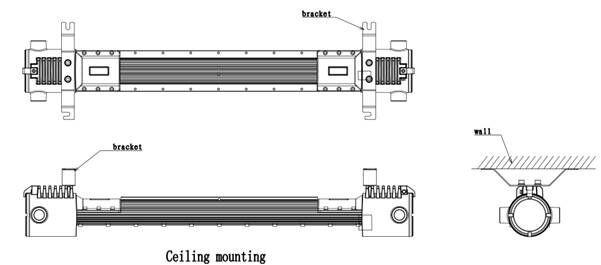

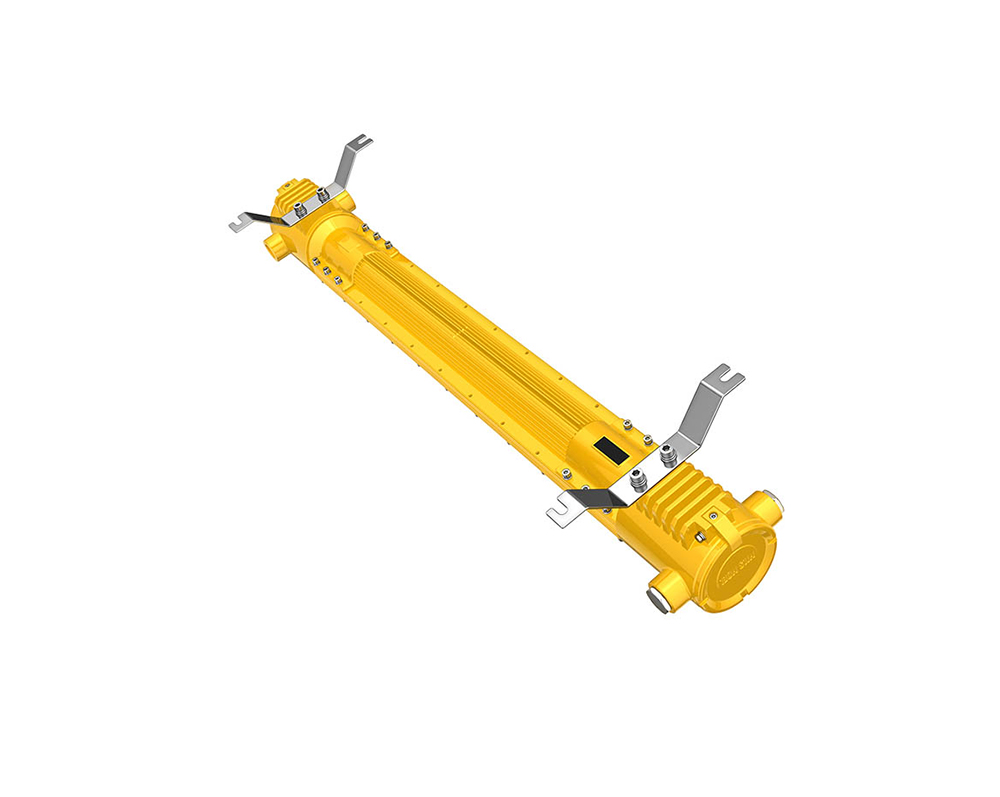

Installation Instruction:

 40w led explosion proof lamp/gas station light/hazardous area lighting led explosion proof lampDL618A安装3 40w led explosion proof lamp/gas station light/hazardous area lighting

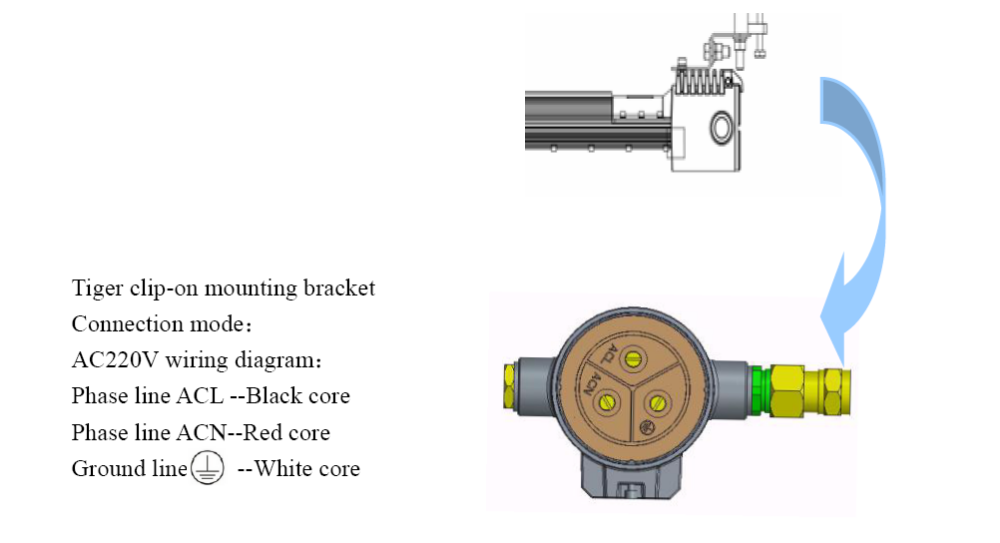

Please access the cable with power, pay attention to lamps to safety ground , and operate the light in right way.

Dimension and Package (unit: mm):

1) DL618 dimension: 910*151*117(figure 1)

2) Package size: 960*225*210 (figure 2)



Application of 40w led explosion proof lamp/gas station light/hazardous area lighting :



 40w led explosion proof lamp/gas station light/hazardous area lighting
