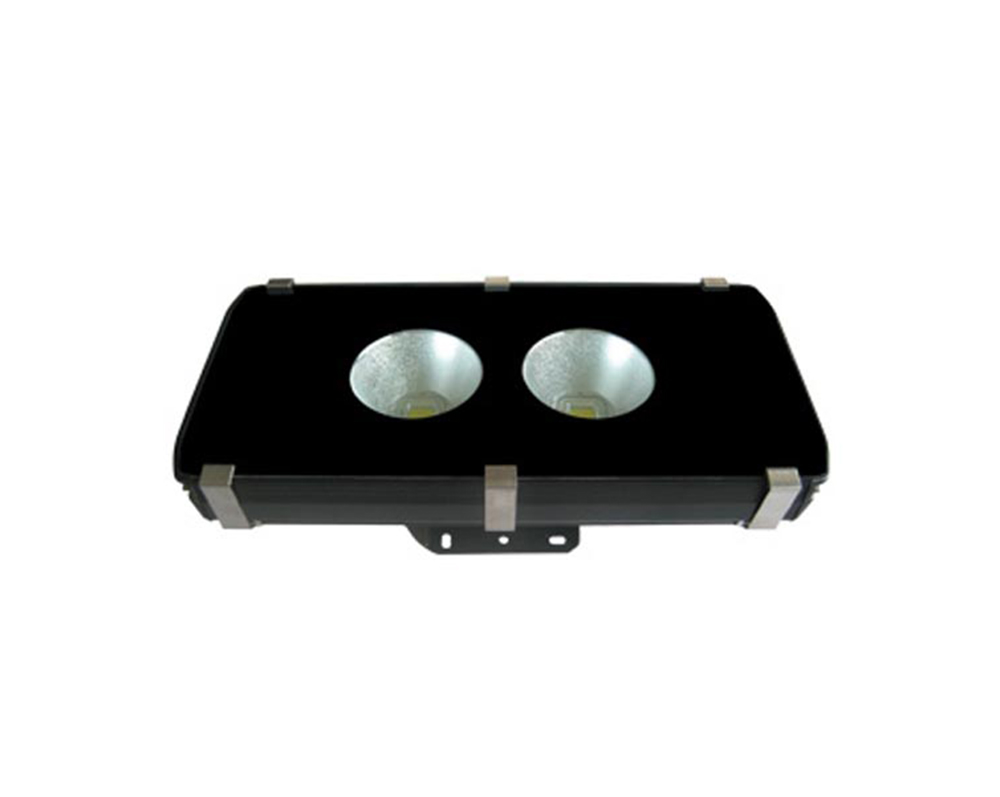

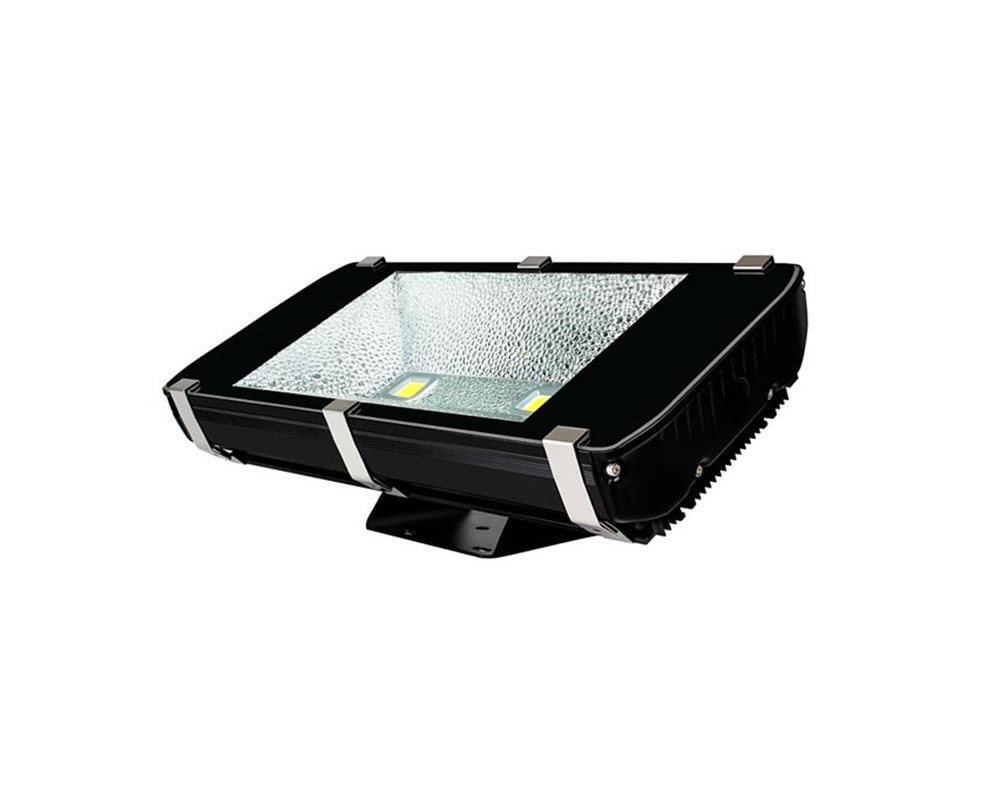

SPC120H2-120W energy-saving 120w waterproof led tunnel lights
-
Model Number: SPC120H2-120W
Light Source: LED
Item Type: Tunnel Lights
LED Light Source:Bridgelux
Input Voltage(V):AC85-265V
Lamp Power(W): 120
Lamp Luminous Flux(lm): 120000
Lamp Luminous Efficiency(lm/w): 100
CRI (Ra>): 80
Working Lifetime(Hour): 50000
IP Rating: IP65
Certification: CE, ETL, RoHS, SAA, UL
Warranty(Year): 3
LED driver:Meanwell
beam angle:50 and 120 degree
CCT: CW,DW,NW,WW
high power energy-saving 120w waterproof led tunnel lights
Product Description
Advantages of 120w waterproof led tunnel lights
1. Adopt high light efficiency light source, >100lm/W
2. Stable and low decay.
3. The Tj for LED is less than 85°C;
4. Lifespan up to 50000hrs.
5. Energy saving, excellent heat disspation.
6. ECO-friendly, mercury free, lead free.
7. Low maintenance and replacement costs;
8. Fixture surface with anti-static spray, improved
resistance to acid, anticorrosive.
9. PF > 0.95.
Specifications of 120w waterproof led tunnel lights
Model
LED Type
LED Q'ty
(pcs)
Color
Voltage
Beam Angle
Wattage
Lumen (lm)
CRI (Ra)
PF
IP factor
SPC120H2-120W
COB
2
CW
AC85-265V
120°
100W±10%
10365±15%
70-80
≥0.95
IP65
SPC120H2-120W
COB
2
DW
AC85-265V
120°
100W±10%
10000±15%
70-80
≥0.95
IP65
SPC120H2-120W
COB
2
NW
AC85-265V
120°
100W±10%
9500±15%
70-80
≥0.95
IP65
SPC120H2-120W
COB
2
WW
AC85-265V
120°
100W±10%
8988±15%
70-80
≥0.95
IP65
Remarks:
1.
Available color temperature CCT: CW:5500-6500K, DW:4700-5300K, NW:4000-4500K,
WW:3000-3500K.
2.
Lumen is based on the condition of Ta<25℃ with a tolerance of ±15 %.
|

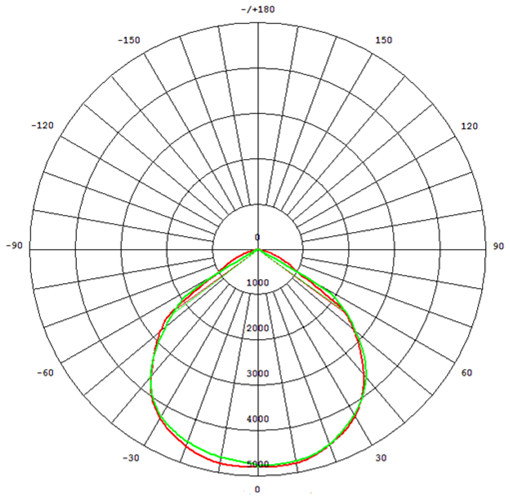

Lighting distribution Curve: |
Application of high power energy-saving120w waterproof led tunnel lights
1. Indoor & outdoor project lighting;
2. Suitable for workshop, factory, warehouse, toll station, gas station, supermarkets, exhibition center, stadium and other places.
Packaging & Shipping
1. Net weight:11.95 kgs
2. Outer carton size:670x360x275mm
3. Q'ty per ctn:1 pcs
4. G.W per ctn:13.23 kgs
Our Services
Replying your inquiry within 24 hours
Consultation from professional and experienced staff
Providing 1-3 years warranty
Solid pakage & fast delivery & newly tracking mews
OEM is welcome. Providing customized service.

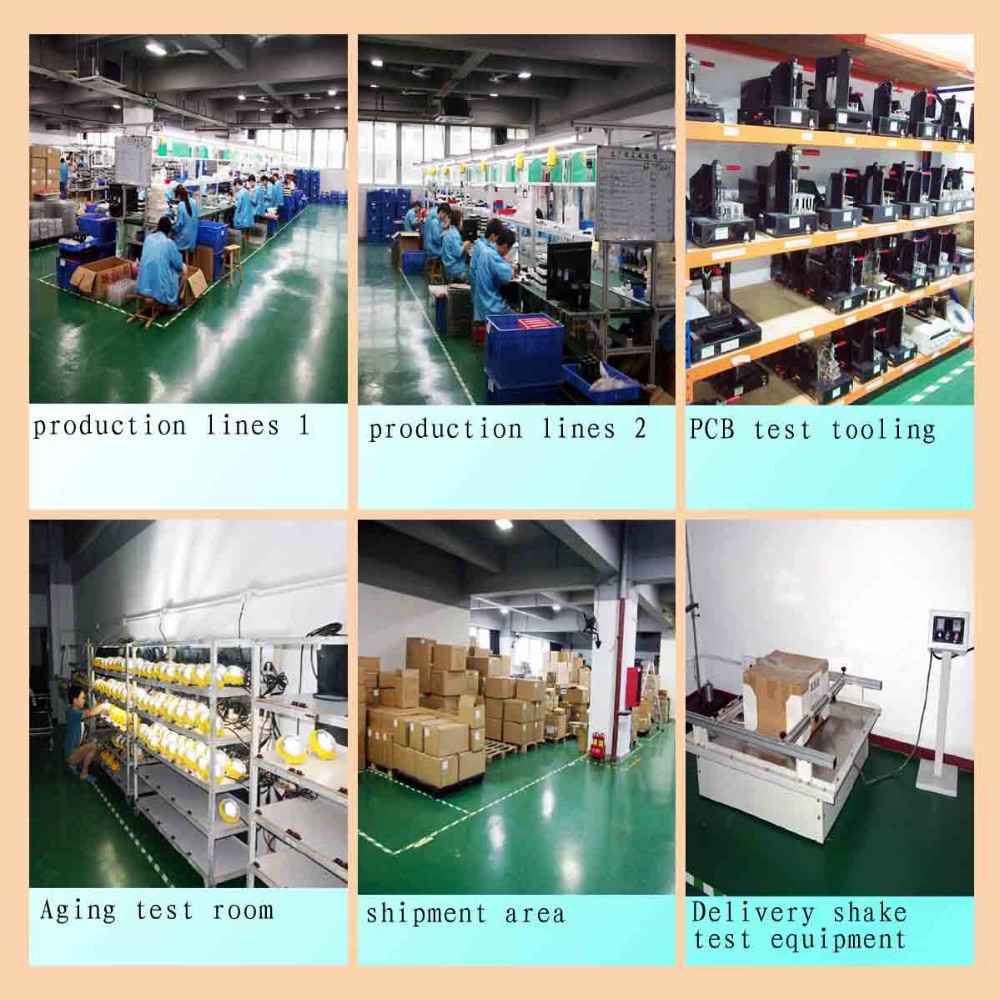

Company Information
Golden Future Enterprise HK LTD. is a specialist on the design and selling of LED industry lighting for more than 10 years,especially for miner lamp, explosion proof lighting fixture, led street light and other led commercial lightings,and etc.
Besides the led application products, our factory also can do some OEM products, such as making moylds, plastic injections, CNC aluminum parts or copper parts.
Please do not hesitaye to contact us if you need led application products or need to develop new products.
FAQ
Q: 1. What is the lead time?
A:Sample needs 7-10days, mass production time needs 25-30days.
Q: 2. Do you have any MOQ limit?
A: Our MOQ EXW is 1 pc for sample; MOQ FOB is 200pcs.(Depends on different type battery/battery pack)
Q: 3. How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive.
Q: 4. How to proceed the order when customer order products?
A: Inquiry-Confirmation-Send Proforma Invoice-Customer make payment-Arrange production-ship the goods to customers-Confirmation-Finish.
Q: 5. How to make this payment?
A: TT, Paypal, Western Union.
Q: 6. Do you offer guarantee for the products?
A: Yes, we offer one year guarantee for the products.
Q: 7. Do you accept OEM/ODM?
A: Yes, it’s available
