DL601F explosion proof safety led loading dock light/flame proof lamp/led marine dock light
-
Model Number: DL601F
LED Light Source: CREE
Input Voltage(V): AC85-265V
Lamp Power(W): 25
Lamp Luminous Flux(lm):3400Working Lifetime(Hour): 50000
IP Rating: IP67
Ex mark: Exd IIC T6
beam angle: 60 or 120
Housing: aluminium alloy
Certificatiion: UL,CE,ROHS
DL601F explosion proof safety led loading dock light/flame proof lamp/led marine dock light
Product Description
Specification of explosion proof safety led loading dock light :
1. Housing Construction
Die cast aluminum housing with super corrusion-proof Polyester coated
2.
Light Source
Cree LED
50,000 hours average rated life
60 ° or 120° beam angle
3. Lens
Heat-treated glass (GL)
Impact-resistant clear polycarbonate (CP)
Impact-resistant diffuse polycarbonate (OP)
4. Compliances
Watt: 25W
IP class: IP67
Ex-mark: Exd IIC T6
Lumens :2500lumens
|
Items |
Unit |
Value |
|
|
Luminary |
LED Power |
W |
25 |
|
Luminous Flux |
lumens |
2500 |
|
|
Life span |
H |
100, 000 |
|
|
Rated Voltage |
V |
AC 85~265 |
|
|
DC 24-36 |
|||
|
Dimension |
cm |
16×8.5 |
|
|
unit Weight |
kg |
2.26 |
|
|
Connecting wire |
mm |
6~8 |
|
|
Inlet’s thread |
G3/4 |
||
|
Corrosion protection Classification |
WF2 |
||
|
Insulation Classification |
I |
||
|
IP Classification |
Ip67 |
||
|
EX Mark |
Exd IIC T6 |
||
|
Certificate of Conformity Serial No. |
CNEx07.1999 |
||
|
Housing |
Low-copper content aluminum housing |
||
|
Full set |
lamp+wire+gift box |
||
Application of explosion proof safety led loading dock light/flame proof lamp:
dock,oil plant,offshore oil plant,chemical plant,flammable and explosion zone II ,restriced distric and heavy industry machining equipment distric,oil store and gas station,drilling rig area and the other dangerous seacoast.

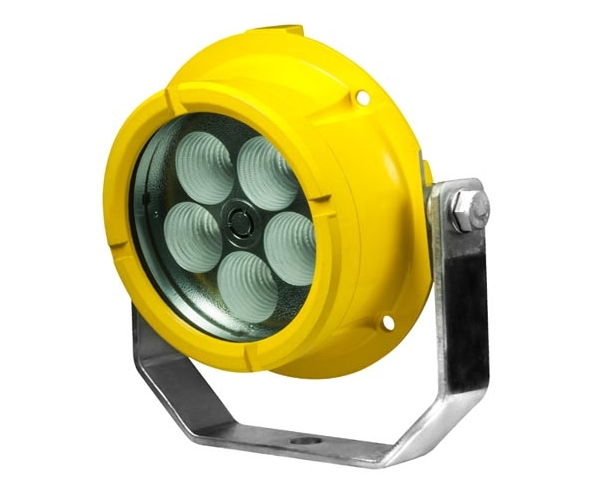

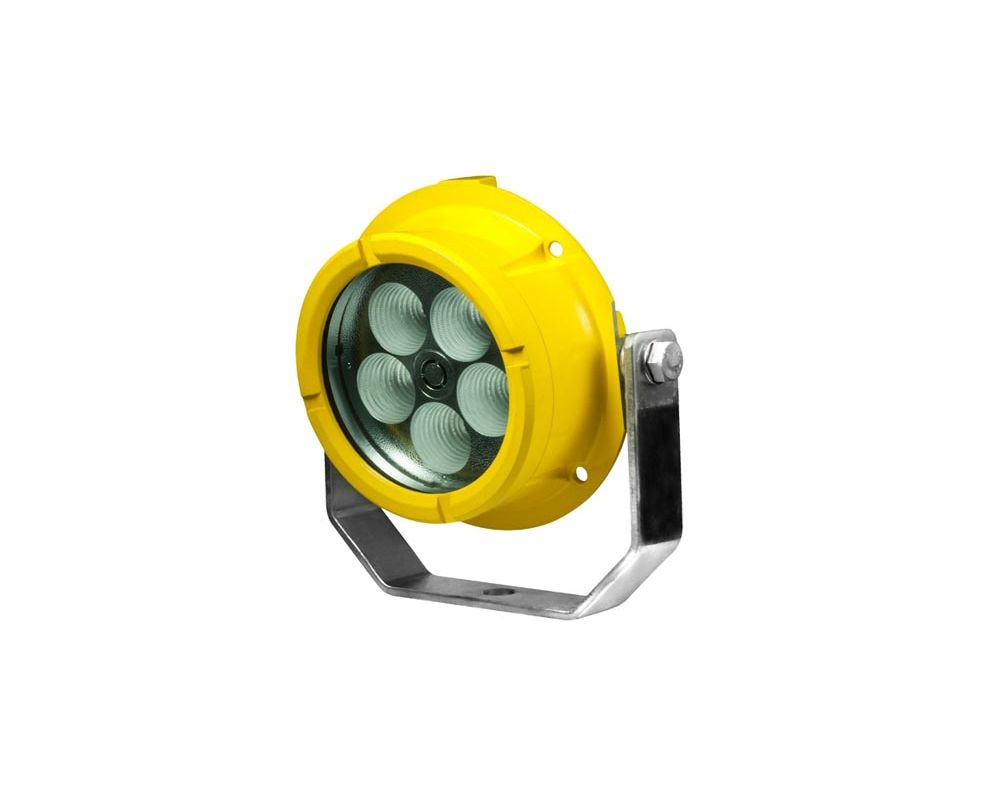

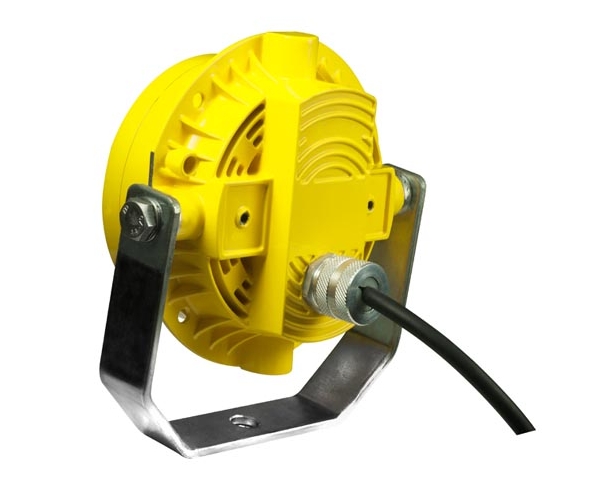

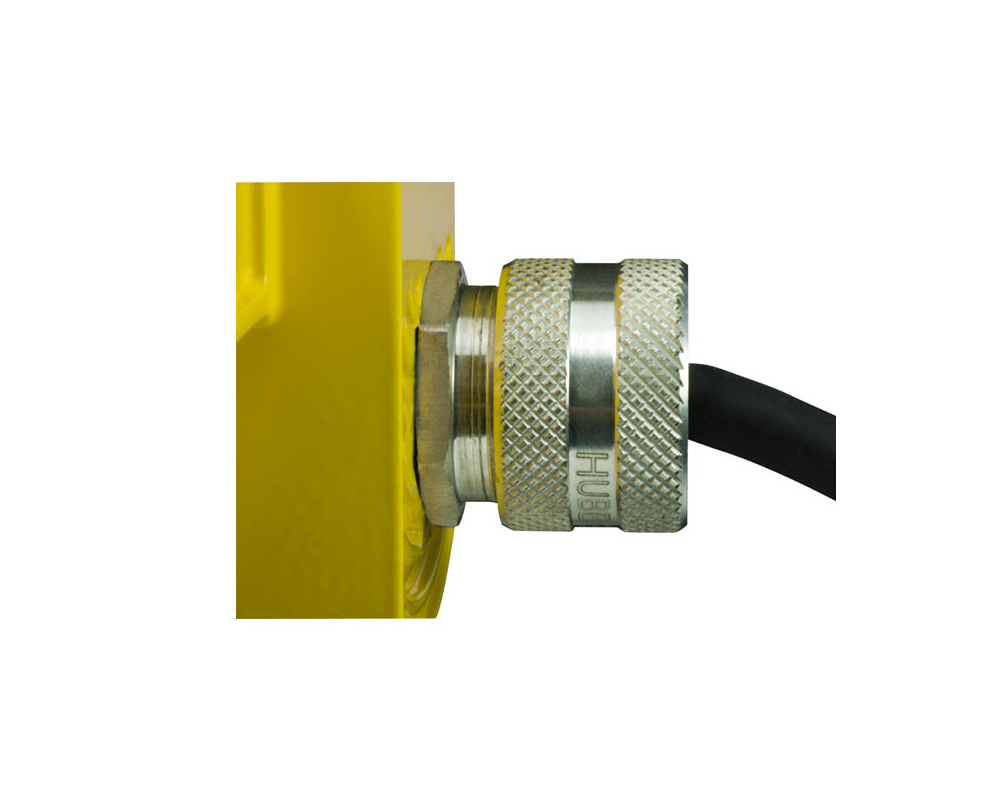

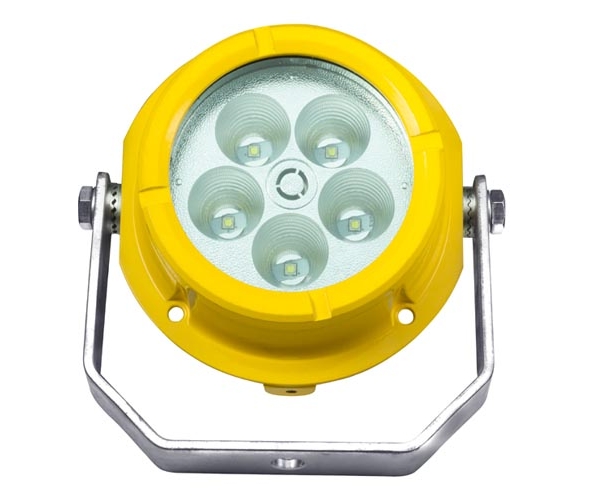

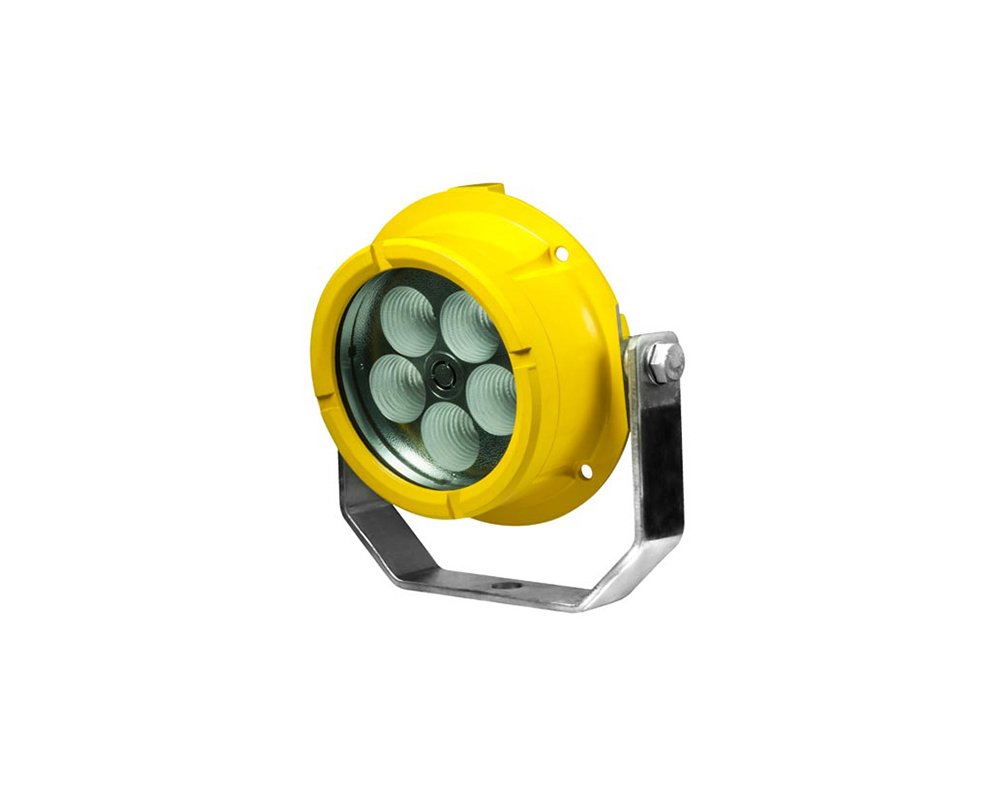

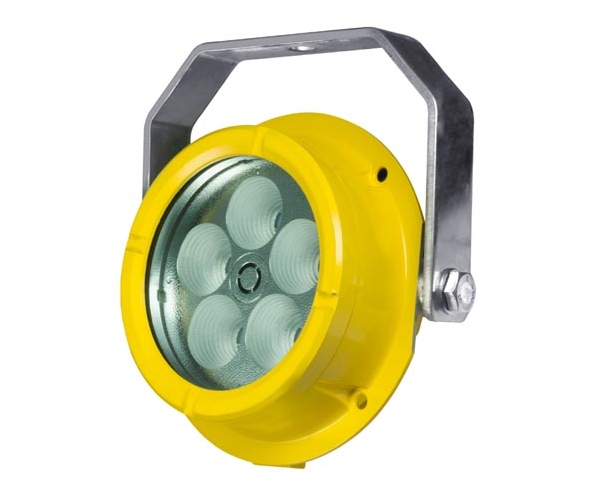

Product show:
Our Services
Being focused on LED products, provide good quality, quick delivery, AQ discount for all customers.
1. For all your inquires, we will reply you in detail within 24 hours.
2. OEM/ODM services. Print your own logo on product, can customize retail box packing and other things.
3. We have sales who have engage in LED many years to provide custom-made the sales solution.
4. We have engineers who has the experience of projects to solve the problems of technical.
5. We have very experienced R&D engineers and we have strong ability to do ODM projects.
Looking forward to cooperating with you.
FAQ
Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and
check quality. Mixed samples are acceptable.
Q: 2. What is the lead time?
A:Sample needs 7-10days, mass production time
needs 25-30days.
Q: 3. Do you have any MOQ limit?
A: Our MOQ EXW is 1 pc for sample; MOQ FOB is
200pcs.(Depends on different type battery/battery pack)
Q: 4. How do you ship the goods and how long
does it take arrive?
A: We usually ship by DHL, UPS, FedEx or TNT.
It usually takes 5-7 days to arrive.
Q: 5. How to proceed the order when customer
order products?
A: Inquiry-Confirmation-Send Proforma
Invoice-Customer make payment-Arrange production-ship the goods to
customers-Confirmation-Finish.
Q: 6. How to make this payment?
A: TT, Paypal, Western Union.
Q: 7. Do you offer guarantee for the
products?
A: Yes, we offer one year guarantee for the
products.
Q: 8. Do you accept OEM/ODM?
A: Yes, it’s available.

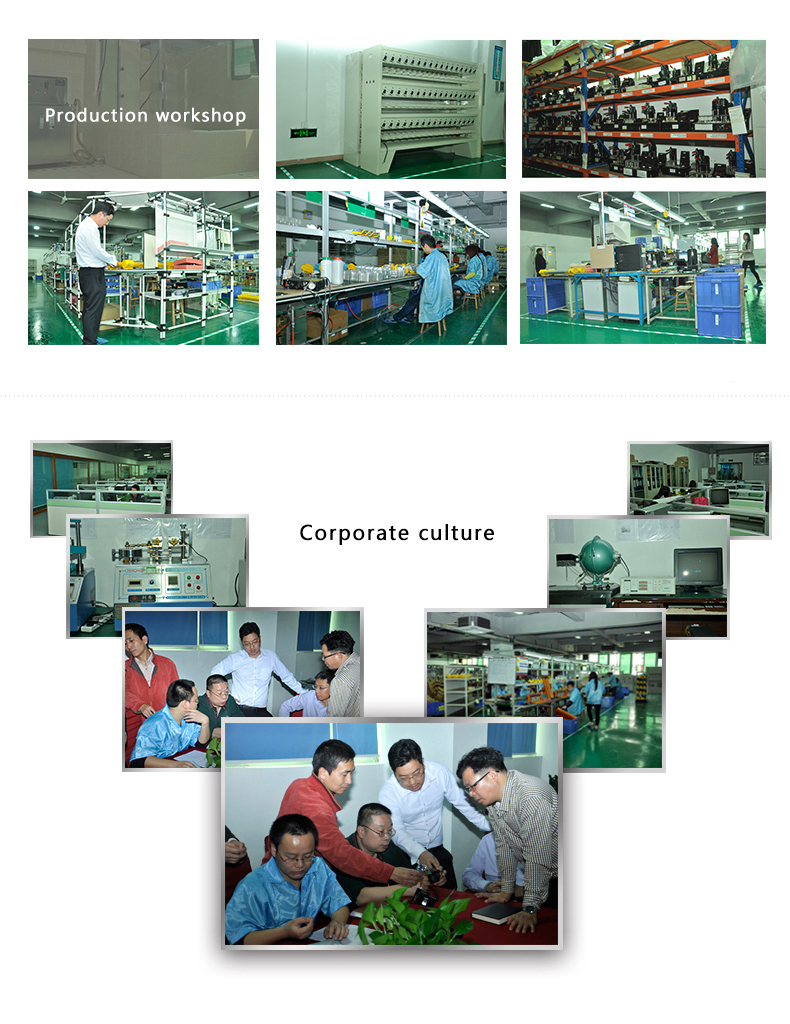

WORK SHOP
