DL607 60w safety led explosion proof lights/hazardous area light

DL607 60w safety led explosion proof lights/hazardous area light

Model Number: DL607
LED Light Source: CREE
Input Voltage(V): AC85-265V
Lamp Power(W): 60
Lamp Luminous Flux(lm): 6000
CRI (Ra>): 70
Working Temperature(℃):-30 - 50
Working Lifetime(Hour): 50000
IP Rating: IP66
Ex mark: Exd IIc T5 Gb
light source: Cree xm-L led
beam angle: 120
Housing: aluminium alloy
Certificatiion: ATEX,CE,ROHS

DL607 60w safety led explosion proof lights/hazardous area light



Product Description



Specification :

1. Housing Construction

aluminium alloy ,Safety yellow powder coat

Bracket: 304 stainless steel

Surface treatment: corrosion proof powder coated



2. Light Source
Cree XML LED
50,000 hours average rated life
120 °
beam angle



3. Lens
Heat-treated glass (GL)


Impact-resistant diffuse polycarbonate (OP)



4. Compliances

Watt: 60W
IP class: IP66

Ex-mark: ExdCT6 Gb



Detail information of safety led explosion proof lights/hazardous area light :



Model

DL607

Construction

Die cast aluminum housing

Mounting

Zinc-Plated ,adjustable steel mounting bracket

Hardware

316 stainless steel

Light source

Cree XM-L Light emitting diodes(LED)
Up to
6000 Lumens (fixture)
CRI > 70
CCT 2700-3700K or 5000-7000K
50000 hours rated life

Electrical

Input power : 60 W
Input Voltage: AC85-265 V ,50/60Hz or
DC24-36V
Contact factory for custom cord lengths and input voltage

Reflector

120 degree

Lens

Clear Heat Treated Glass
Contact factory for custom lens

Finish

Textured polyester powder coat
Black , Yellow , Gray options available
Contact factory for custom colors

Ambient
operating
Temperature

-20°C - 40°C

IP rated

IP66

Weight

6.6Kg

Size

278x263x170mm

Certification

Exd IIC T5 Gb

Warranty

3 Years

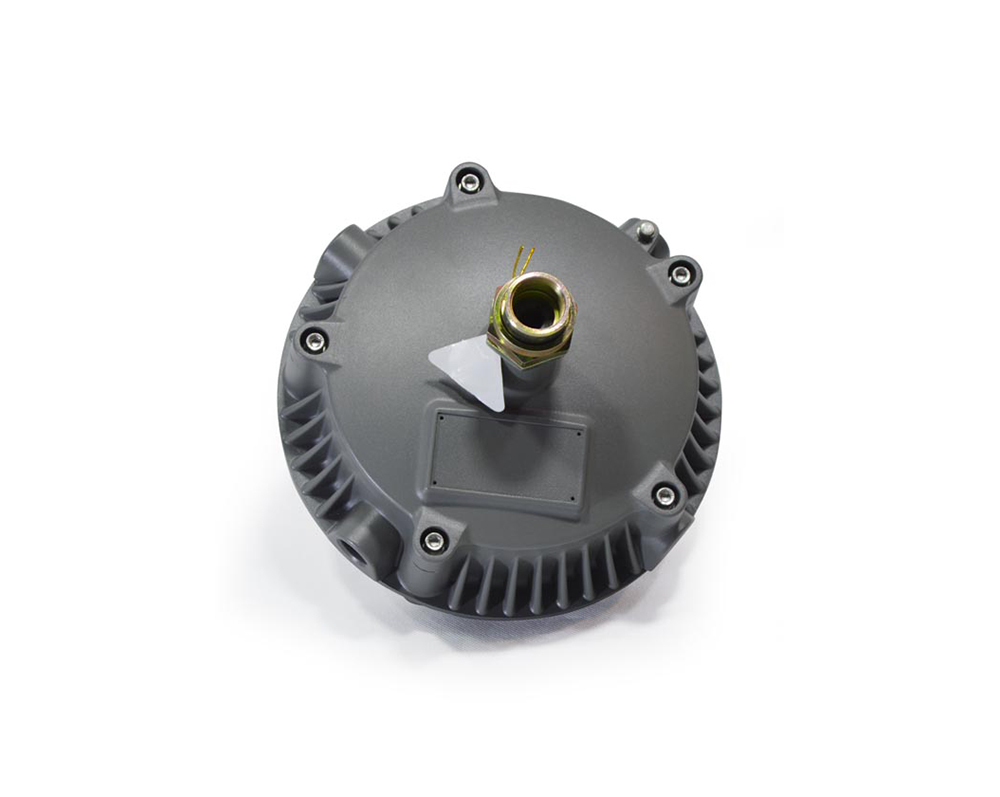

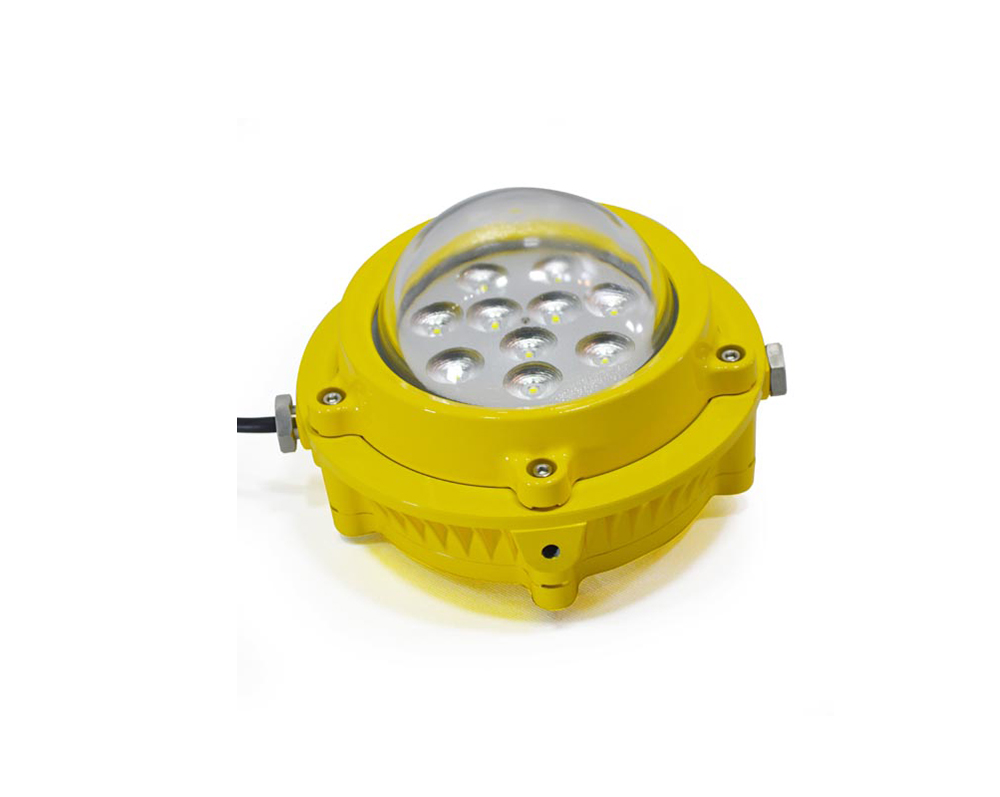

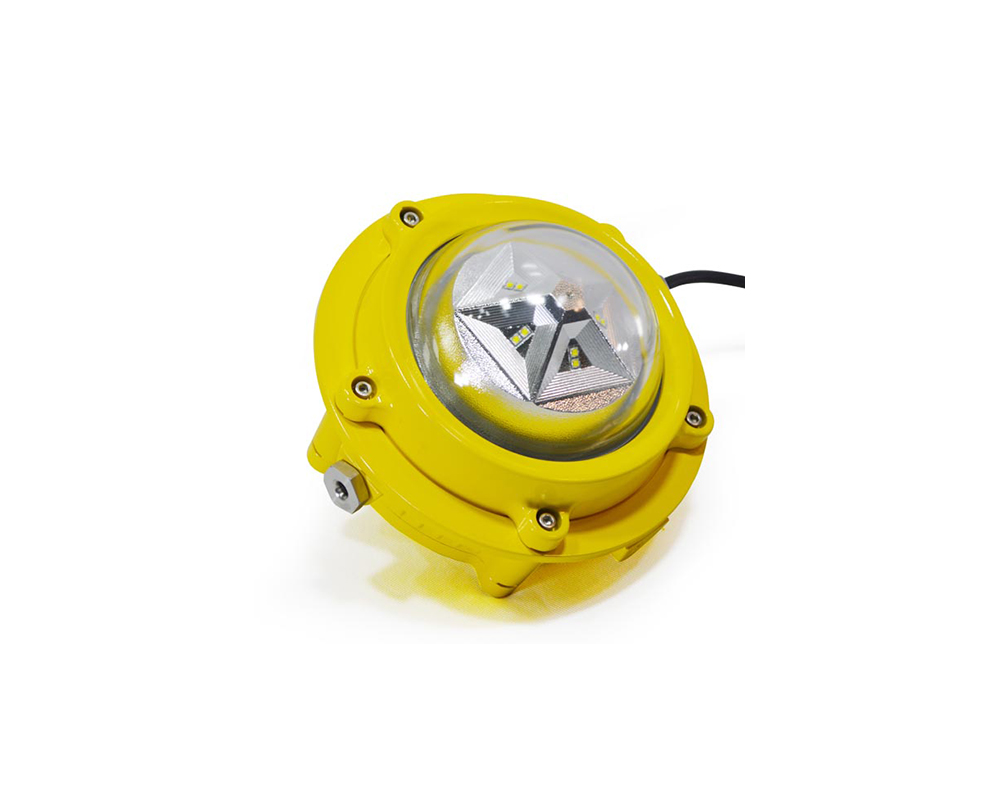

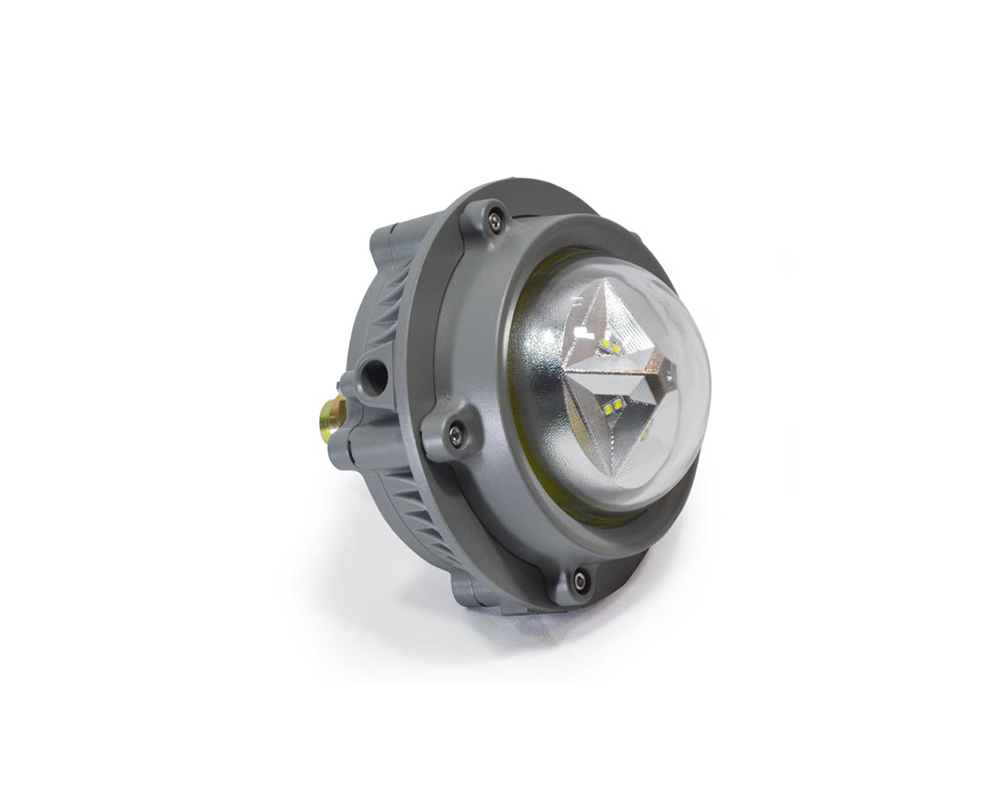

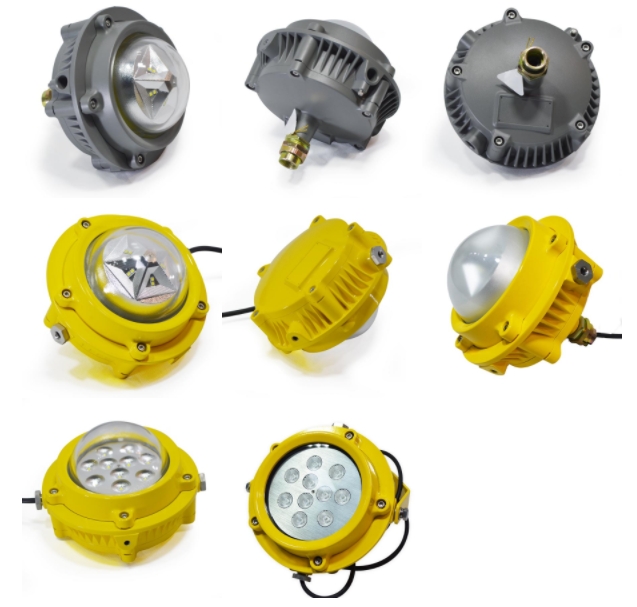

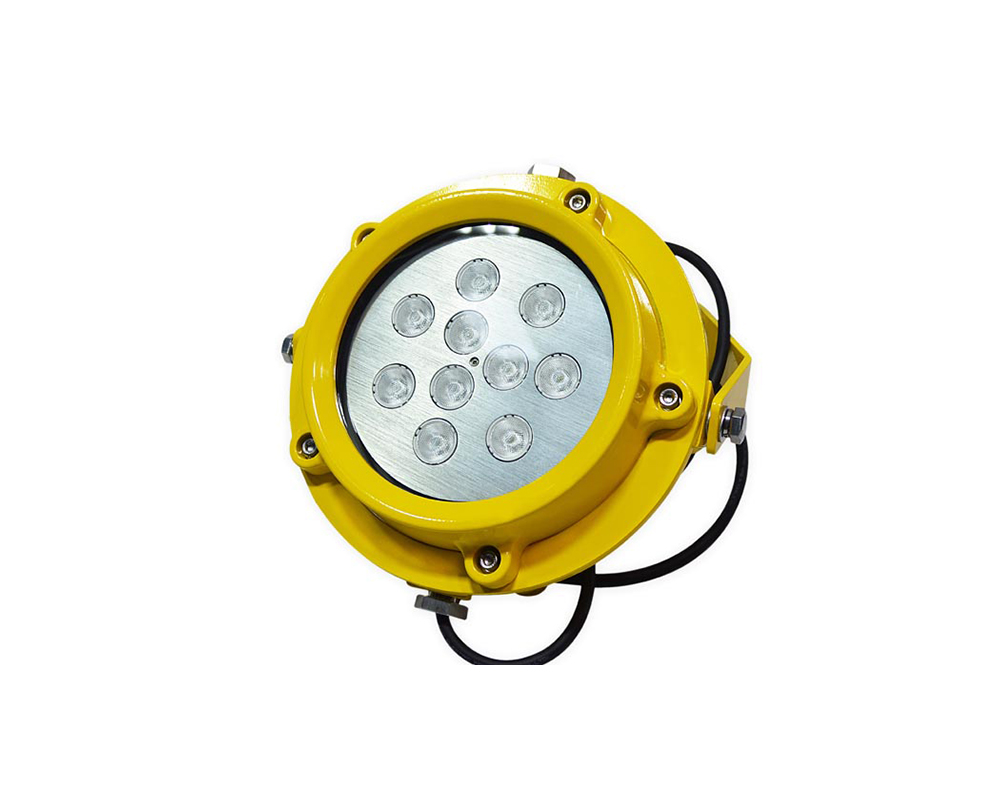

Photos show of safety led explosion proof lights/hazardous area light

 safety led explosion proof lights/hazardous area light led explosion proof light safety led explosion proof lights/hazardous area light  safety led explosion proof lights/hazardous area light  safety led explosion proof lights/hazardous area light  safety led explosion proof lights/hazardous area light  safety led explosion proof lights/hazardous area light  safety led explosion proof lights/hazardous area light



Application of safety led explosion proof lights/hazardous area light :

DL607 led explosion proof light can be used to explosion proof area, boat ,ship, drilling platform ,petrochemical plant etc. Drawing only 60W, the fixture is energy efficient and replaces up to 250W quartz halogen fixture.



Packaging & Shipping



one pieces in one carton, gross weight: 6.6 kg



Our Services



Focused on LED products, provide good quality, quick delivery, AQ discount for all customers.

1. For all your inquires, we will reply you in detail within 24 hours.

2. OEM/ODM services. Print your own logo on product, can customize retail box packing and other things.

3. We have sales who have engage in LED many years to provide custom-made the sales solution.

4. We have engineers who has the experience of projects to solve the problems of technical.

5. We have very experienced R&D engineers and we have strong ability to do ODM projects.

Looking forward to cooperating with you.



Technical Support: Magic Lamp
