DL602-08 40w outdoor led gas station explosion proof light

Model Number: DL602-08

LED Light Source: CREE

Input Voltage(V): AC110-240V

Lamp Power(W): 40

Lamp Luminous Flux(lm): 4800

CRI (Ra>): 75

Working Lifetime(Hour): 50000

IP Rating: IP65

Ex mark: ExnA II T3

Housing: aluminium alloy

Certificatiion: CE,ROHS

Product Details

40w outdoor led gas station explosion proof light

Product details of 40w outdoor explosion proof light

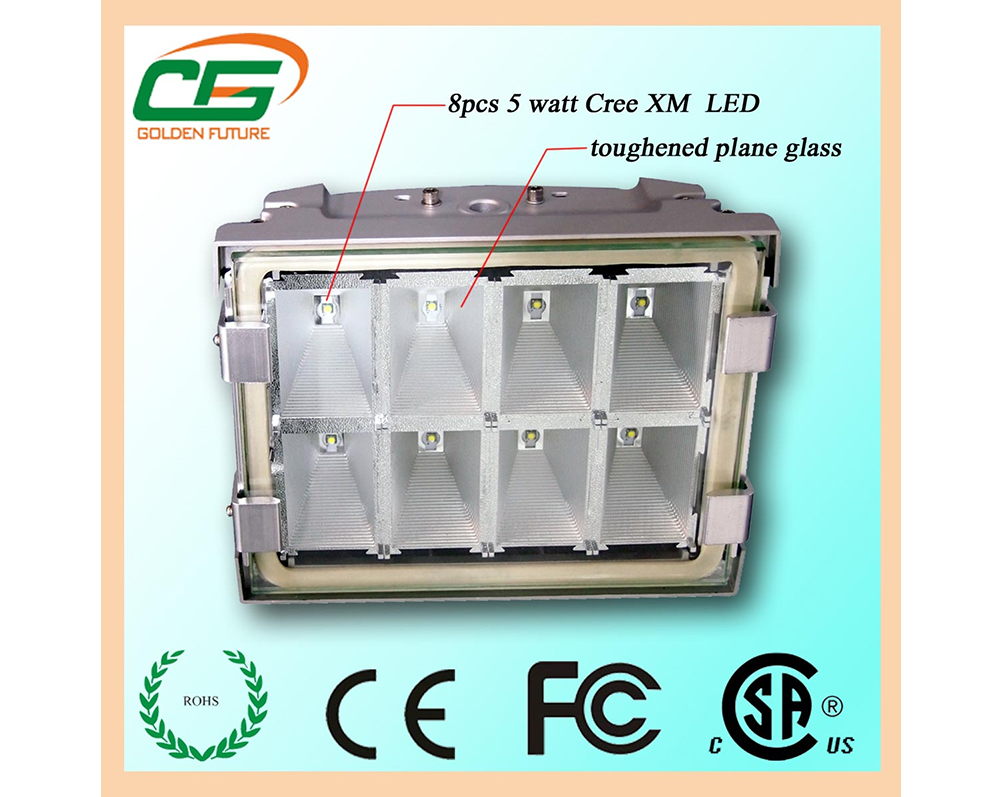

1. 8pcs 5 watt Cree XM white LED as the light source, lifetime is more than 100,000 hours

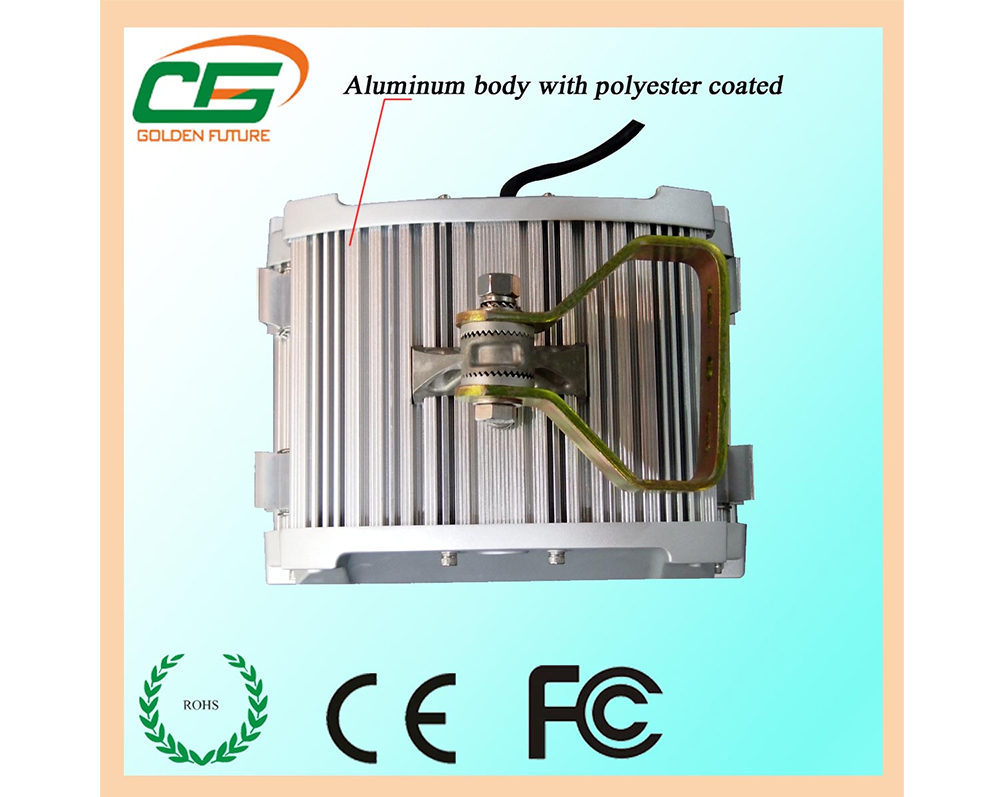

2. Aluminum body with polyester coated, toughened plane glass.

3. DL602-08 explosion-proof food processing light is heat-resistance, shock resistance, corrosion-resistance, and good light transparency.

4. No UV or IR for the LED light, no heat and no harmful radiation.

5. DL602-08 is a Multifunctional Led floodlight, which can be used as the street light, tunnel light, or flood lighting in hazardous and explosive environment.

6. Output lumens: 4800 lumens,

7.Water-proof :classification:IP65

8. EX Mark:ExnA II T3

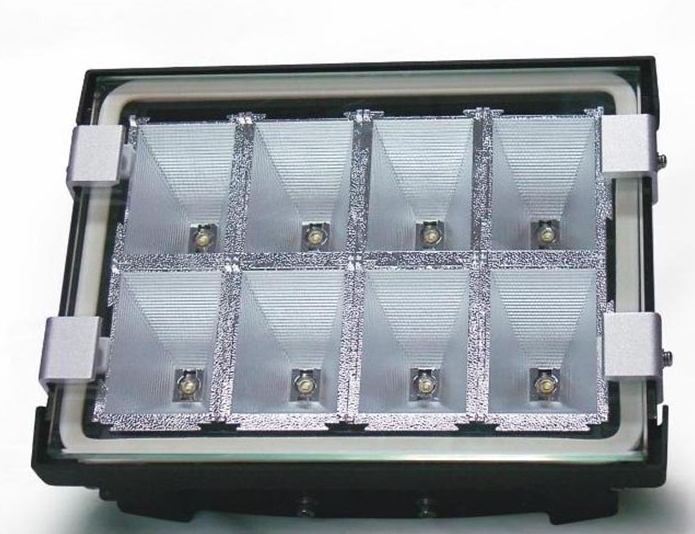

Product show:

24

Parameters

Technical parameters of 40w outdoor led gas station explosion proof light

ItemsValue
Light-LED Power40W
Light-Luminous Flux4800 lumen
Light-Life span100, 000 Hour
Rated Voltage

AC 110~240V

DC 36V

DC 24V

Dimension20.4*27.8*11.5 cm
Weight4.8kg
Inlet’s threadG3/4
Corrosion protection ClassificationWF2
IP ClassificationIp65
EX MarkExnA II T3

Application

Applications of gas station explosion proof light

1)Flammable and explosive Zone II and gas district.

2)Restrict district and heavy industry machining equipment district.

3)Drilling rig area and other atrocious seacoast and offing area.

4)Refinery, chemical plant, pharmacy plant, oil store and gas factory
