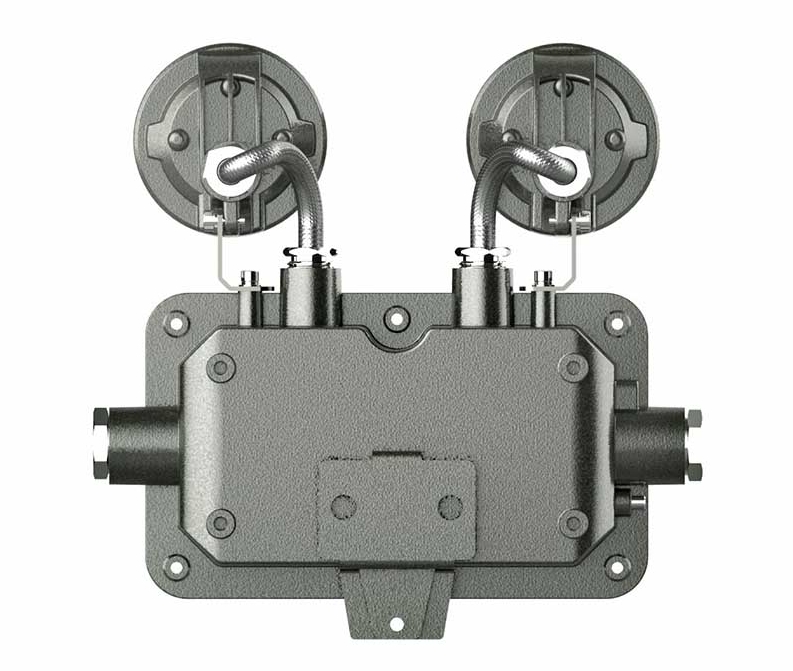

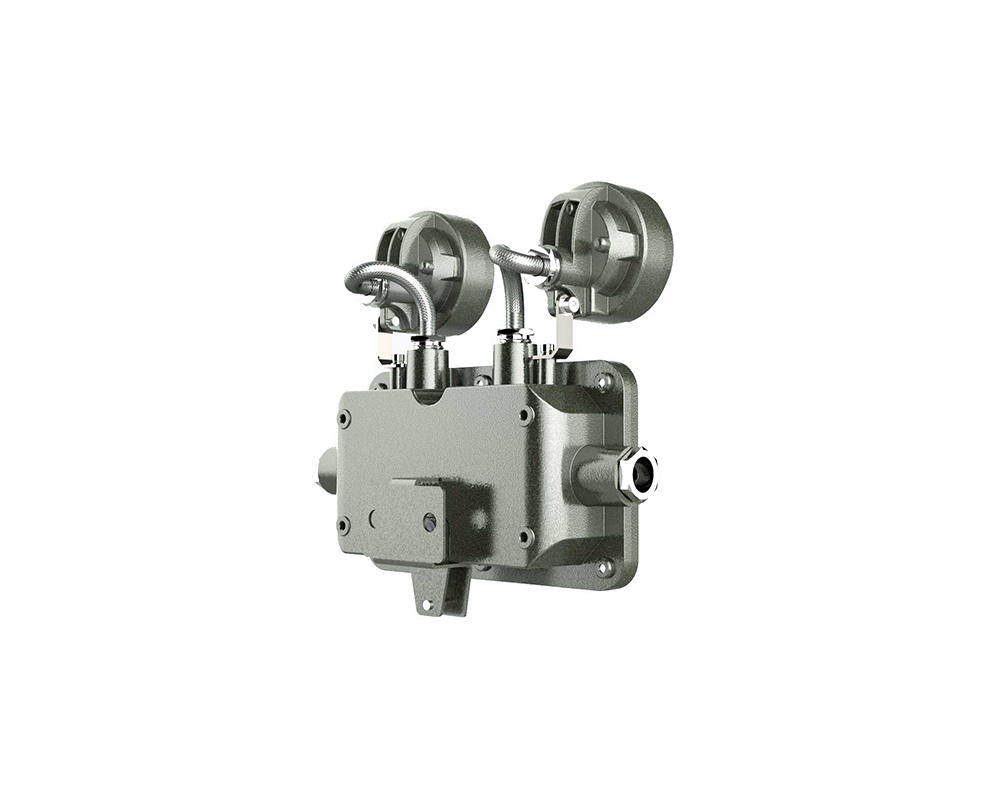

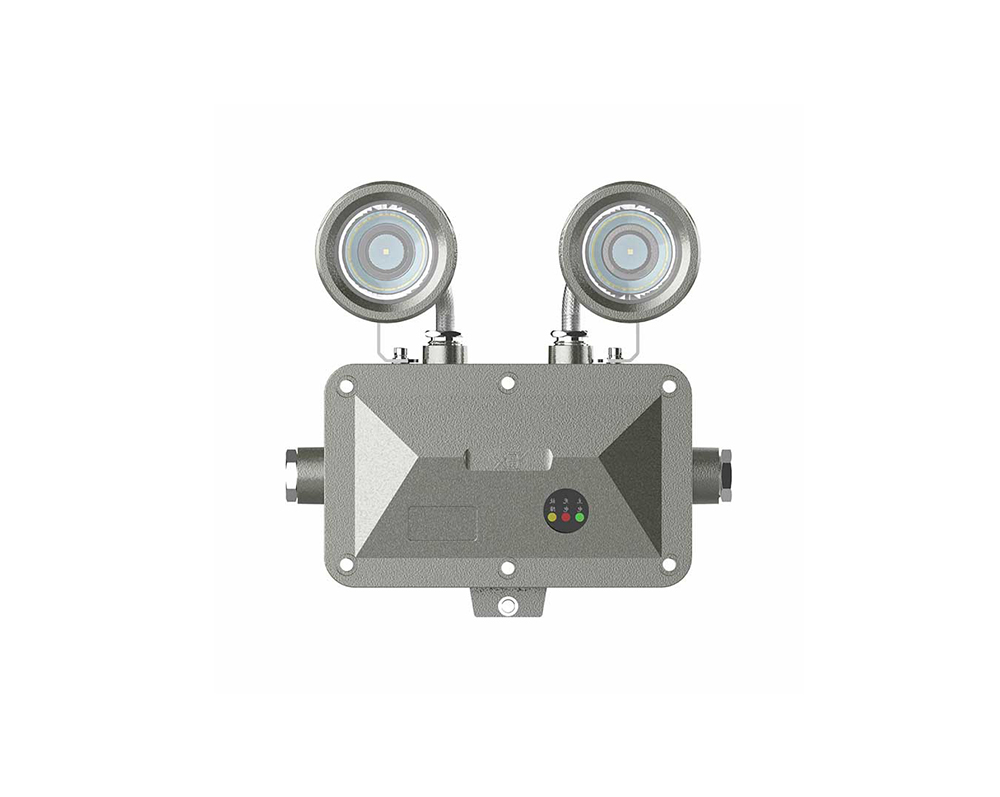

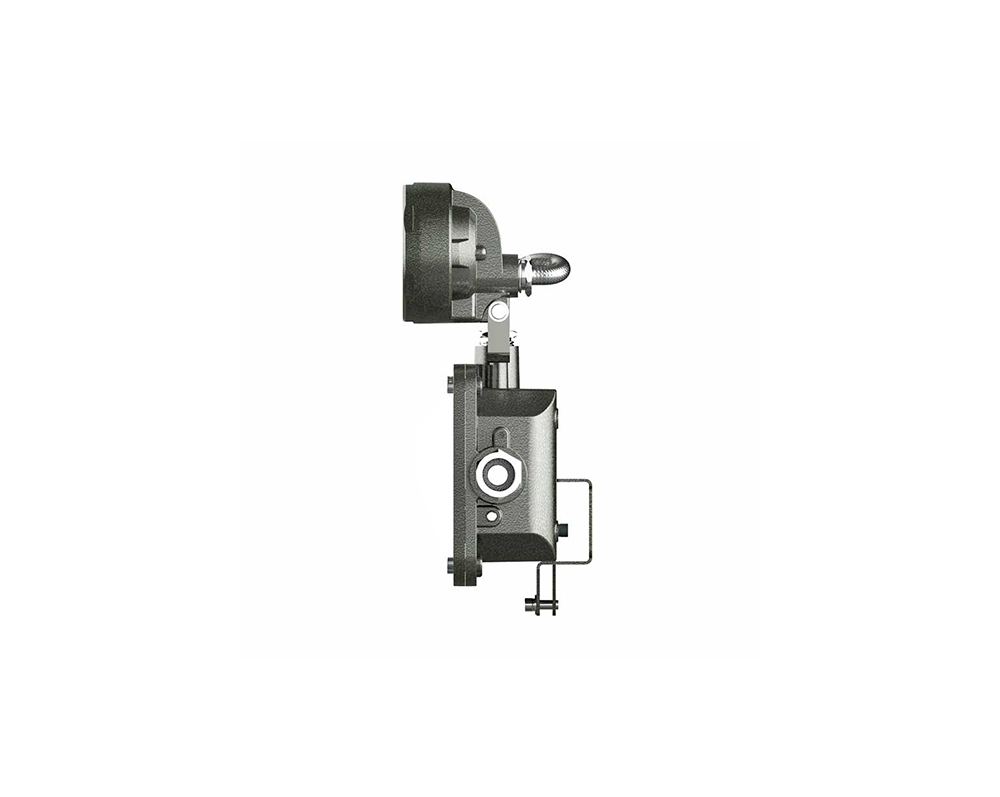

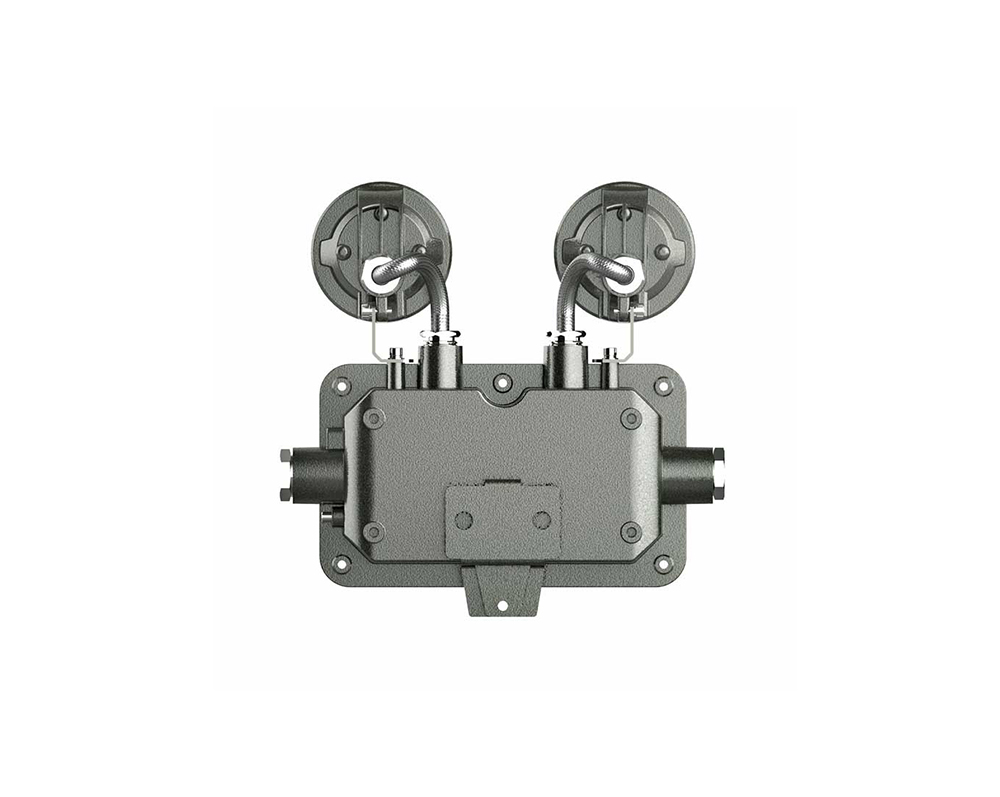

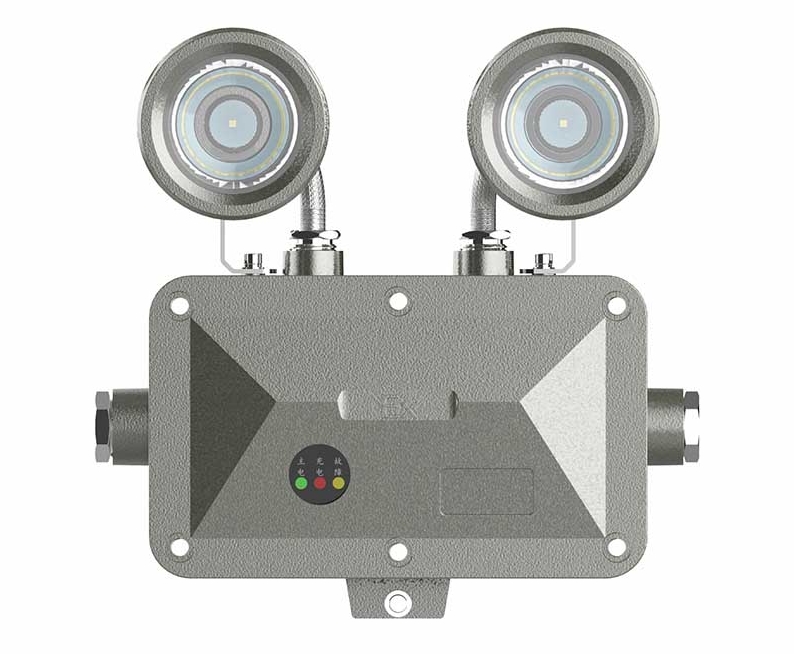

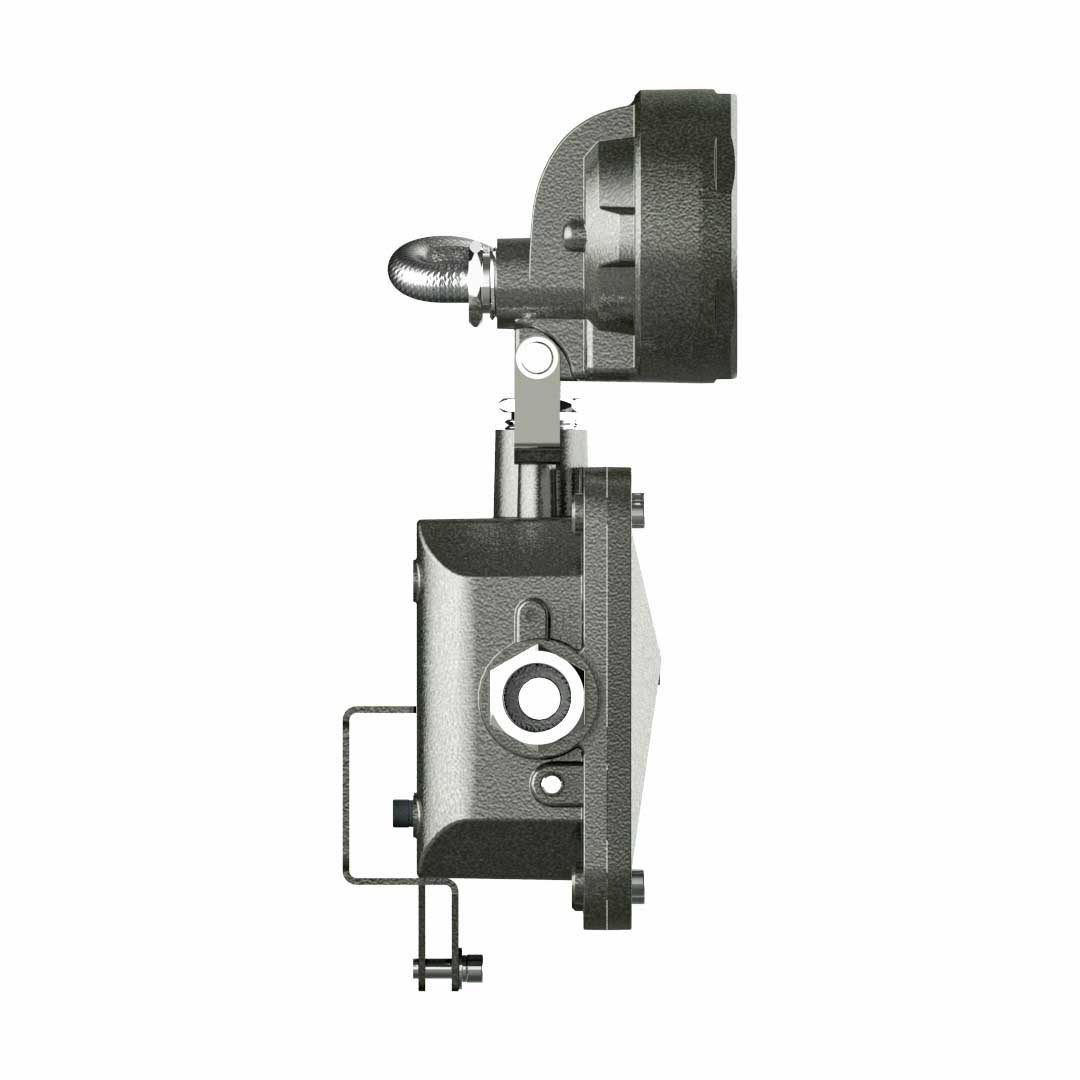

DL190 led explosion proof emergency lamp for hazardous area lighting

Model Number: DL190

LED Light Source: CREE

Rated Voltage(V): AC220V

Lamp Power(W): 2*3w

CRI (Ra>): 70

Working Temperature(℃):-30°C ~ +50°C

Working Lifetime(Hour): 100000

IP Rating: IP66

Ex mark:Ex d IIB T6

light source: Cree led

beam angle: 38

Product Details

DL190 2*3w led explosion proof emergency lamp for hazardous area

This product has good explosion-proof function, suitable for various inflammable and explosive places, mainly used in railway, electric power, metallurgy, petroleum, petrochemical, chemical, steel, aviation, ship and each Efficient lighting in factories, stations, large facilities, venues and other places.

Product Features:

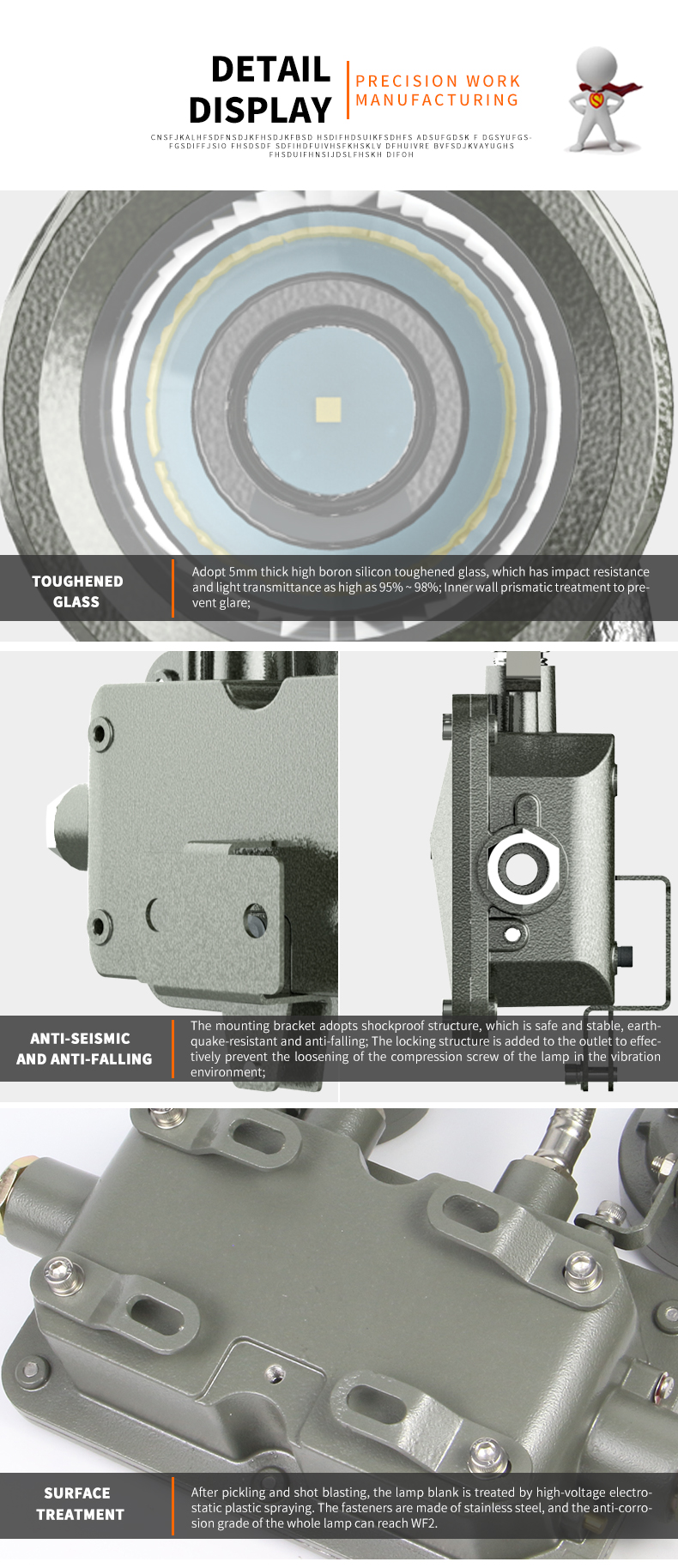

1.The lamp body is made of aluminium alloy by die casting. The surface of the lamp is sprayed with high voltage electrostatic. The exposed fasteners are stainless steel with high corrosion resistance, and the overall anti-corrosion performance is excellent.

2.Adopting high-intensity transparent shield, high-transparency, impact-resistant, unique anti-glare design, with unique optical reflector, it has the characteristics of high light efficiency and low light decay.

3.The explosion-proof structure designed in accordance with the national standard GB3836 document has reliable explosion-proof performance, long life, special constant current power supply, low power consumption and constant output power. It adopts high temperature and aging resistant silica gel sealing ring with high protection grade.

4.Adopt the international first-line brand light source chip, unidirectional luminescence, no side light, high light utilization rate, high light efficiency, high display finger, with open circuit, short circuit, overheat protection function, ensure the reliable and continuous operation of light source, wide voltage input, constant light flux output, instantaneous start-up.

5.Unique heat dissipation structure design, excellent and reliable heat dissipation performance, ensure the long life and reliable use of lamps.

6.Cable wiring, fast and convenient.be used as needed.

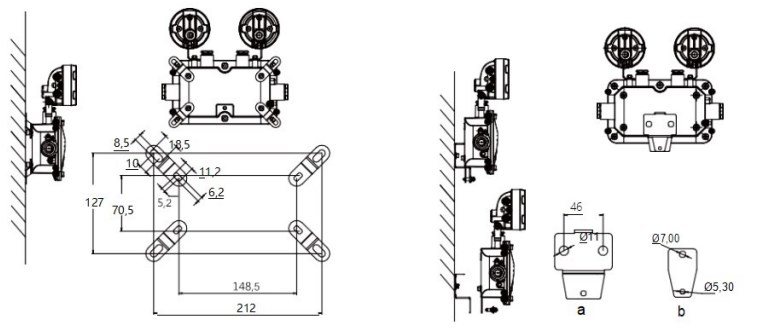

Installation Instruction:

21

Dimension and Package :

NameDescriptionQuantityNameParameter
Outer box46.8*31.8*28cm1N.W.2.5 kg
Inner box29.8*11.2*25.5cm1G.W.0.5 kg
Packaging method1 hold 4

21

Parameters

ITEMDescriptionUNIT
Rated VoltageAC220V
Emergency voltageDC1.2V
Power1/2/6W
Protection LevelIP66
Lighting Angle38°
Anti-corrosion gradeWF2
Explosion proof gradeEx d IIB T6
Light efficiency120Lm/W
Frequency50/60Hz
Power Factor>0.95PF
Operating Temperature-30~50
Storage Temperature-30~50
Correlate Color Temperature3000-6500K
Color Rendering Index≥70RA
LED'S Operating Life100000Hours
Start-up time≤0.2S
Executive standardGB3836.1 GB3836.2
Size230x260x85mm
Emergency Time120Min
