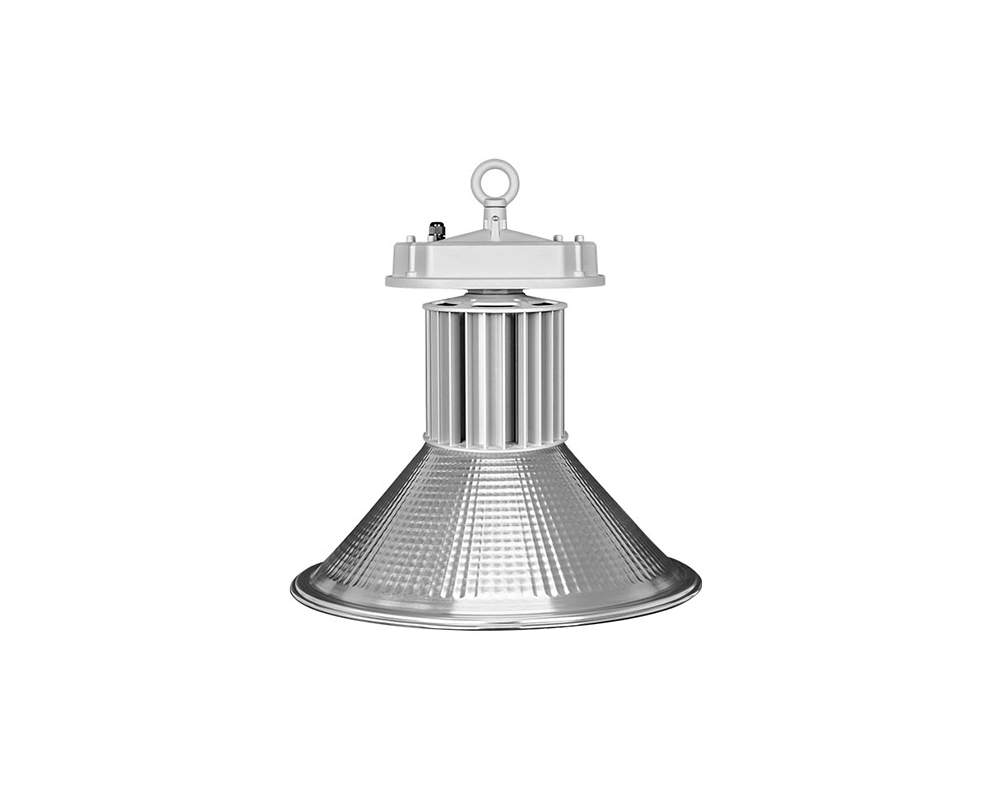

HL7S-100W ip65 aluminum high bay lighting

HL7S-100W ip65 aluminum high bay lighting

Model Number: HL7S-100W
Luminous Flux(lm):10000
Lamp Luminous Efficiency(lm/w): 90
Working Temperature(℃):-20 - 45
Working Lifetime(Hour): 50000
Lamp Body Material:Aluminum Alloy
IP Rating: IP65
Certification: CE, EMC, FCC, LVD, VDE
LED Type: CREE SMD-XBD
PF: >0.95
Beam Angle:60°/90°/120°
TJ: <85℃
LED Q\'ty (pcs): 60
Warranty: 3years

100w waterproof ip65 aluminum led industrial high bay lighting



Advantage:



1. High light efficiency >90lm/W
2. High Quality CREE LEDs with low lumen decay
3. Tj<85℃, PF > 0,90
4. Long lifespan up to 50000hrs,
5. Mercury- and lead free, environment friendly,
6. Easy installation and low maintenance,
7. Surface of fixture especially treated with anti-static, thermostable, anti-corrosive paint,
8. Riveting heat pipe technology design for optimal air convection, 3D heat dissipation.

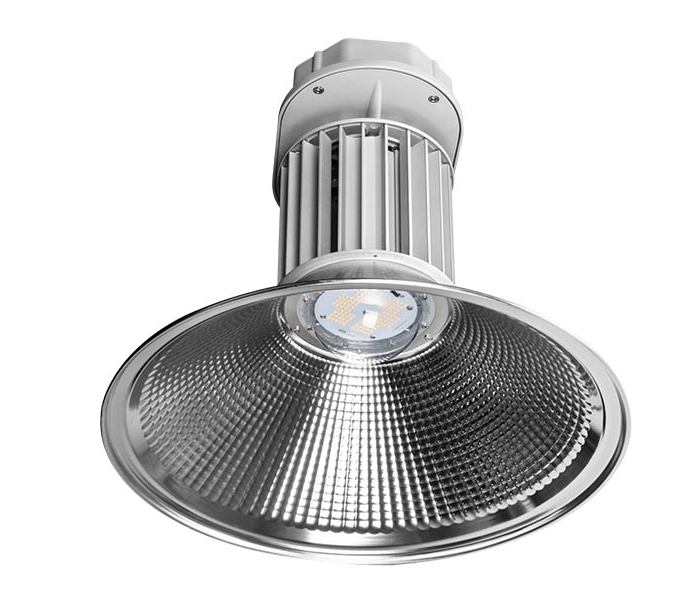

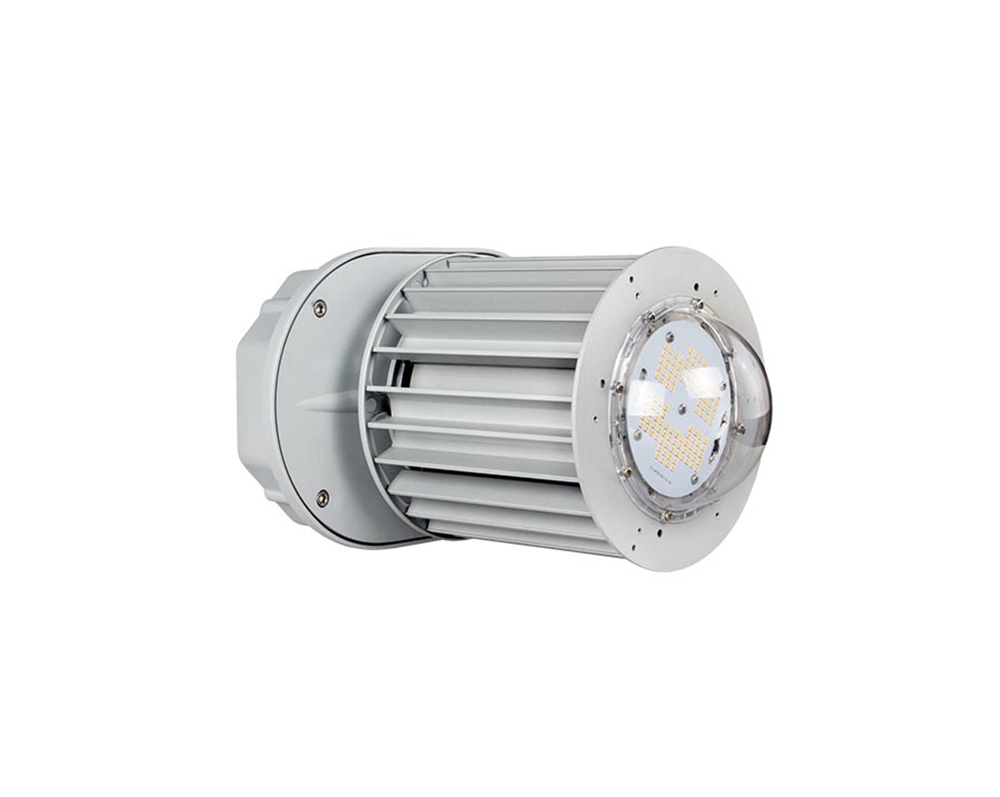

Photos show:

led high bay light

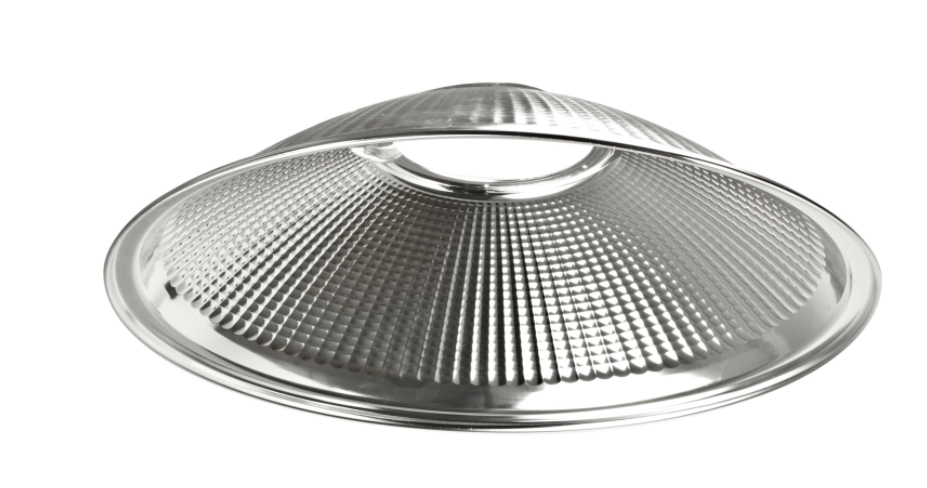

60 degree:

60° high bay light

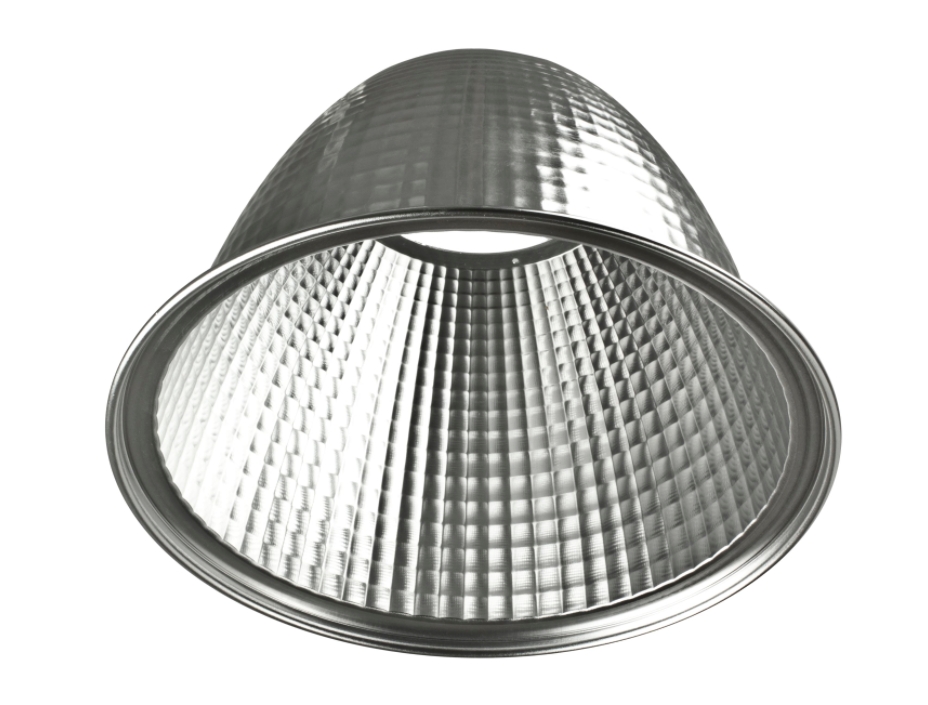

90 degree:

90°.high bay light

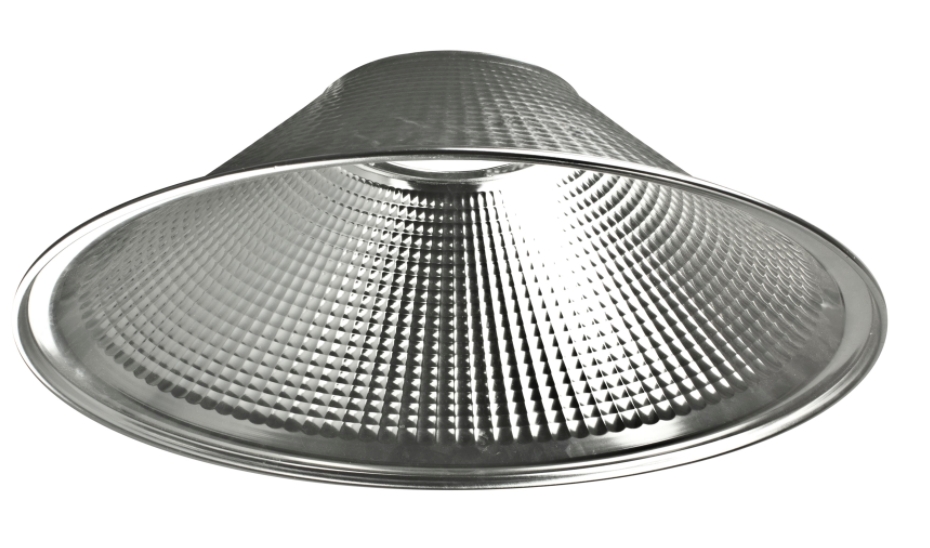

120 degree:

120°.high bay light

Technical Specifications:



Model

LED Type

LED Q\'ty

Color

Voltage

Beam Angle

Wattage

Lumen (lm)

CRI (Ra)

PF

HL7S-100W

CREE SMD-XBD

60 pcs

CW

AC85-265V

50°/90°/120°

100W±10%

9300±15%

70-80

≥0.95

CREE SMD-XBD

60 pcs

DW

AC85-265V

50°/90°/120°

100W±10%

9230±15%

70-80

≥0.95

CREE SMD-XBD

60 pcs

NW

AC85-265V

50°/90°/120°

100W±10%

9180±15%

70-80

≥0.95

CREE SMD-XBD

60 pcs

WW

AC85-265V

50°/90°/120°

100W±10%

8960±15%

70-80

≥0.95

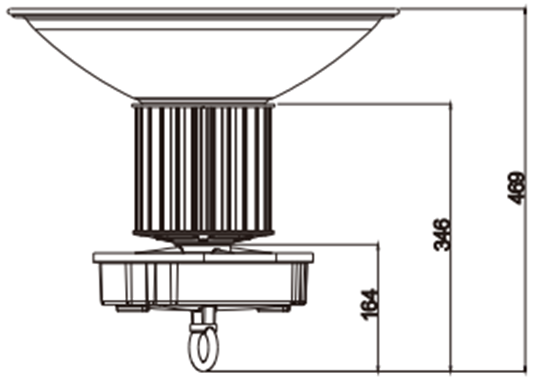

Dimensions:

high bay light Dimensions

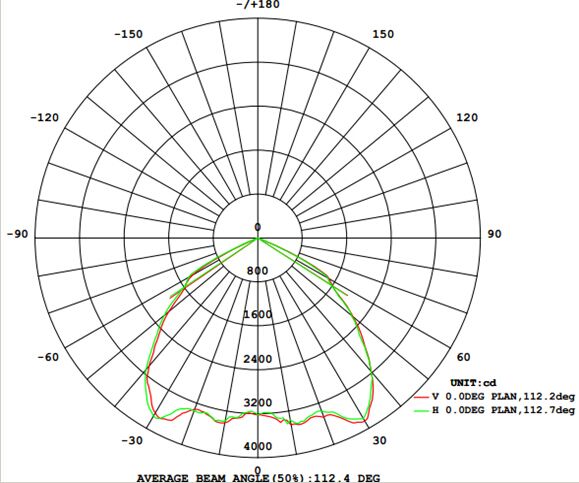

Lighting Distribution Curve

led high bay Lighting Distribution Curve

Application:

1. Indoor project lighting;

2. For workshop, factory, storage warehouse, exhibition center, and other places.
3. Replacement for sodium lamp

Packaging & Shipping

Package with different beam angle:

Packing details

Fixture

60° cover

90° cover

120° cover

Net weight

3.5kgs

0.38 kgs

0.55 kgs

0.68 kgs

Outer carton size(mm)

535*360*410

415*415*340

570*570*235

590*590*210

Q\'ty per ctn

2pcs

8pcs

8pcs

8pcs

G.W per ctn

9.0kgs

4.1kg

5.8kg

6.3kg
