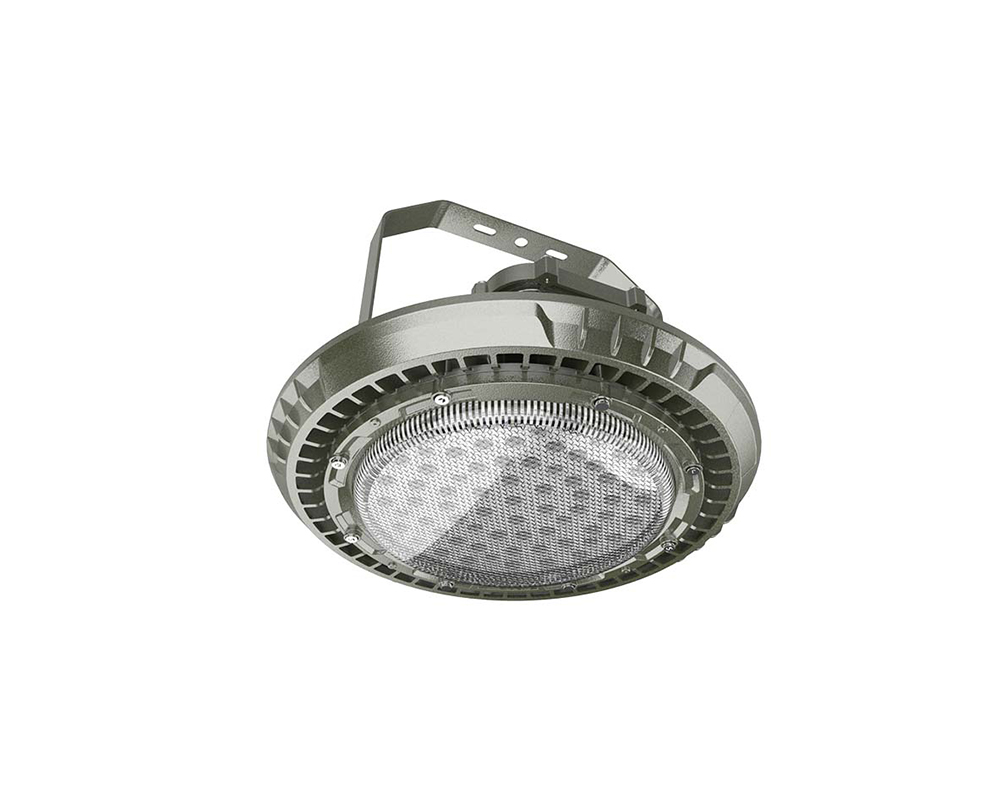

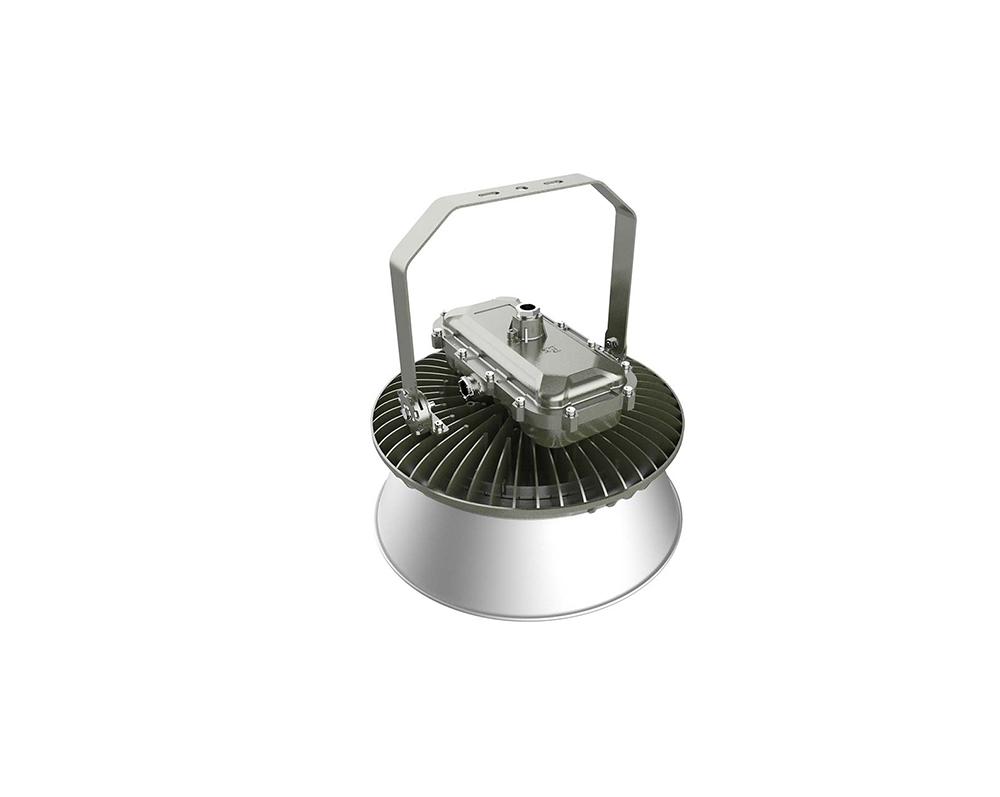

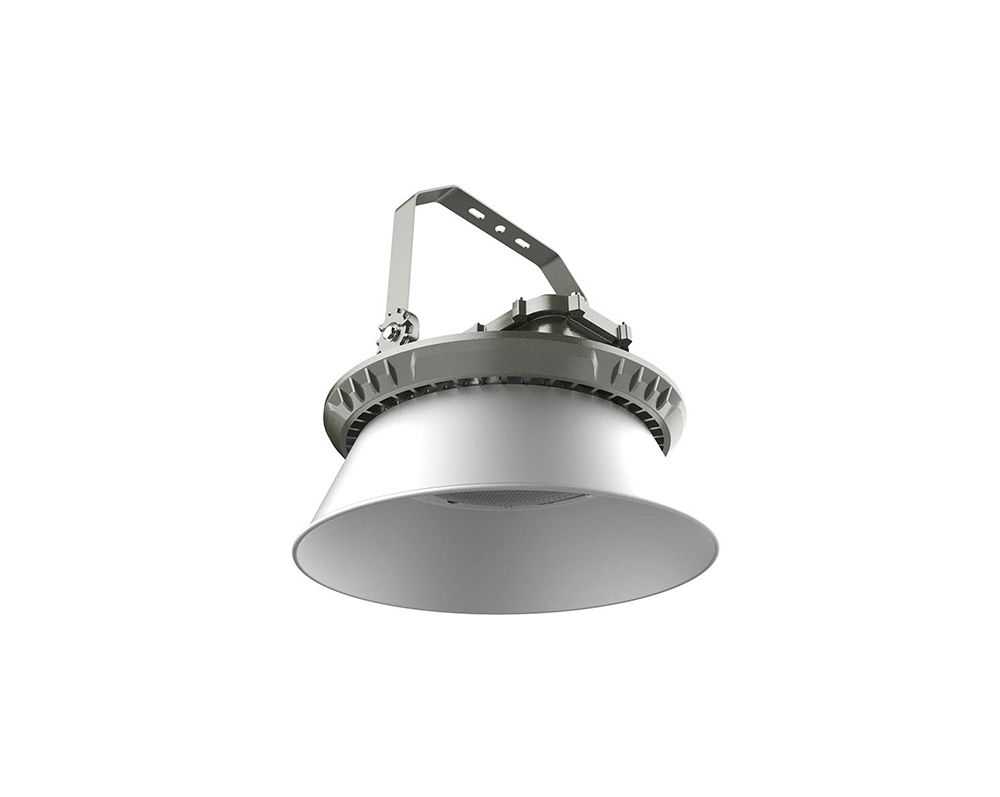

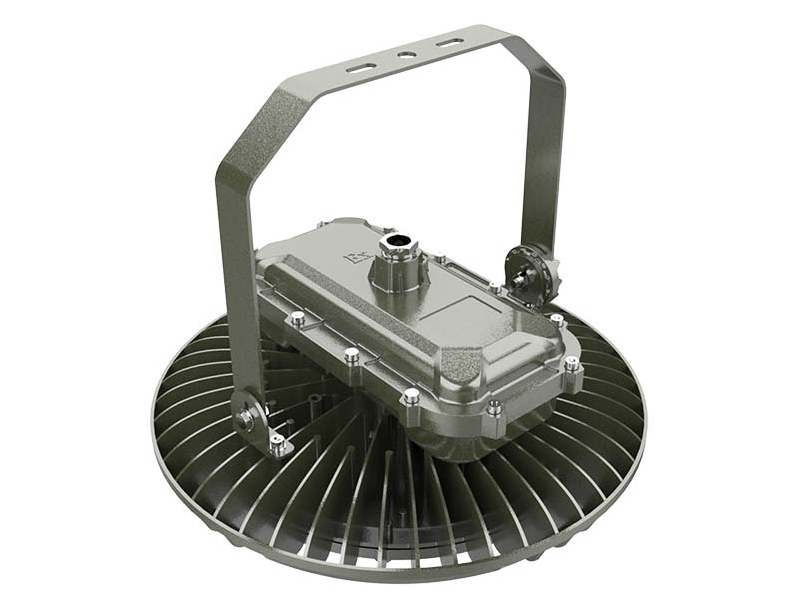

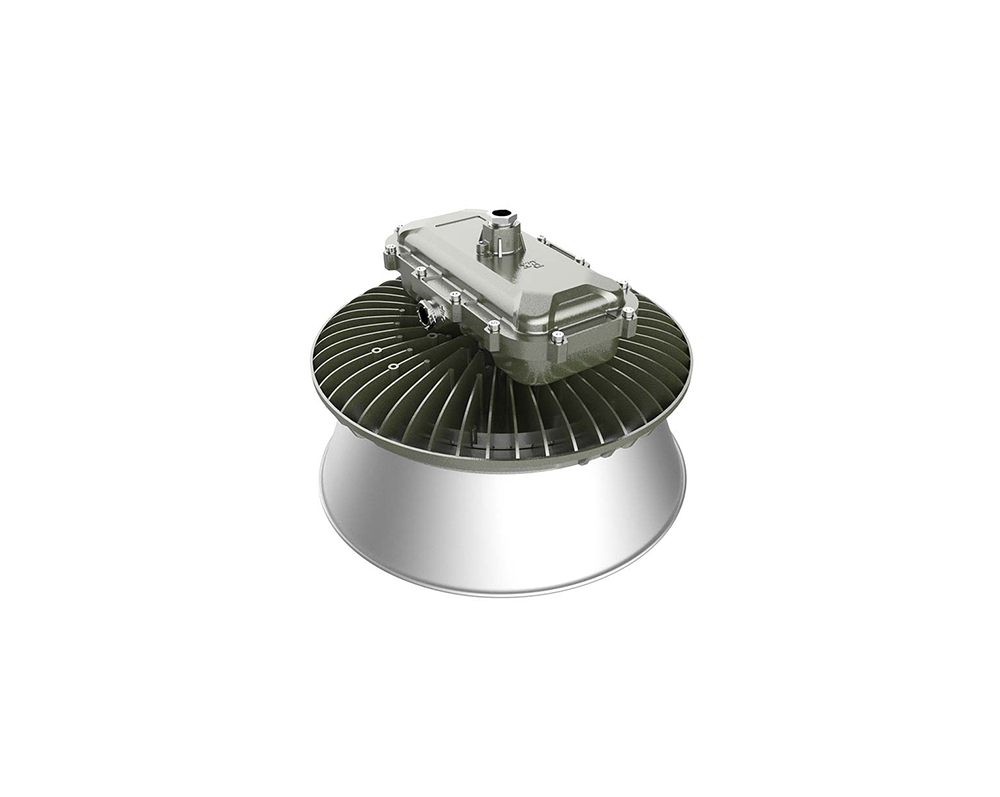

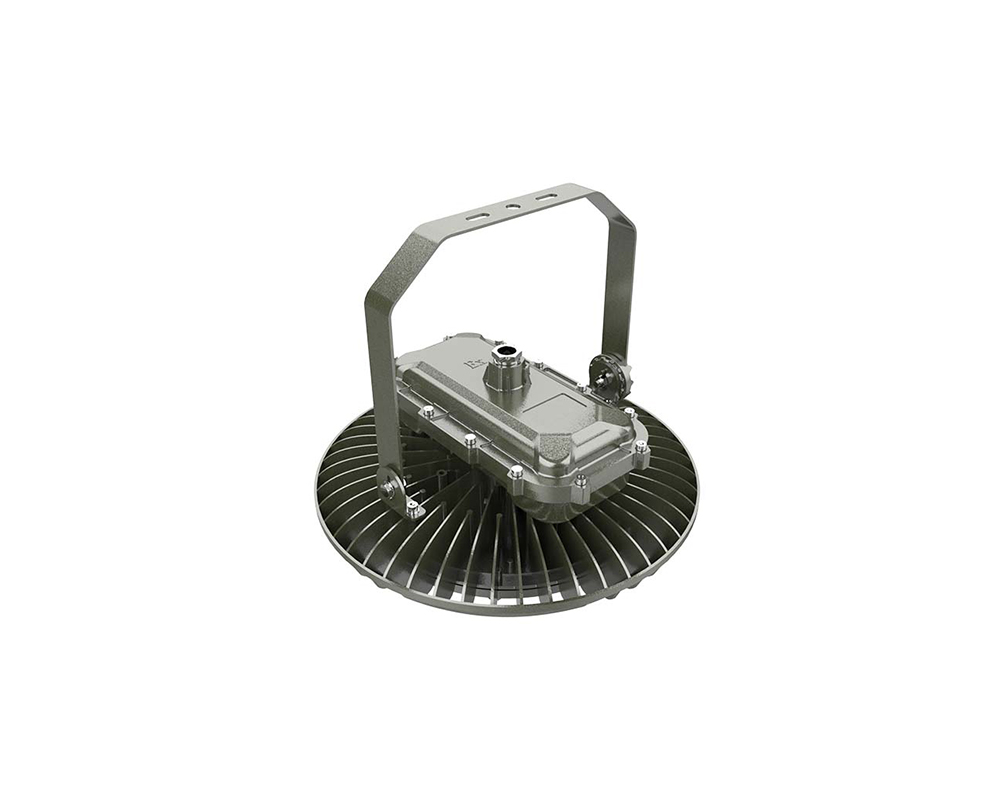

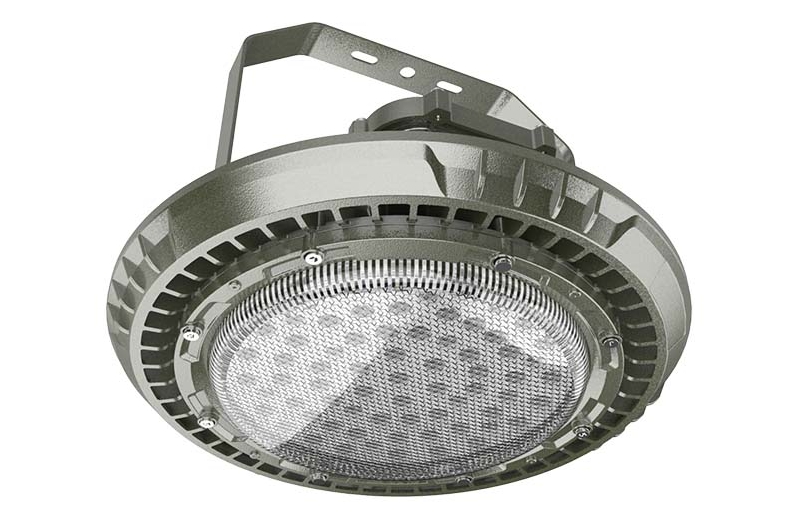

DL235L LED Explosion Proof High-Bay Light

High power led explosion proof Flood light

DL235L LED Explosion Proof High-Bay Light

Model No:DL235L
Input voltage:AC100-240v
Led source: Cree led, 150lm/w
PF>0.95 CRI:Ra>75
Ex mark: ExdIICT6
Waterproof grade:IP66; Corrosion proof:WF2
Beam angle:88°
product size:Φ415*351 mm
Net weight:8.8kg

DL235L LED Explosion Proof High-Bay Light

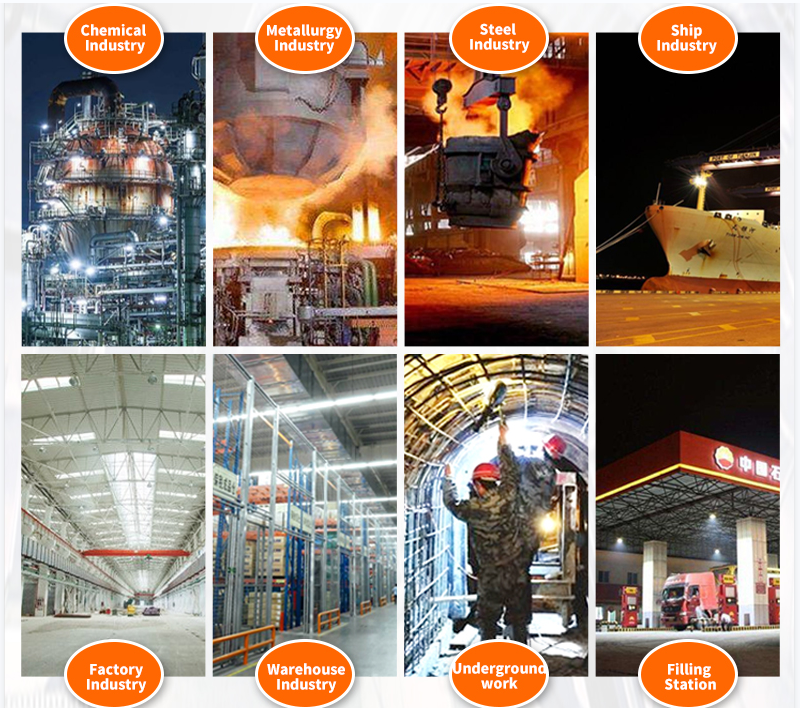

This product has good explosion-proof function, suitable for IIA, IIB, IIC explosive gas environment and various inflammable and explosive places, mainly used in railway, electric power, metallurgy, petroleum, petrochemical, chemical, steel, aviation, ship and each Efficient lighting in factories, stations, large facilities, venues and other places.

Product Parameters

ITEM	Description	UNIT
Rated Voltage	AC220	V
Power	200-280	W
Protection Level	IP66
Lighting Angle	88	°
LED Qty	220	pcs
Explosion proof grade	Ex d e mb IIC T6
Light efficiency	150	Lm/W
Frequency	50/60	Hz
Power Factor	＞0.95	PF
Operating Temperature	-30~50	℃
Storage Temperature	-30~50	℃
Correlate Color Temperature	3000-6500	K
Color Rendering Index	≥70	RA
LED'S Operating Life	100000	Hours
Start-up time	≤0.2	S
Executive standard	GB3836.1 GB3836.2
Size	Φ415*351	mm
Weight	8.8	kg

Product Features :

1 . It adopts imported LED light source, with an average service life of up to 100,000

hours. The power supply adopts wide voltage processing, which can realize constant

current output, and has short-circuit and over-voltage protection functions, which greatly

prolongs the service life of the lamps.

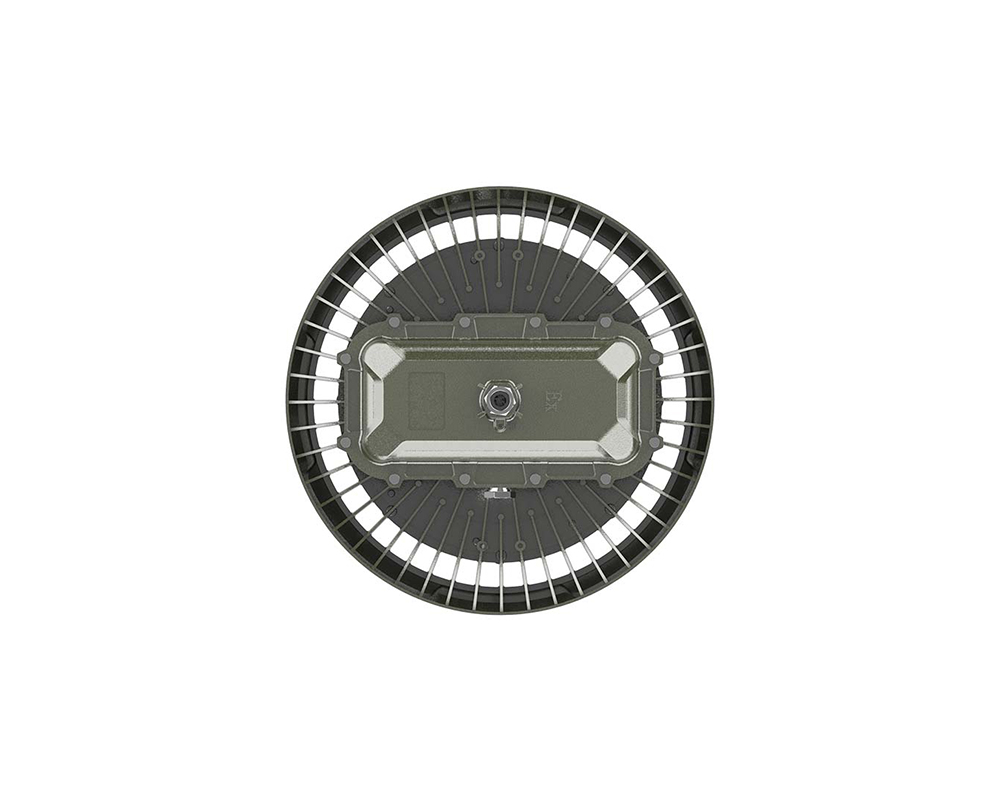

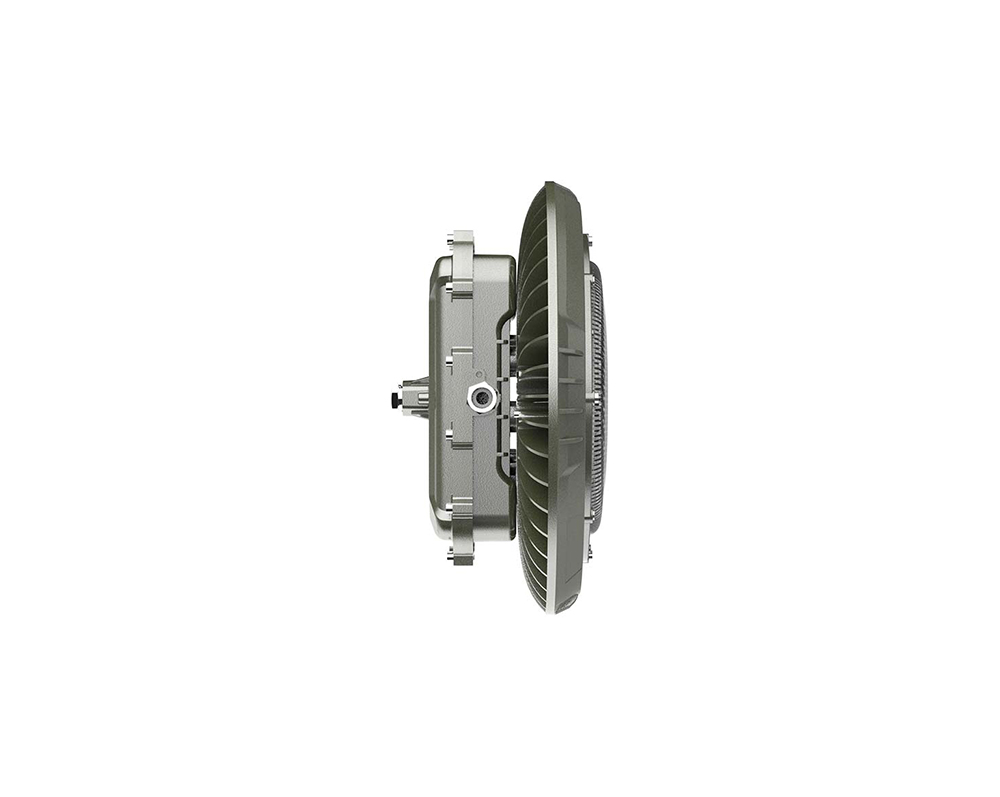

2 . Independent up and down ventilation convection structure design, improve the

heat dissipation performance at the same time to avoid the conventional LED radiator

will accumulate dust phenomenon. The heat sink is arranged in an array of inner and

outer circumferences to improve heat dissipation performance.

3 . The use of high purity tempered glass, light transmittance of up to 95% -98%. The

light projection is even and soft, especially suitable for various low-top, platform, high-top,

high-shed and other places as fixed lighting.

4 . The protection level of the lamp body is IP66, and the anti-corrosion level can

reach WF2. The surface of the lamp body will never corrode and never rust.

5 . Various installation methods such as ceiling, curved rod, vertical pole, ceiling,

U-shaped anti-vibration bracket (angle adjustable) can be used as needed.

Applicable Place :

1. Aplicable to areas 1 and 2 in exprosive gas environment ;

2. Aplicable to explosive gas environment of Class IIA，IIB，IIC；

3. It is suitable for places in Zone 21 and Zone 22 combustible dust environment ;

4. Applicable to temperature groups of T1-T6(T5);

5. Applicable to energy-saving nenovation projects and places where maintenance and replacement are difficult .
