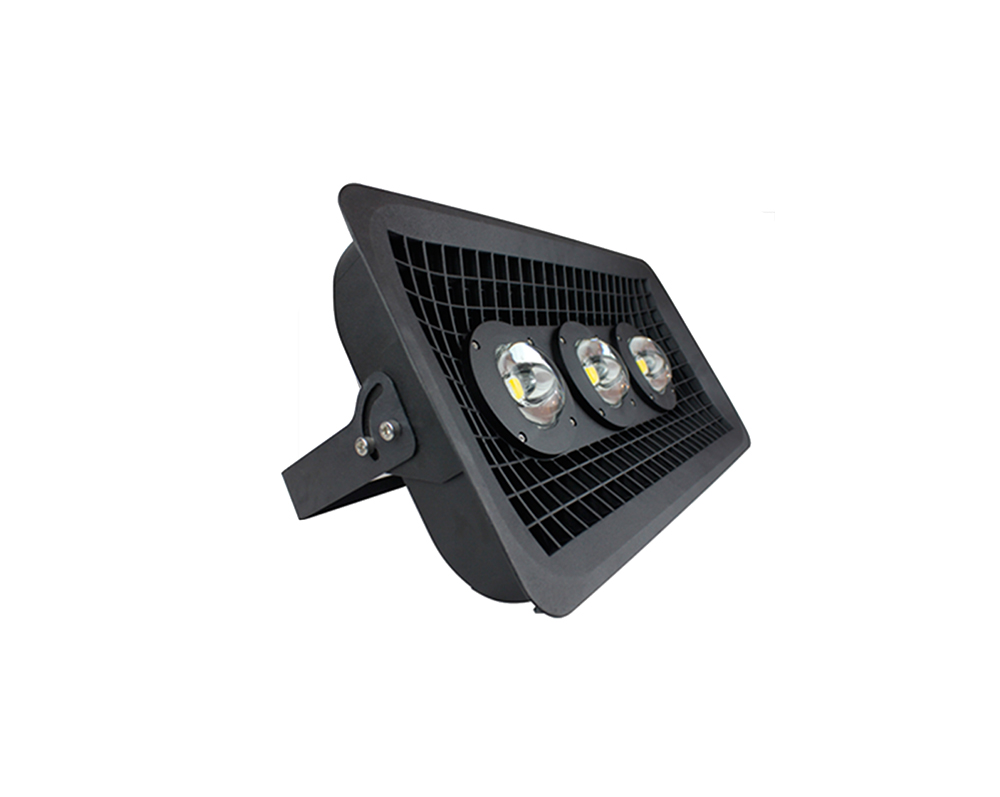

SPC210H2-210w LED Shopping mall lighting outdoor led floodlight

Model Number: SPC210H2-210W

Item Type:Flood Lights

Input Voltage(V):AC85-265V

Lamp Power(W): 210

Lamp Luminous Flux(lm): 21000

Lamp Luminous Efficiency(lm/w):100

CRI (Ra>): 80

Working Temperature(℃):-20 - 45

Working Lifetime(Hour): 50000

IP Rating: IP65

Certification: CE, ETL, RoHS, SAA, UL

Input Voltage: AC85-265V

light source: Bridgelux COB

beam angle: 90 and 120 degree

LED driver: Meanwell

CCT: CW,DW,NW,WW

warranty: 3 years

Product Details

IP65 210w LED Shopping mall lighting outdoor led floodlight details spec:

LED Outdoor floodlights light,3pcs 70W bridgelux led , Totally 210w

Aluminum body with polyester coated, toughened-glass lens, initial output lumens: 21000 lumens,

Input voltage: AC85V-265V.

Packing size: 605X335X195MM , 1pcs/ctn, G.W.: 13KGS

Waterproof grade: IP65

Heat-resistance, corrosion-resistance, explosion-proof, waterproof

Wattanty: 3 years


Competitive Advantage of outdoor led floodlight :

1. Adopt high light efficiency as light source, >100lm/W

2. Stable and low decay.

3. TJ<85℃.

4. Lifespan upto 50000hrs.

5. Engery saving, excellent heat disspation.

6. ECO-friendly, mercury free,lead free.

7. Low maintain cost.

8. PF > 0.95.

9. Surface of fixture treated with anti-static paint, and corrosionresistant.

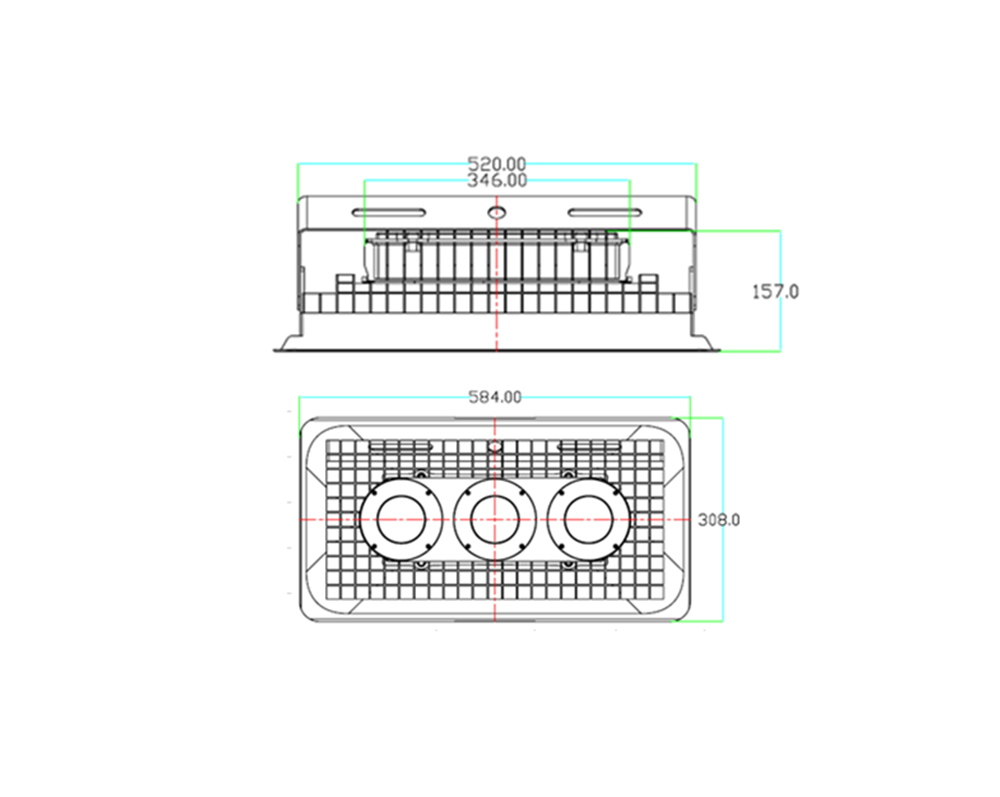

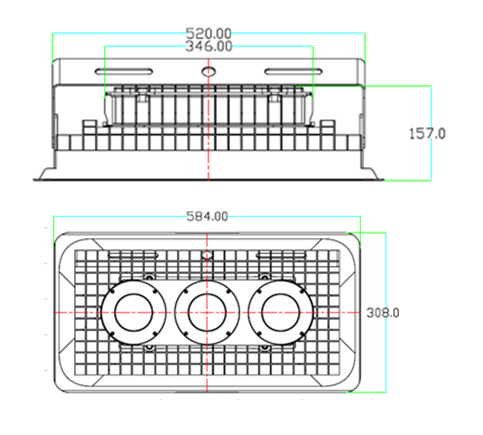

Physical dimension :

6

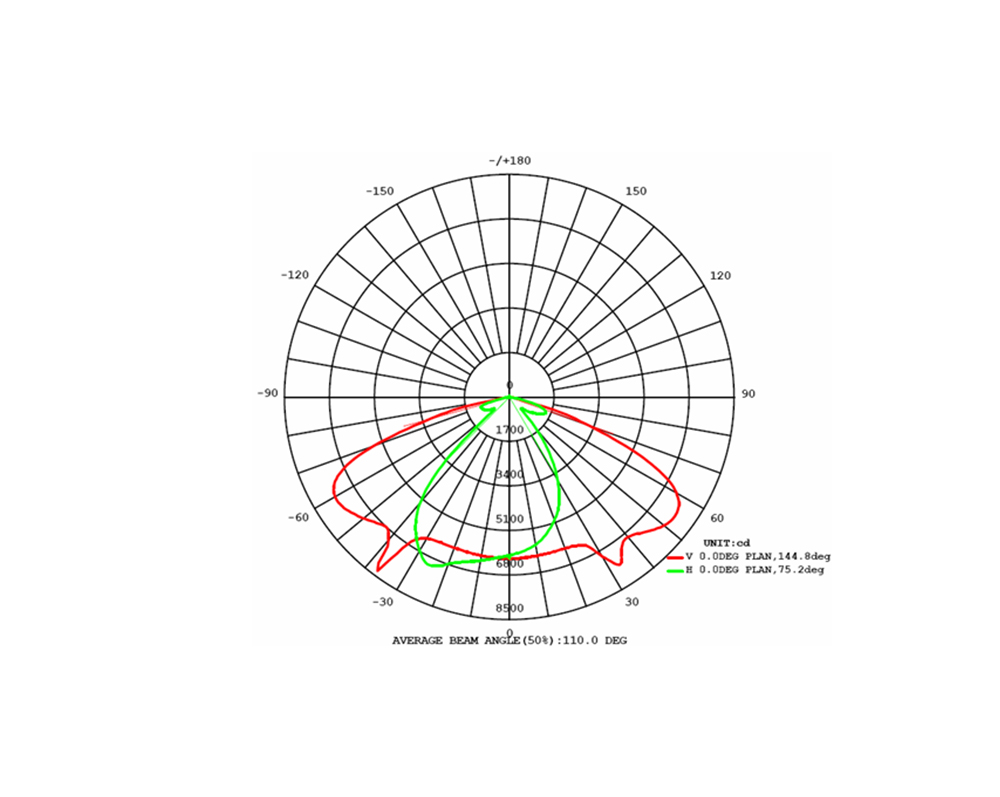

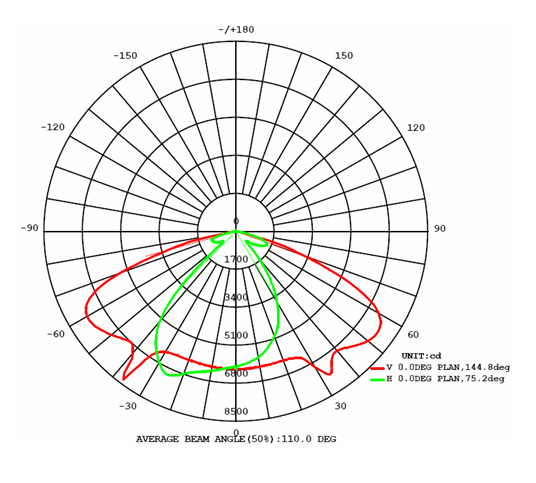

Light distribution Curve:

6

Packaging & Shipping

IP65 210w LED Shopping mall lighting outdoor led floodlight:

1. Net weight:11.62 kgs

2. Outer carton size: 605X335X195MM

3. Q\'ty per ctn:1 pcs

4. G.W per ctn:13 kgs


Our Services

We can provide customer good quality,quick delivery,good service.

1. For all your inquires, we will reply you in detail within 24 hours.

2. OEM/ODM services. Print your own logo on product, can customize retail box packing and other things.

3. We have sales who have engage in LED many years to provide custom-made the sales solution.

4. We have engineers who has the experience of projects to solve the problems


Company Information

GOLDEN FUTURE ENTERPRISE HK LTD. is a specialist on the design and selling of LED industry lighting for more than 10 years, especially for miner lamp, explosion proof lighting fixture, LED street light and other LED commercial lightings, and etc.

We have more than 10 advanced engineers with many years design experience for the electronic design, structure design and optics design.

With many years selling, We have good reputation for high quality, good service and punctual delivery time from all our customers all over the world.

Parameters

Power (W)210W
Frequency (V)50Hz-60Hz
Operating Voltage(V)AC85-265V
LED Lighting Efficiency(Lm/W):>100LM/W
Power Supply Efficiency (%)95%
Power Factor>0.95
Color Rendering Index(Ra):>80
Color Temperature(K)CCT: CW:5500-6500K, DW:4700-5300K, NW:4000-4500K, WW:3000-3500K.
Light Body & Lampshade MaterialAluminum House & toughened glass
Life Span(hrs)50000
IP Rating(IP):IP65
Beam angle(degree)120

Application

1. Indoor & half-outdoor project lighting; IP65

2. Widely use for skyscraper, amusement building, shopping mall, bridge, wharf, tower, for billboard and other\'s outdoor application.


Application notice of outdoor led floodlight :

1. Operating temperature:-20℃ to 45℃

2. Storage temperature:-25℃ to 50℃

3. Optimal environment temperature:0 to 30℃
