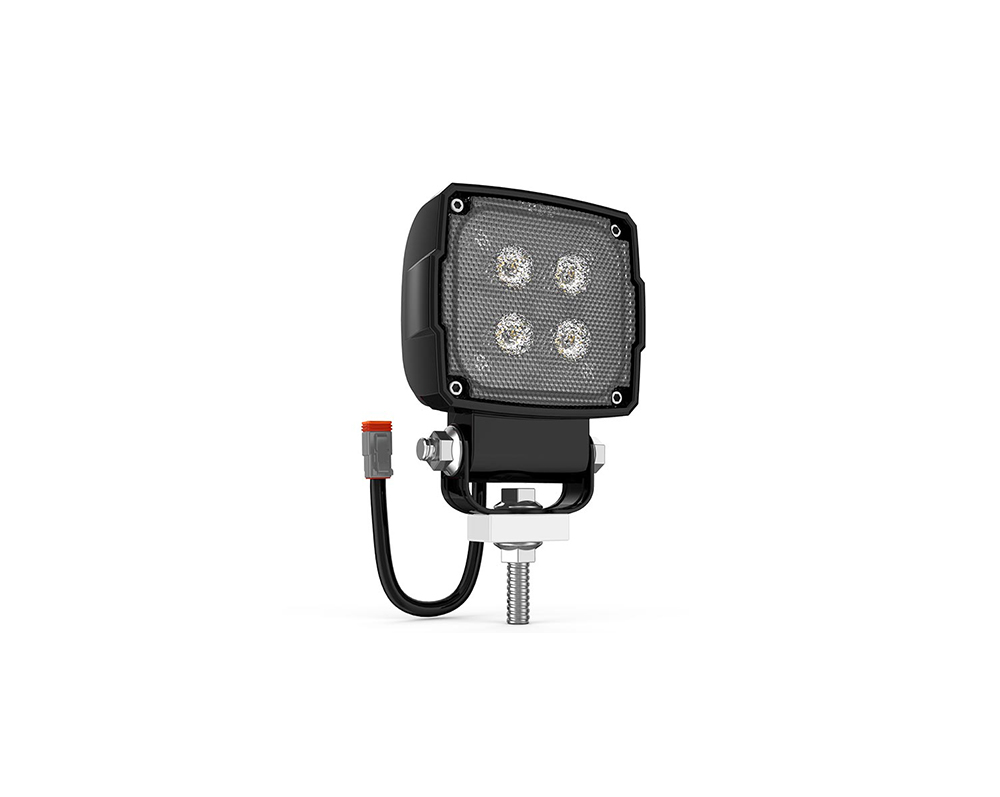

24W LED auto lighting offroad truck driving lights work light

Model:WAL01

LED Lumen:2200LM

output lumen:2008lm

light angle:19 degree

Rated power:24W

Product Details

24W LED auto lighting offroad truck driving lights work light

Our LED offroad work lights features:

1. Imported LED high power chip (9-24V) good quality. Low price and Improve cost performance!

2. Use aluminum plate for good heat dissipation and stable quality

3. High brightness

4.Super energy saving: lower energy consumption than usual

5.The housing material is die-cast aluminum alloy, color temperature: 6300K

6.Long lifespan: longer lighting and lifespan.

7.All products sold in this store are guaranteed for two years of service, after-sales problems are unconditionally prioritized!

8.Wide range of applications: can be used for front fog lights, driving lights, work lights, engineering lights, auxiliary lights and reversing lights.

9.This light shape is a super white light, almost as bright as daylight!

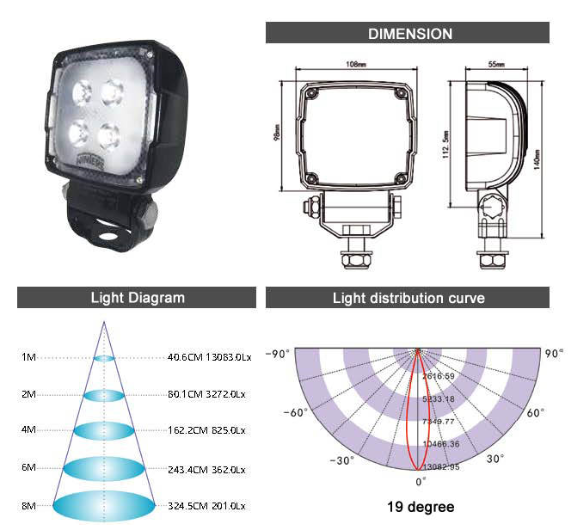

product size:

1

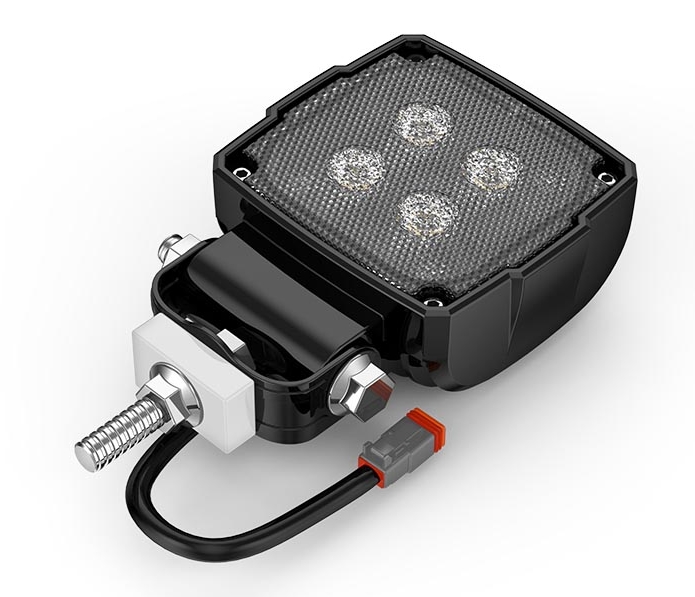

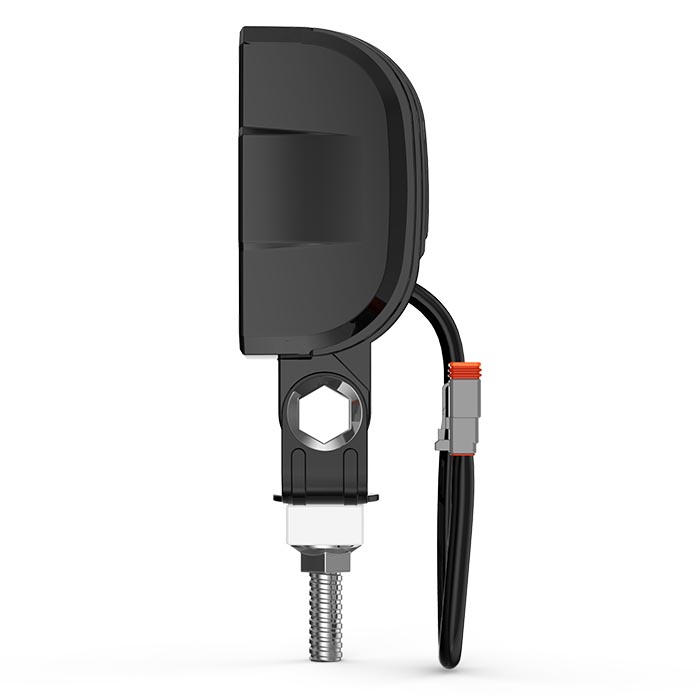

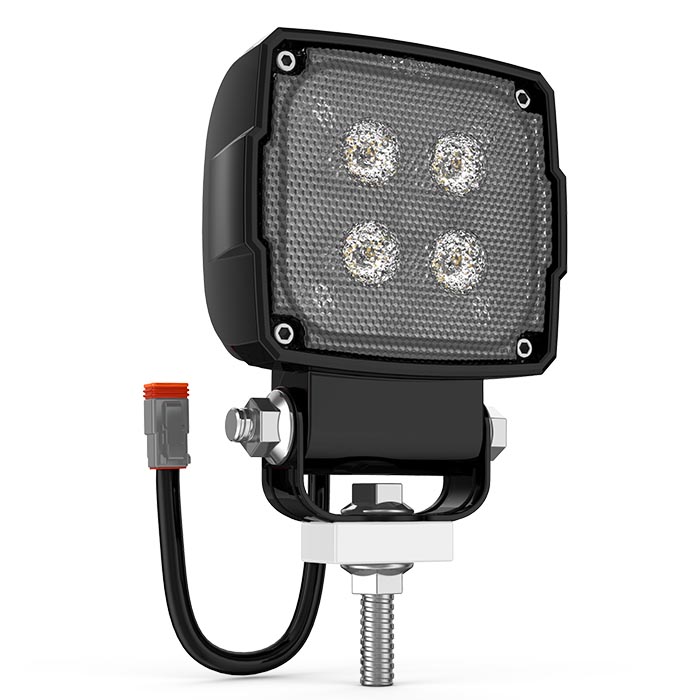

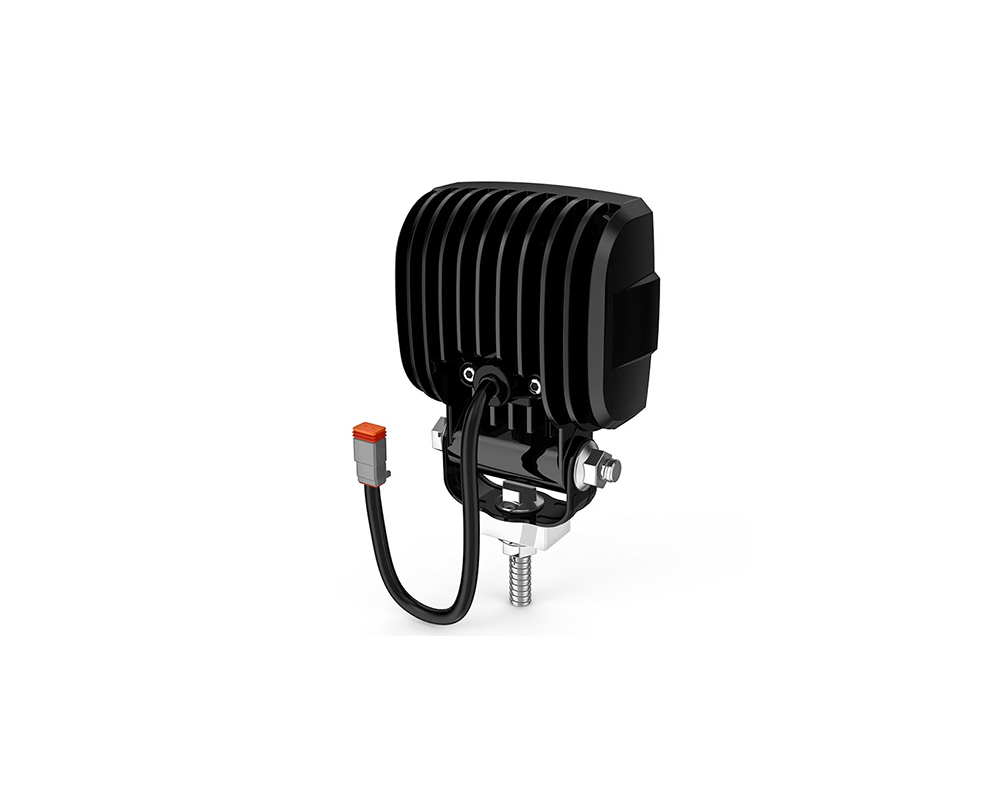

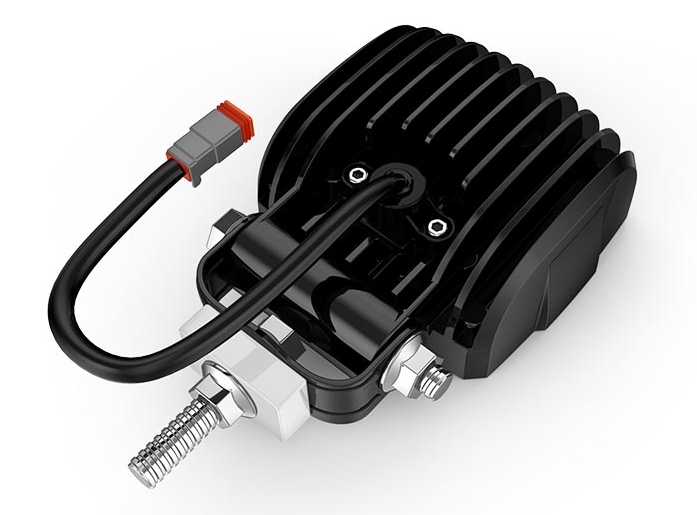

product show:

Our Services

Focused on LED products, provide good quality, quick delivery, AQ discount for all customers.

1. For all your inquires, we will reply you in detail within 24 hours.

2. OEM/ODM services. Print your own logo on product, can customize retail box packing and other things.

3. We have sales who have engage in LED many years to provide custom-made the sales solution.

4. We have engineers who has the experience of projects to solve the problems of technical.

5. We have very experienced R&D engineers and we have strong ability to do ODM projects.

Looking forward to cooperating with you.


Company Information

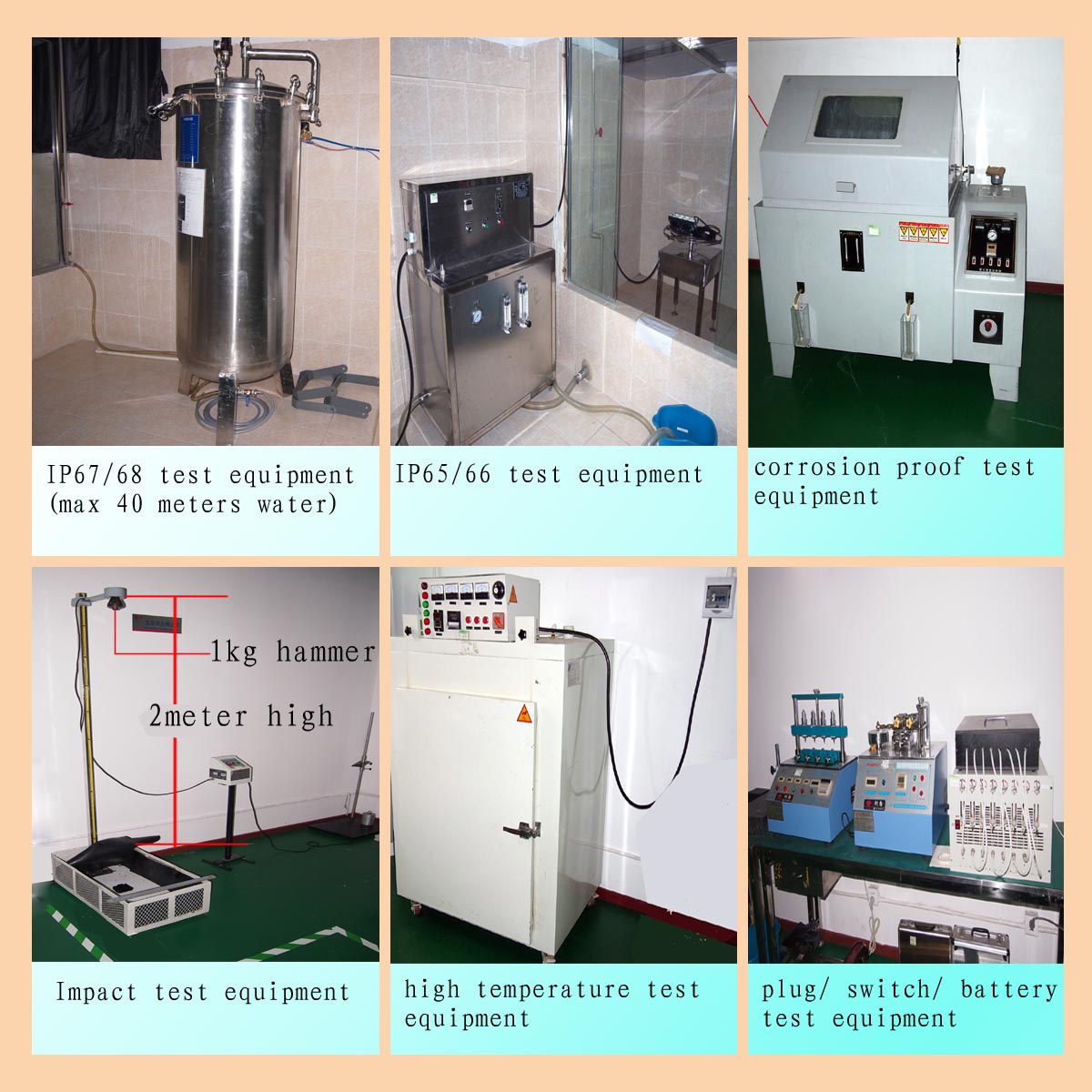

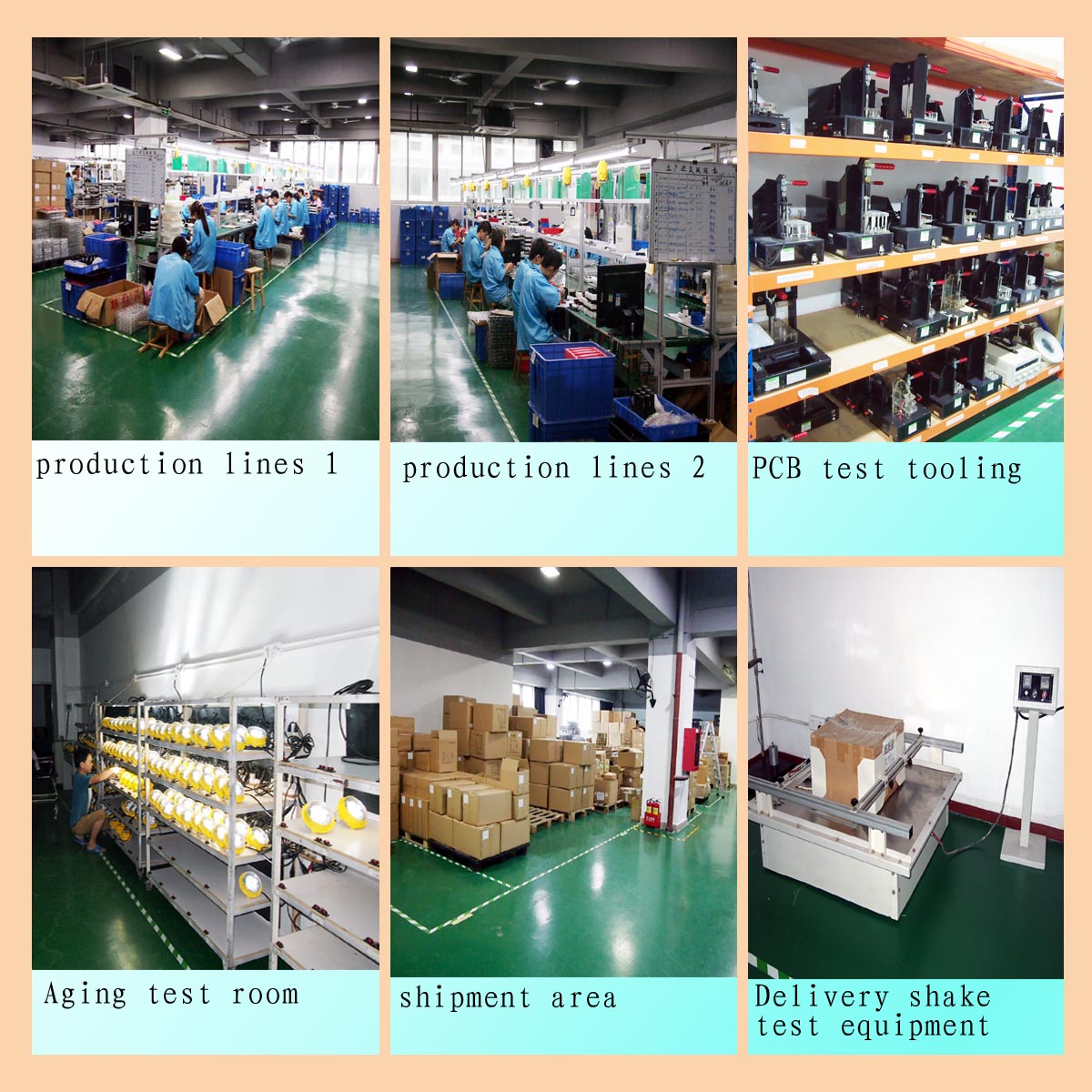

TEST EQUPMENT:

1

WORK SHOP

1


Parameters

Technical parameters of 24W LED auto lighting offroad truck driving lights work light

ITEMParameter
LED Lumen2200lm
Output Lumen2008lm
CCT5700K-6300K
Light angle19degree
Rated voltageDC12v,DC24V
Input voltage rangeDC9-24V,DC18-28V
Rated power24W
Rated current24V 1.0A/12V 2.0A
DrivenConstant current
ConnectorOutside
AccessorisesM14 Bolt
Mechanical shocks60G
Vibration test15.3 Grms 24-2000Hz
Lens materialPC
Housing materialAluminum
weight840g
IPIP68
Salt spray test

ISO9227 240H

ISO13766

ISO14982

ISO7637-2

CISPR 25 CLASS 3

Operating temperature-40℃ ~ +85℃
