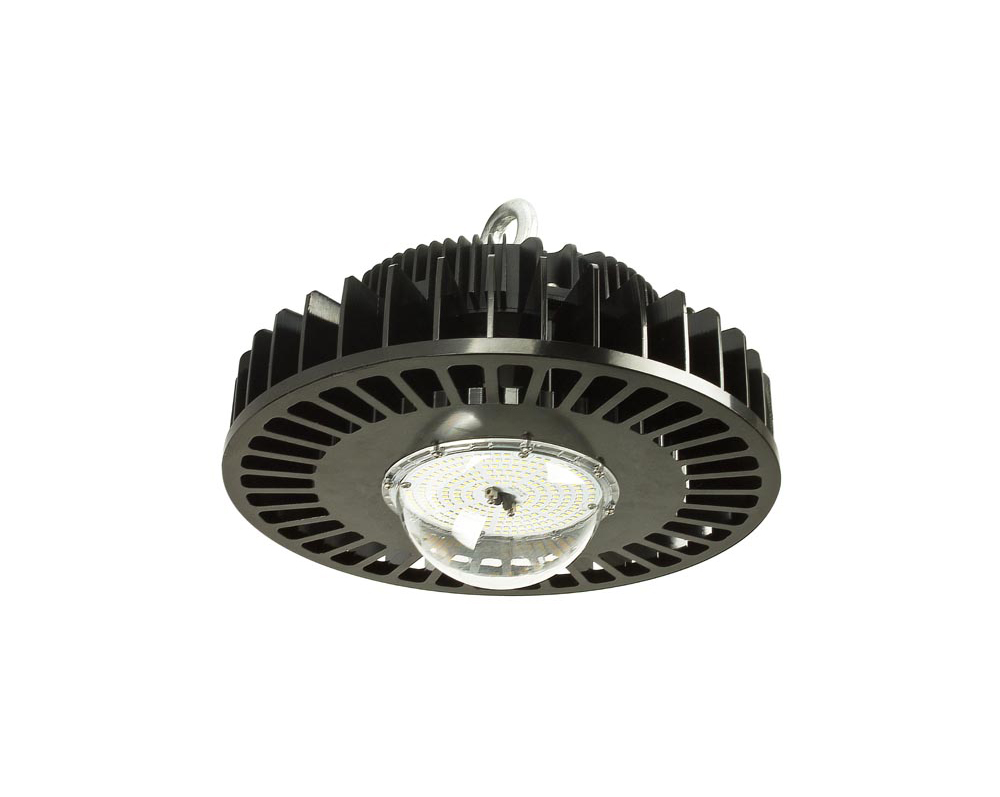

HL10B-200W aluminum high power waterproof led high bay light
-
Model Number: HL10B-200W
Light Source: LED
Item Type:High Bay Lights
LED Light Source:Philips
Warranty(Years):2
Input Voltage(V):AC90-305V
Lamp Power(W): 100
Lamp Luminous Efficiency(lm/w): 110
Lamp Body Material:Aluminum
IP Rating:IP65
Certification: CE, EMC, LVD
best working temperature:0-30
Beam angle: 60/90/120
Application:For workshop, factory, storage warehouse
longlife span: 50000hrs
200w aluminum high power waterproof led high bay light
Product Description
1. High light efficiency >110lm/W
2. High Quality Philips LEDs with low lumen decay
3. Tj<80℃, PF ≥ 0.90
4. Mercury- and lead free, environment friendly,
5. Easy installation and low maintenance,
6. Surface of fixture especially treated with anti-
static, thermostable, anti-corrosive paint,
7. Integrated Meanwell driver, excellent heat dissipation ability and stable
quality.
8.Housing material: Forging aluminum, the best material for heat dissipation.
9.Long lifespan up to 50000hrs
Technical specifications of 200w aluminum high power waterproof led high bay light :
|
Model |
LED Type |
LED Q'ty |
Color |
Voltage |
Beam Angle |
Wattage |
Lumen (lm) |
CRI (Ra) |
PF |
|
HL10B-200W |
Philips3030 |
238 |
NW |
AC90-305V |
125° |
200W |
21800 |
70 |
≥0.9 |
|
Philips3030 |
238 |
NW |
AC90-305V |
60° |
200W |
19600 |
70 |
≥0.9 |
|
|
Philips3030 |
238 |
NW |
AC90-305V |
90° |
200W |
16200 |
70 |
≥0.9 |
|
|
Philips3030 |
238 |
NW |
AC90-305V |
120° |
200W |
21000 |
70 |
≥0.9 |
|
|
Philips3030 |
238 |
DW |
AC90-305V |
125° |
200W |
21200 |
70 |
≥0.9 |
|
|
Philips3030 |
238 |
DW |
AC90-305V |
60° |
200W |
19200 |
70 |
≥0.9 |
|
|
Philips3030 |
238 |
DW |
AC90-305V |
90° |
200W |
20500 |
70 |
≥0.9 |
|
|
Philips3030 |
238 |
DW |
AC90-305V |
120° |
200W |
20600 |
70 |
≥0.9 |

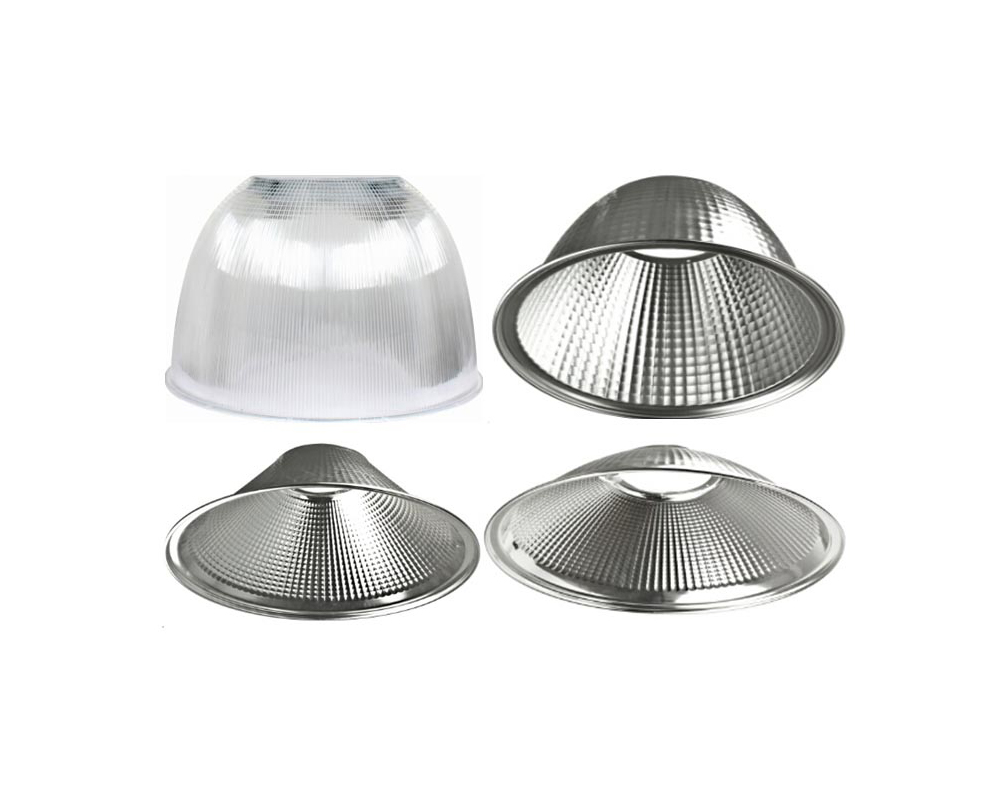

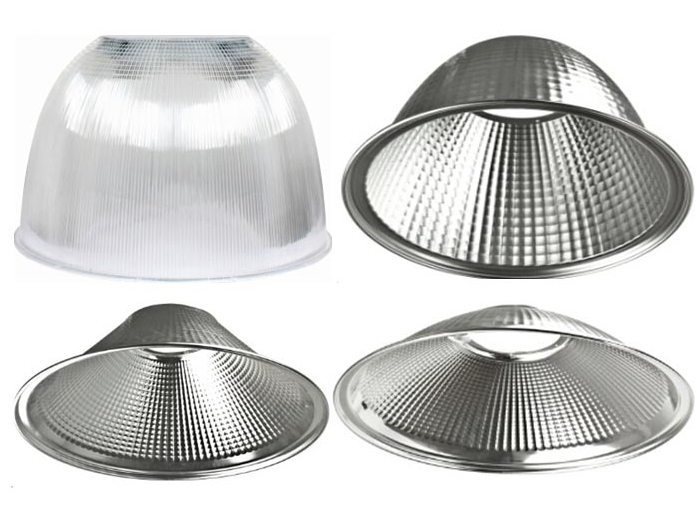

60°/90°/120° reflector for optional
Application of long lifetime water proof led high bay light
1. Project lighting, IP65.
2. For workshop, factory, storage warehouse, exhibition center, gas station, toll station, and other places.
3. Replacement for sodium lamp

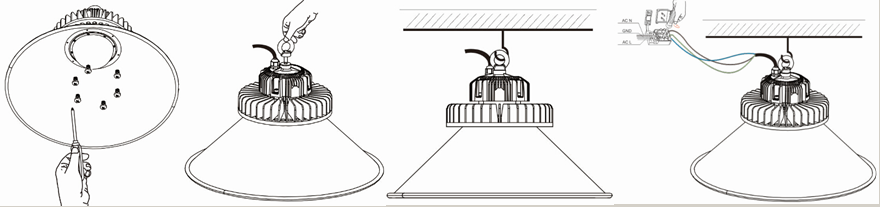

Installation specifications:
Application Notice:
1. Operating temperature:-20 to 45℃
2. Storage temperature:-25 to 55℃
3. Optimal environment temperature:0 to 30℃
Light distribution Curve:

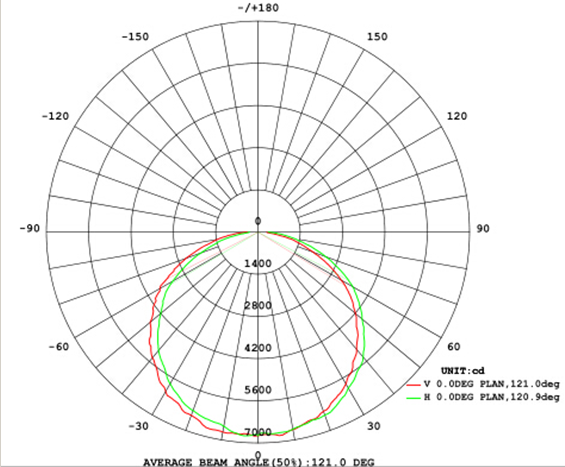

Without reflector

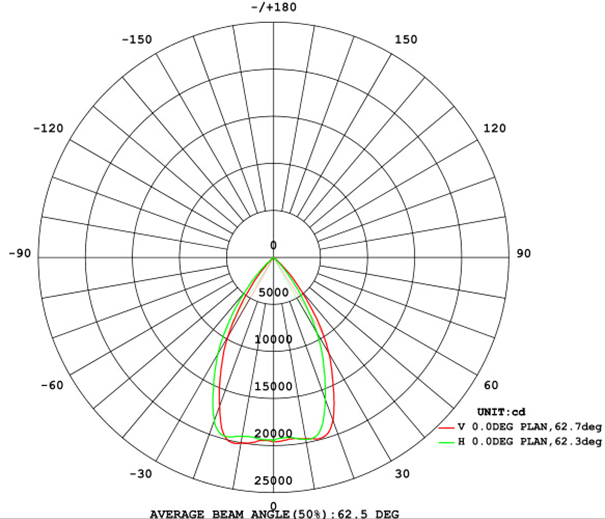

60° reflector

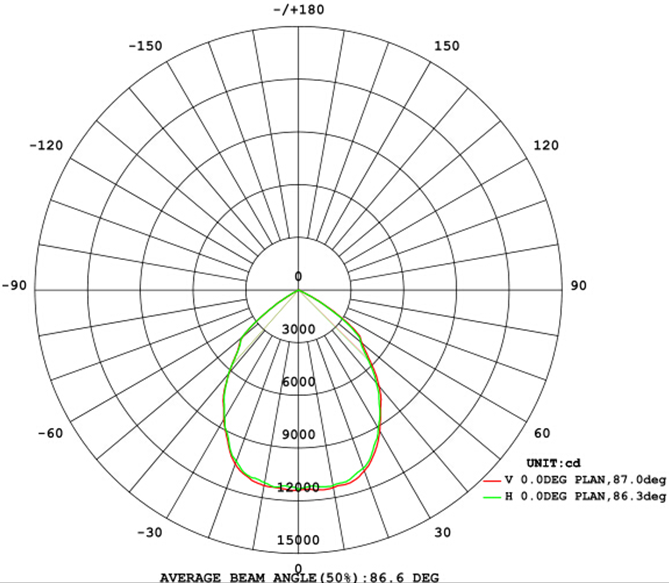

90° reflector

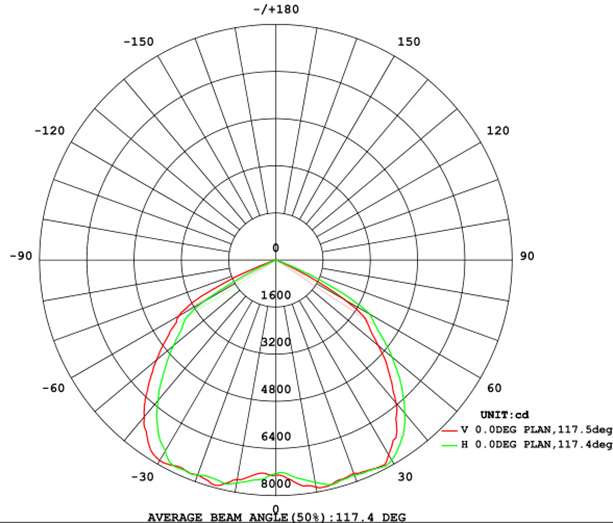

120° reflector
Packaging & Shipping
package of long lifetime water proof led high bay light
|
Packing details |
Fixture |
60° AL Reflector |
90° AL Reflector |
120° AL Reflector |
60° PC Reflector |
|
|
Net weight |
3.2kgs |
0.38 kgs |
0.55 kgs |
0.68 kgs |
0.55 kgs |
|
|
Outer carton(mm) |
560*285*280 |
415*415*340 |
570*570*235 |
590*590*210 |
420*420*600 |
|
|
Q'ty per ctn |
2pcs |
8pcs |
8pcs |
8pcs |
10pcs |
|
|
G.W per ctn |
8.5kgs |
4.1kg |
5.8kg |
6.3kg |
7.5kg |
|
Our Services
1.Replying your inquiry within 24 hours
2.Consultation from professional and experienced staff
3.Providing 1-3 years warranty
4.Solid pakage & fast delivery & newly tracking mews
5.OEM is welcome. Providing customized service.
