SPC420H2-420w LED Shopping mall lighting outdoor led floodlight
-
Model Number: SPC420H2-420W
Item Type:Flood Lights
Input Voltage(V):AC85-265V
Lamp Power(W): 420
Lamp Luminous Flux(lm): 42000
Lamp Luminous Efficiency(lm/w):100
CRI (Ra>): 80
Working Temperature(℃):-20 - 45
Working Lifetime(Hour): 100000
IP Rating: IP65
Certification: CE, ETL, RoHS, SAA, UL
Input Voltage: AC85-265V
light source: Bridgelux COB
beam angle: 90 degree
LED driver: Meanwell
CCT: CW,DW,NW,WW
warranty: 3 years
IP65 420w LED Shopping mall lighting outdoor led floodlight details spec:
LED Outdoor floodlights light,6pcs 70W bridgelux led , Totally 420w
Aluminum body with polyester coated, toughened-glass lens, initial output lumens: 42000 lumens,
Input voltage: AC85V-265V.
Packing size: 645x645x225mm , 1pcs/ctn, G.W.: 24KGS
Waterproof grade: IP65
Heat-resistance, corrosion-resistance, explosion-proof, waterproof
Wattanty: 3 years
Specifications of outdoor led floodlight :
|
Power (W) |
420W |
|
Frequency (V) |
50Hz-60Hz |
|
Operating Voltage(V) |
AC85-265V |
|
LED Lighting Efficiency(Lm/W): |
>100LM/W |
|
Power Supply Efficiency (%) |
95% |
|
Power Factor |
>0.95 |
|
Color Rendering Index(Ra): |
>80 |
|
Color Temperature(K) |
CCT: CW:5500-6500K, DW:4700-5300K, NW:4000-4500K, WW:3000-3500K. |
|
Light Body & Lampshade Material |
Aluminum House & toughened glass |
|
Life Span(hrs) |
50000 |
|
IP Rating(IP): |
IP65 |
|
Beam angle(degree) |
90 |
Competitive Advantage:
1. Adopt high light efficiency as light source,
>100lm/W
2. Stable and low decay.
3. TJ<85℃.
4. Lifespan upto 50000hrs.
5. Engery saving, excellent heat disspation.
6. ECO-friendly, mercury free,lead free.
7. Low maintain cost.
8. PF > 0.95.
9. Surface of fixture treated with
anti-static paint, and corrosionresistant.
Applications:
1. Indoor & half-outdoor project lighting; IP65
2. Widely use for skyscraper, amusement building, shopping mall, bridge, wharf, tower, for billboard and other's outdoor application.

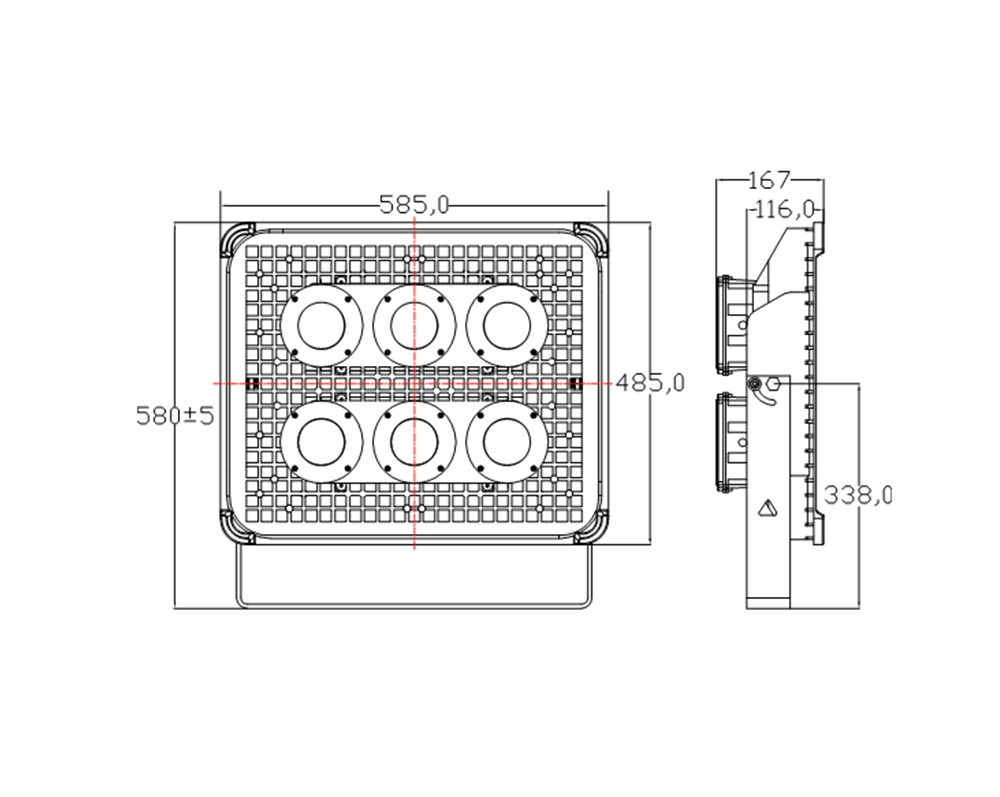

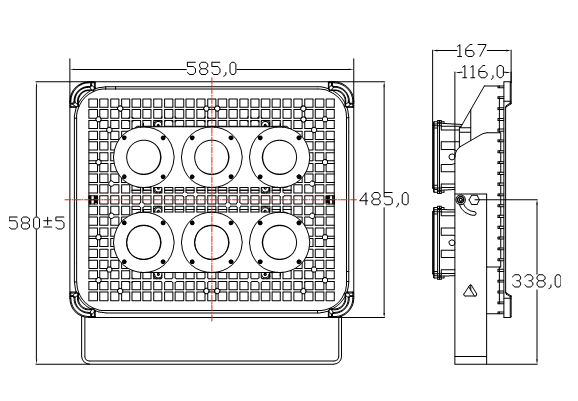

Physical dimension :

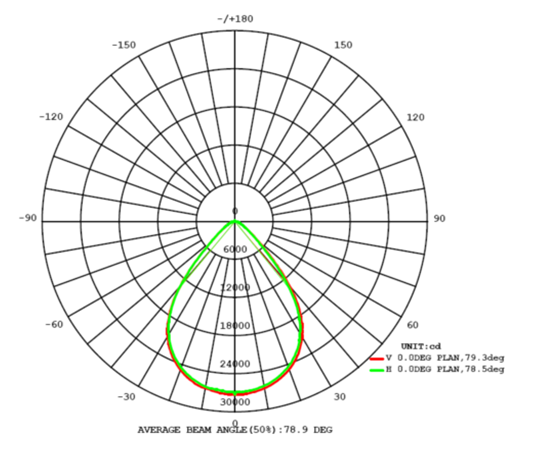

Light distribution Curve:
Packaging & Shipping
IP65 420w LED Shopping mall lighting outdoor led floodlight:
1. Net weight:21.7 kgs
2. Outer carton size: 645x645x225mm
3. Q'ty per ctn:1 pcs
4. G.W per ctn:24 kgs
Our Services
We can provide customer good quality,quick delivery,good service.
1. For all your inquires, we will reply you in detail within 24 hours.
2. OEM/ODM services. Print your own logo on product, can customize retail box packing and other things.
3. We have sales who have engage in LED many years to provide custom-made the sales solution.
4. We have engineers who has the experience of projects to solve the problems
Company Information
GOLDEN
FUTURE ENTERPRISE HK LTD. is a specialist on the design and selling of LED industry lighting for
more than 10 years, especially for miner lamp, explosion proof lighting
fixture, LED street light and other LED commercial lightings, and etc.
We have more than 10 advanced engineers with
many years design experience for the electronic design, structure design and
optics design.
With many years selling, We have good
reputation for high quality, good service and punctual delivery time from all
our customers all over the world.
FAQ
Q1: When will the products be deliveried if the order has been placed?
it will take about 25 days for the customised items.
Q2:Do you have any sales sevivce?
Yes, we do 1 Year Warranty for any of our products.
Q3:What Certificates do you have?
Our products have been tested by CE and RoHS Sandards which is complied with the European Directive.
Q4:How to pay?
We accept T/T, Western union and Paypal .
