class1 division 2 explosion proof led marine dock light

Model Number: DL601F

LED Light Source: CREE

Input Voltage(V): AC85-265V

Lamp Power(W): 25

Lamp Luminous Flux(lm):3400

Working Lifetime(Hour): 50000

IP Rating: IP67

Ex mark: Exd IIC T6

beam angle: 60 or 120

Housing: aluminium alloy

Certificatiion: UL,CE,ROHS

Product Details

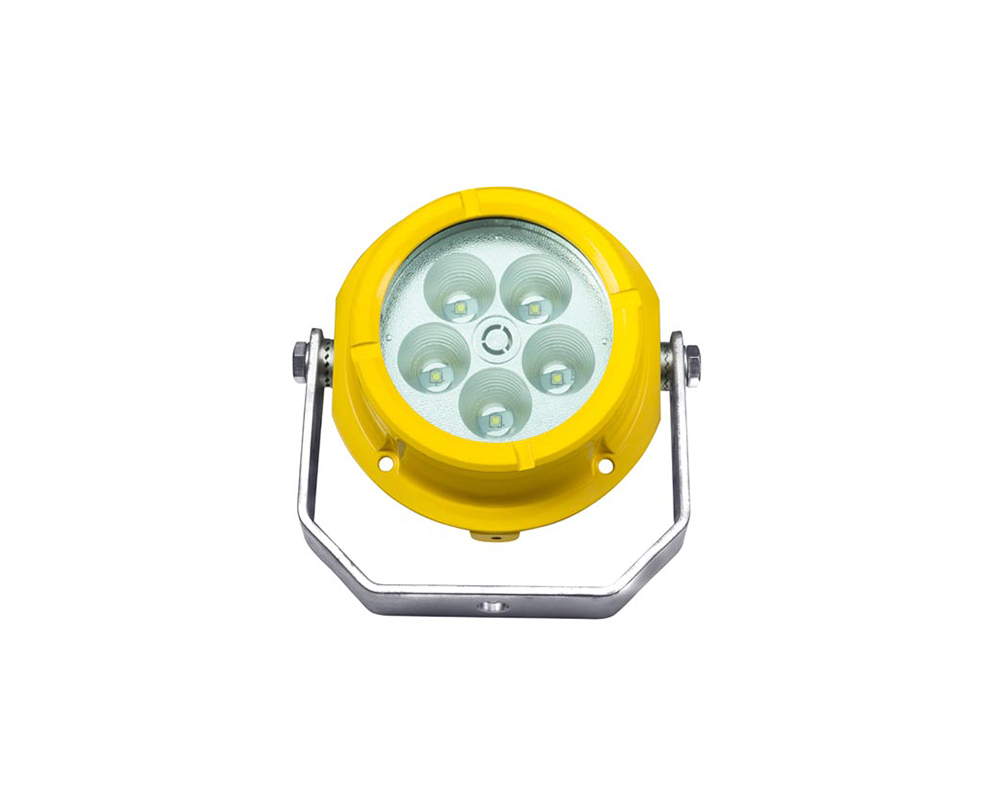

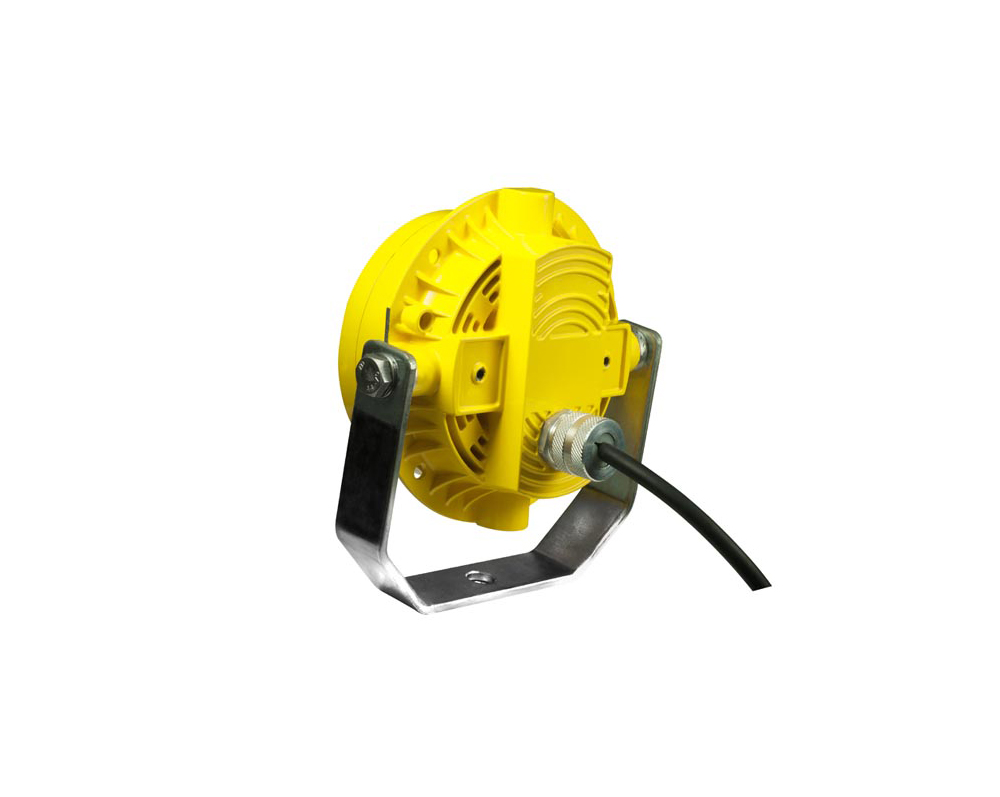

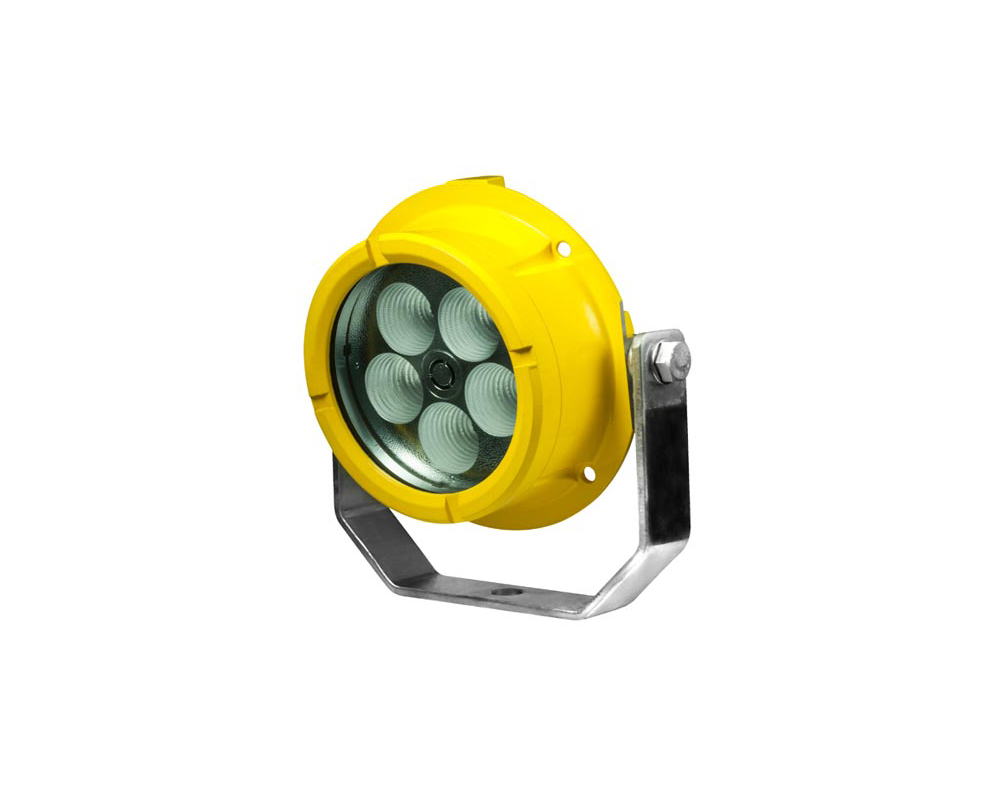

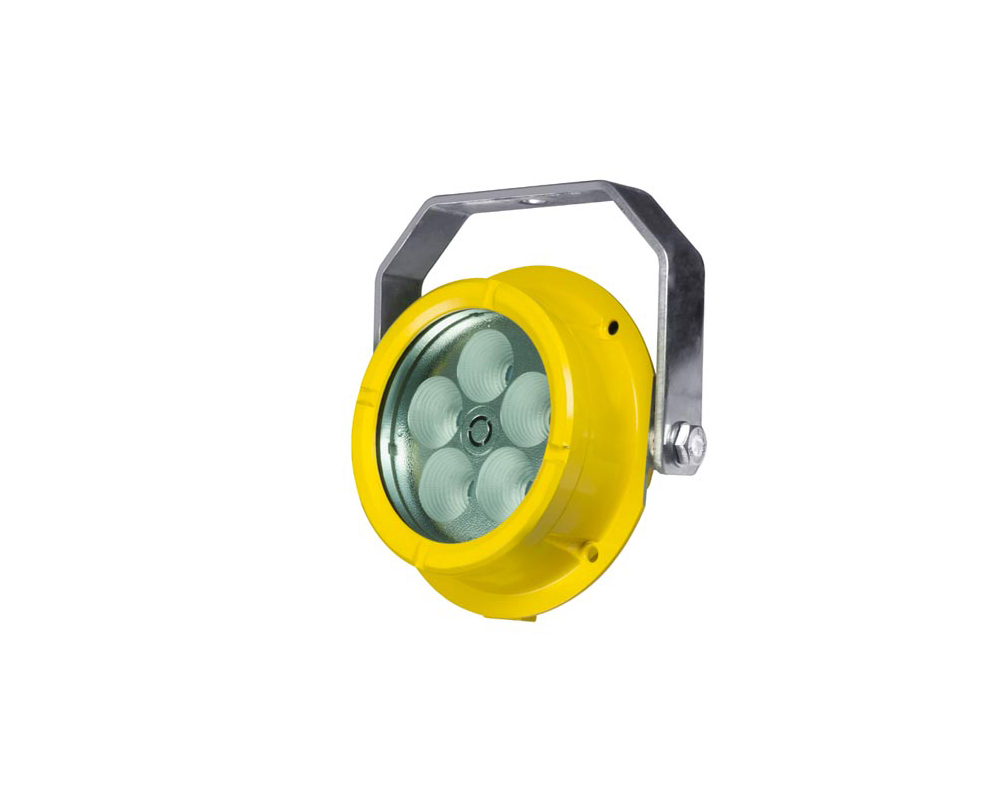

class1 division 2 explosion proof led marine dock light


Specification of led marine dock light :

1. Housing Construction

Low-copper content cast aluminum ,Safety yellow powder coat


2. Light Source

Cree LED

50,000 hours average rated life

60 ° or 120° beam angle


3. Lens

Heat-treated glass (GL)

Impact-resistant clear polycarbonate (CP)

Impact-resistant diffuse polycarbonate (OP)


4. Compliances

Watt: 25W

IP class: IP67

Ex-mark: Exd IIC T6

Lumens :2500lumens


Our Services

Being focused on LED products, provide good quality, quick delivery, AQ discount for all customers.

1. For all your inquires, we will reply you in detail within 24 hours.

2. OEM/ODM services. Print your own logo on product, can customize retail box packing and other things.

3. We have sales who have engage in LED many years to provide custom-made the sales solution.

4. We have engineers who has the experience of projects to solve the problems of technical.

5. We have very experienced R&D engineers and we have strong ability to do ODM projects.

Looking forward to cooperating with you.


FAQ

Q: 1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q: 2. What is the lead time?

A:Sample needs 7-10days, mass production time needs 25-30days.

Q: 3. Do you have any MOQ limit?

A: Our MOQ EXW is 1 pc for sample; MOQ FOB is 200pcs.(Depends on different type battery/battery pack)

Q: 4. How do you ship the goods and how long does it take arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive.

Q: 5. How to proceed the order when customer order products?

A: Inquiry-Confirmation-Send Proforma Invoice-Customer make payment-Arrange production-ship the goods to customers-Confirmation-Finish.

Q: 6. How to make this payment?

A: TT, Paypal, Western Union.

Q: 7. Do you offer guarantee for the products?

A: Yes, we offer one year guarantee for the products.

Q: 8. Do you accept OEM/ODM?

A: Yes, it’s available.

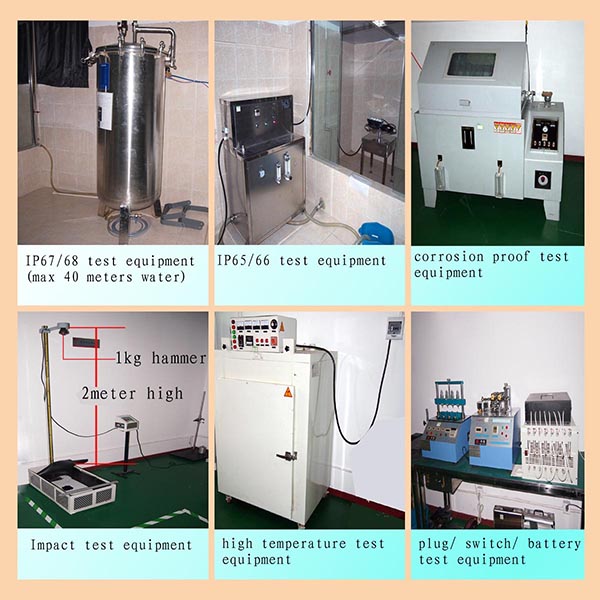

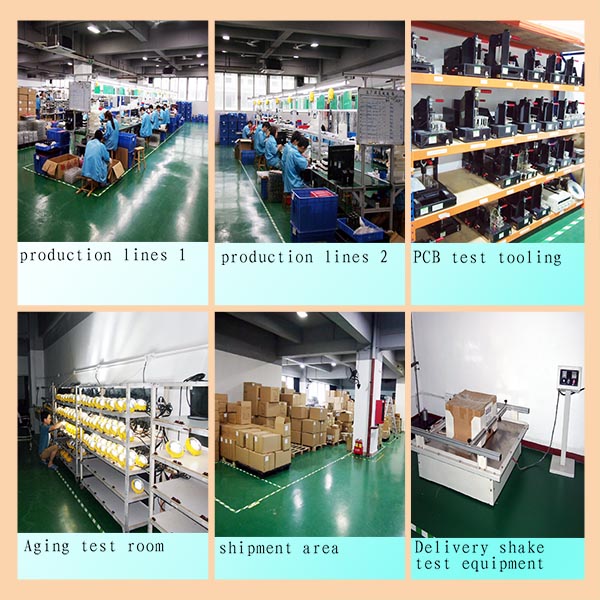

WORK SHOP

Parameters

ItemsUnitValue
LuminaryLED PowerW25
Luminous Fluxlumens2500
Life spanH100, 000
Rated VoltageV

AC 85~265

DC 24-36

Dimensioncm16×8.5
unit Weightkg2.26
Connecting wiremm6~8
Inlet’s threadG3/4
Corrosion protection ClassificationWF2
Insulation ClassificationI
IP ClassificationIp67
EX MarkExd IIC T6
Certificate of Conformity Serial No.CNEx07.1999
HousingLow-copper content aluminum housing
Full setlamp+wire+gift box

Application

Application of explosion proof led marine dock light:

Class1 division 2 explosion proof led marine dock light used for dock,oil plant,offshore oil plant,chemical plant,flammable and explosion zone II ,restriced distric and heavy industry machining equipment distric,oil store and gas station,drilling rig area and the other dangerous seacoast.
